2.5 Coilovers | DCA Remote Reservoir
Dirt King
2.5 Coilovers | DCA Remote Reservoir
Check fitment before ordering
Match the year, make, model, trim and engine in the product details. Review mounting requirements and vehicle modifications. Ask us about this part.
Eligible returns within 30 days of receipt. Items must be unused, with tags and original packaging. Contact Lee Mods before sending anything back. Lee Mods pays return shipping for eligible U.S. returns; no restocking fee. See Returns & Exchanges for full conditions.
Description
The Dirt King coilovers provide 3" of front lift and are designed to pair with our multi-rate rear springs for improved handling and control. Unlike most manufacturers, we began with spring tuning—optimizing front and rear spring rates to fine-tune the vehicle's balance and roll behavior before introducing any shock damping. The result is a more refined suspension system with consistent, predictable handling both on and off-road.
The Dirt King 2.5 Dual Compression Adjuster (DCA) Series coilovers will take your Toyota Tundra's off-road capability to the next level without compromising on-road comfort. Equipped with both high-speed and low-speed compression adjusters, these coilovers provide the flexibility to fine-tune ride quality for any terrain or driving style. They deliver increased wheel travel, greater articulation, and improved ground clearance while maintaining excellent on-road comfort.
Ride height is adjustable up to 3.5" using the included spanner wrench for preload adjustments. Designed for serious off-road use and comfortable daily driving, these shocks reflect the quality, control, and reliability that define Dirt King products.
Specifications
- 2.5" hard-anodized 6061 aluminum bodies
- Dual compression adjusters with 10 adjustments for each knob
- Induction-hardened ¾" shafts
- 3" lift out of the box | Aftermarket UCA required
- Adjustable to provide up to 3.5" of lift
What's Included

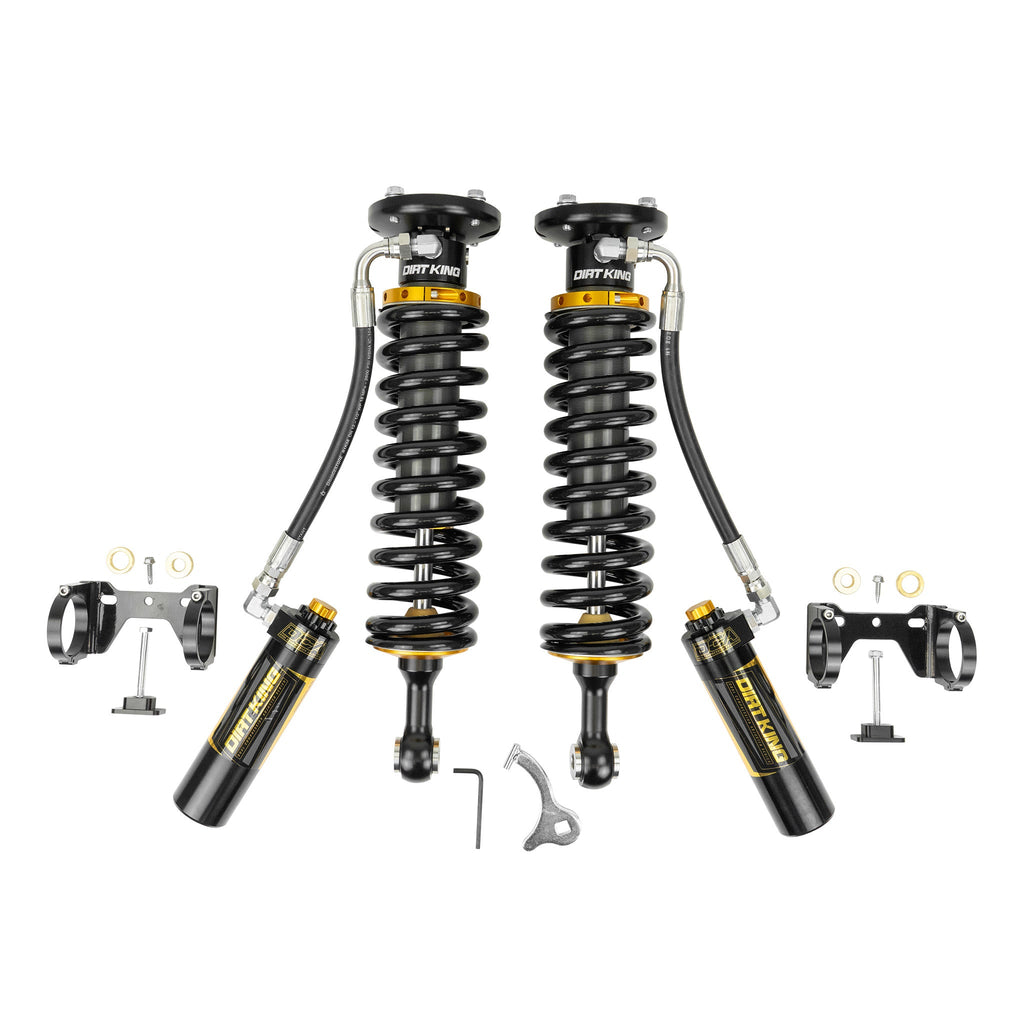

- (2) 2.5 DCA coilover shocks with remote reservoirs
- (2) Reservoir mounts
- (1) Spanner wrench
- (4) Sway bar endlink spacers
- All necessary mounting hardware
Features
- 3" Front Lift – Pairs with multi-rate rear springs for improved handling & control
- Increased Suspension Travel – Improved off-road performance and control
- Vehicle-Specific Tuning – Balanced handling and ride comfort
- 6061 Aluminum Bodies – Cooler operation and corrosion resistance

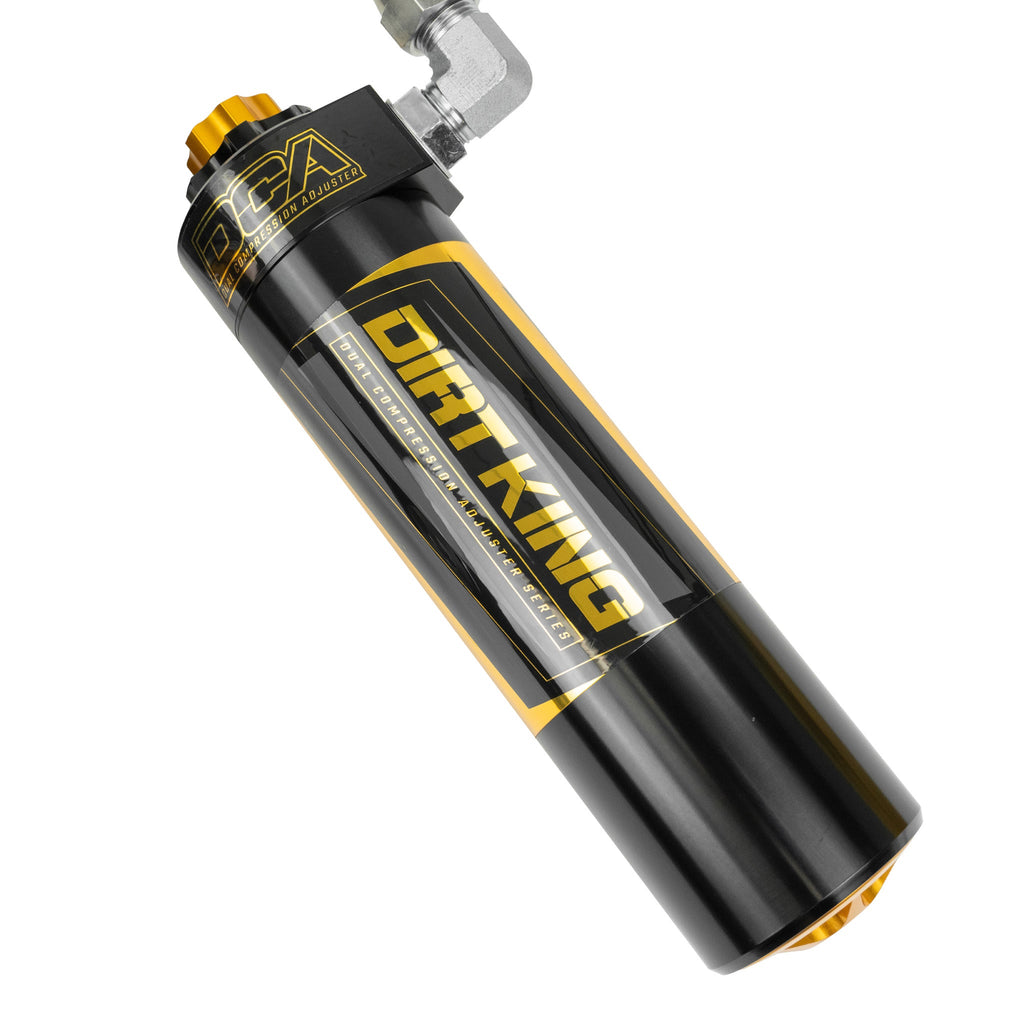

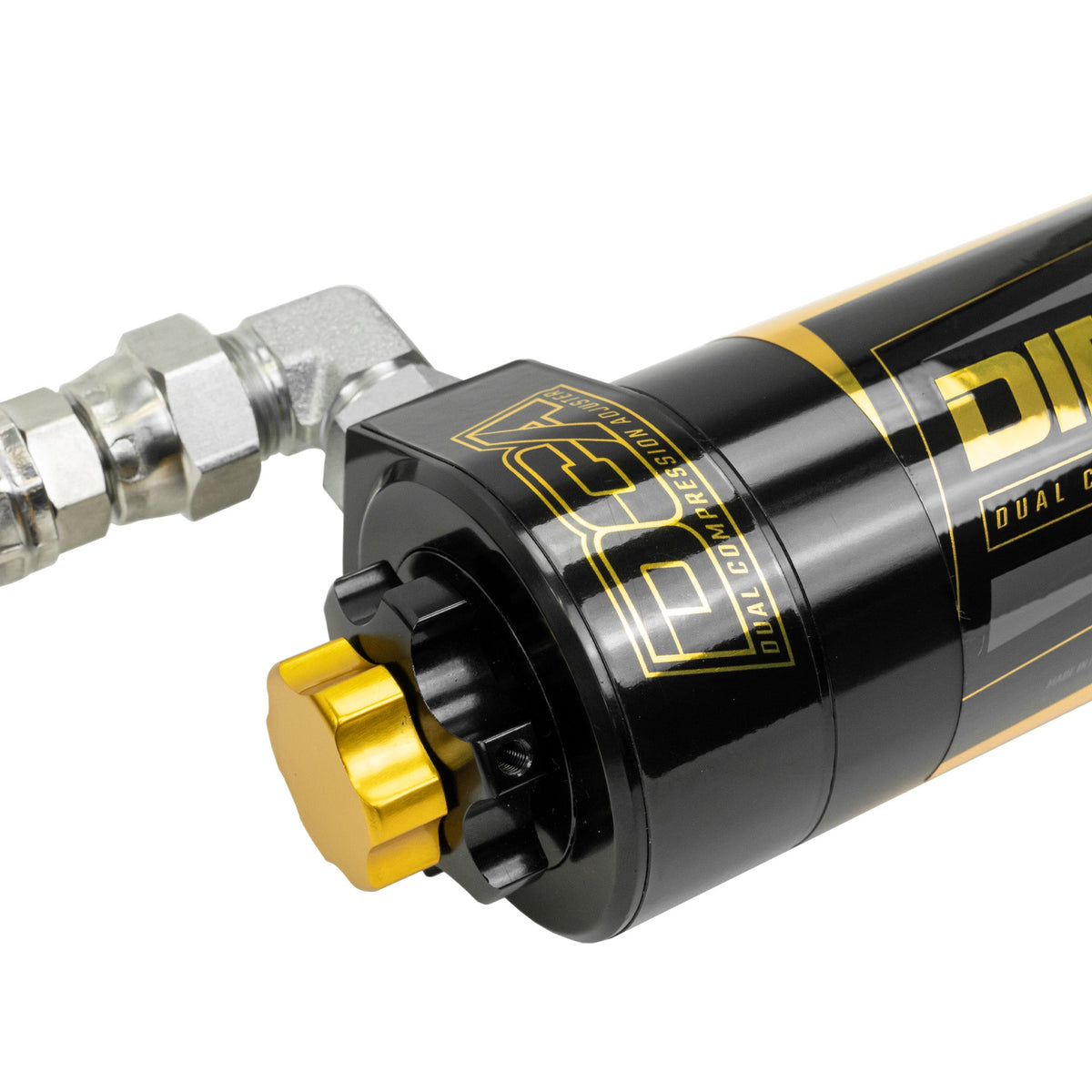

- Remote Reservoirs – With high- and low-speed compression adjusters
- ¾" Induction-Hardened Shafts – Reduces seal drag for smoother operation
- Direct Bolt-On Install – Uses factory mounting points
- Cold Wound Alloy Springs – Maintains consistent ride height and rate
- Maxima High-Temp Oil – Low-friction, performance-grade oil blend
- Adjustable Ride Height – Up to 3.5" with included spanner wrench
- Fully Rebuildable – All service parts available through Dirt King
Instructions
Compatibility
2022–2026 Toyota Tundra 2WD / 4WD
*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
*All Dirt King shocks are backed by a comprehensive one year warranty.
