Description

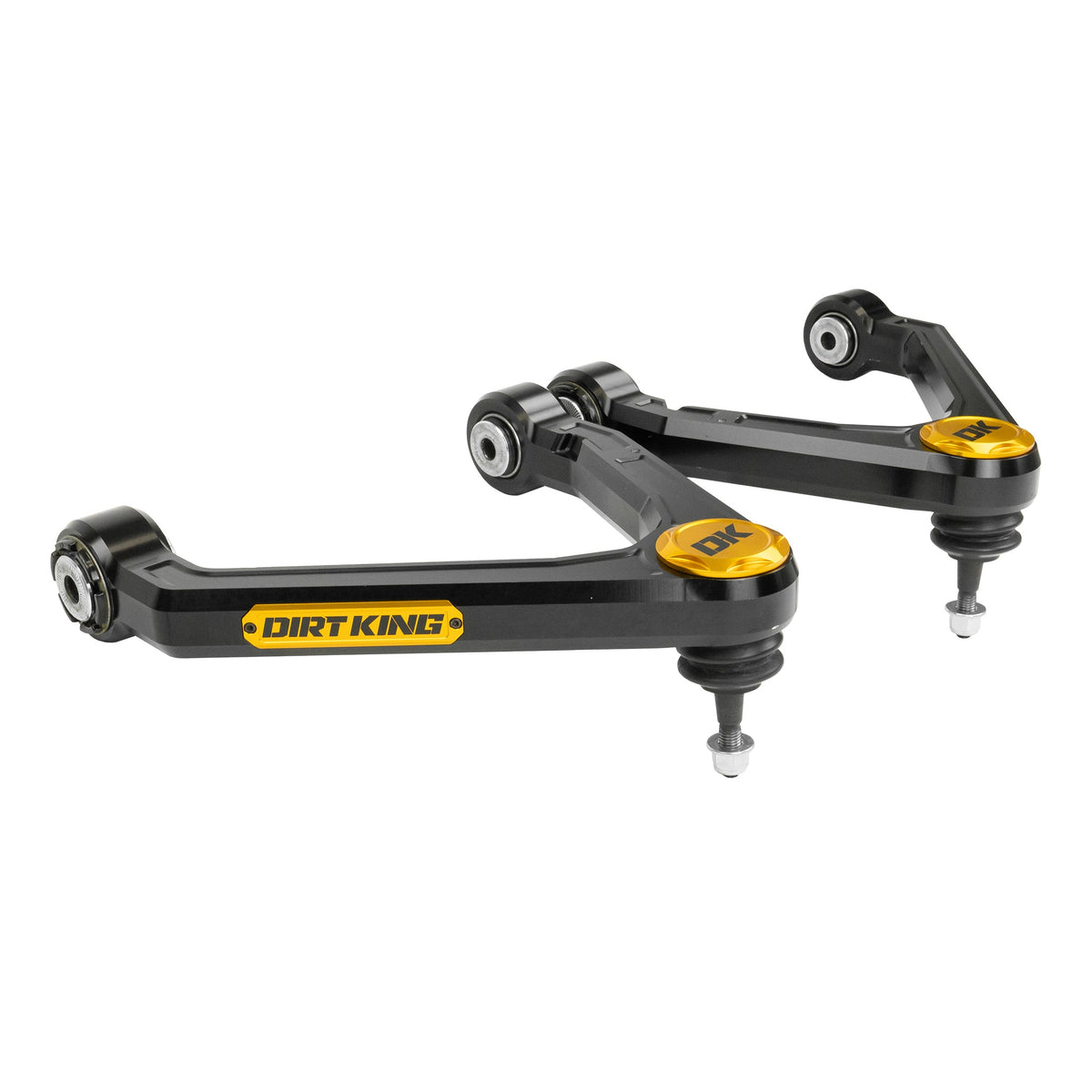

Dirt King Billet Upper Control Arms – Engineered for Strength, Style, and Silence

The Dirt King Billet Upper Control Arms are precision-machined from 6061 aluminum, offering exceptional strength and a refined appearance. Designed to optimize suspension geometry, these arms allow for increased front lift and suspension travel when paired with Dirt King shocks. Factory control arms often compromise geometry and structural integrity due to excessive articulation at stock joints, but Dirt King arms solve this with improved caster settings and re-engineered pivot angles for better handling and articulation.

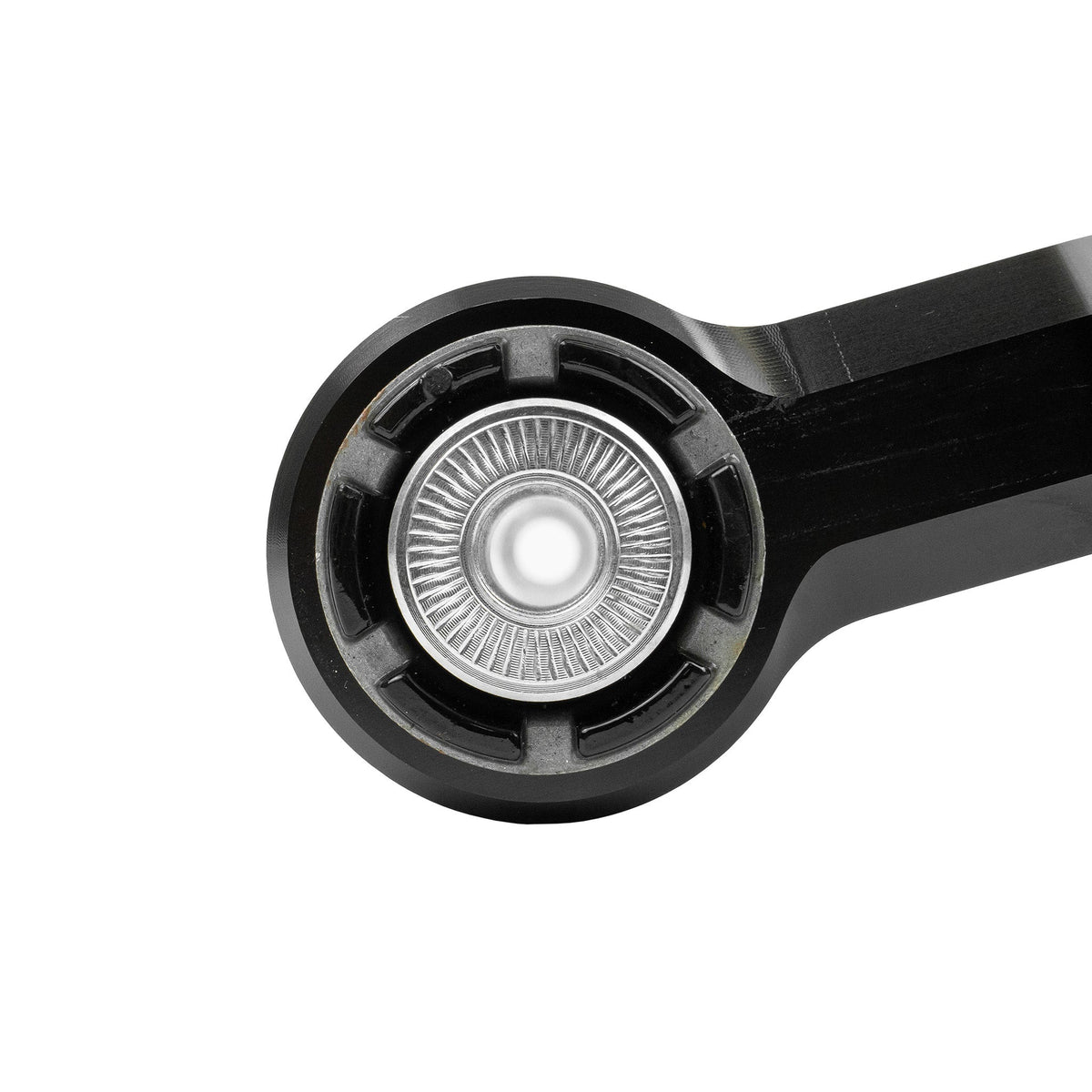

A key feature of the billet arms is the inner pivot system. The maintenance-free Probearing SilentSpin bushings provide superior ride comfort, with a polyurethane outer layer that dampens road noise and a self-lubricating composite core for smooth, quiet operation. These allow for optimal on-road and off-road performance, delivering excellent handling with no compromises.

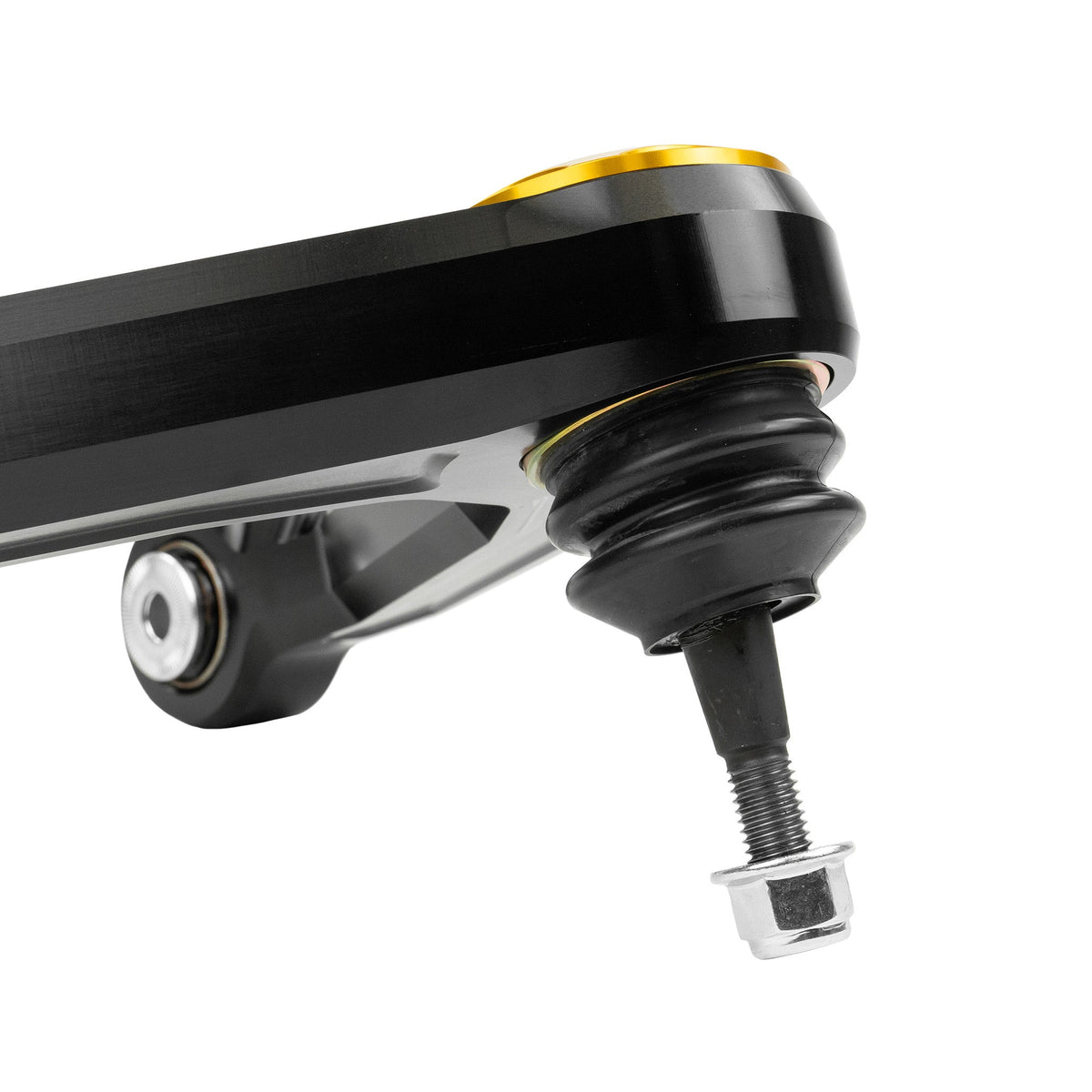

These are equipped with heavy-duty Probearing ball joints for long-lasting durability in harsh environments. These billet upper control arms are built for lasting performance and easy installation, making them an excellent upgrade for any vehicle.

Specifications

  • Amount of Lift: Allows for 0–3” of lift
  • Track Width: Stock
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 17”
  • Control Arm Material: 6061 aluminum
  • Bushings: Probearing SilentSpin (maintenance-free, self-lubricating)
  • Ball Joints: Heavy-duty Probearing
  • Camber/Caster Adjustability: Yes
  • Rebuildable: Yes – All components are rebuildable or replaceable
  • Warranty: Limited lifetime on arms, 1-year on ball joints and bushings

Wheel Travel / Lift
The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer maximum down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install with coil spacers paired with extended-length aftermarket shocks.

What's Included

  • 2 Billet upper control arms (left and right)
  • Heavy-duty Probearing ball joints (pre-installed)
  • Probearing SilentSpin bushings
  • Detailed installation instructions

Features

  • CAD Designed: Engineered for proper suspension geometry and durability
  • 6061 Billet Aluminum: Precision-machined for high strength and a premium look
  • Improved Caster: Corrected settings for better alignment and handling
  • Re-Engineered Pivot Angles: Allows for increased articulation
  • SilentSpin Bushings: Maintenance-free, quiet, and smooth performance
  • Heavy-Duty Ball Joints: Probearing joints provide long-lasting performance
  • Fully Rebuildable: All wear components are serviceable and replaceable
  • Compatible With Dirt King Shocks: Designed to unlock maximum travel and lift

Instructions

Compatibility

2007–2018 Chevy Silverado 1500 2WD / 4WD
2007–2018 GMC Sierra 1500 2WD / 4WD

*This product is designed to work with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
