Injection Fob IF009 (2018-2019 Tundra / 2016-2023 Tacoma Manual/SR5) - CEMENT
AJT DESIGN
Injection Fob IF009 (2018-2019 Tundra / 2016-2023 Tacoma Manual/SR5) - CEMENT
Check fitment before ordering
Match the year, make, model, trim and engine in the product details. Review mounting requirements and vehicle modifications. Ask us about this part.
Eligible returns within 30 days of receipt. Items must be unused, with tags and original packaging. Contact Lee Mods before sending anything back. Lee Mods pays return shipping for eligible U.S. returns; no restocking fee. See Returns & Exchanges for full conditions.
PLEASE WATCH INSTRUCTION VIDEOS BEFORE PURCHASING!

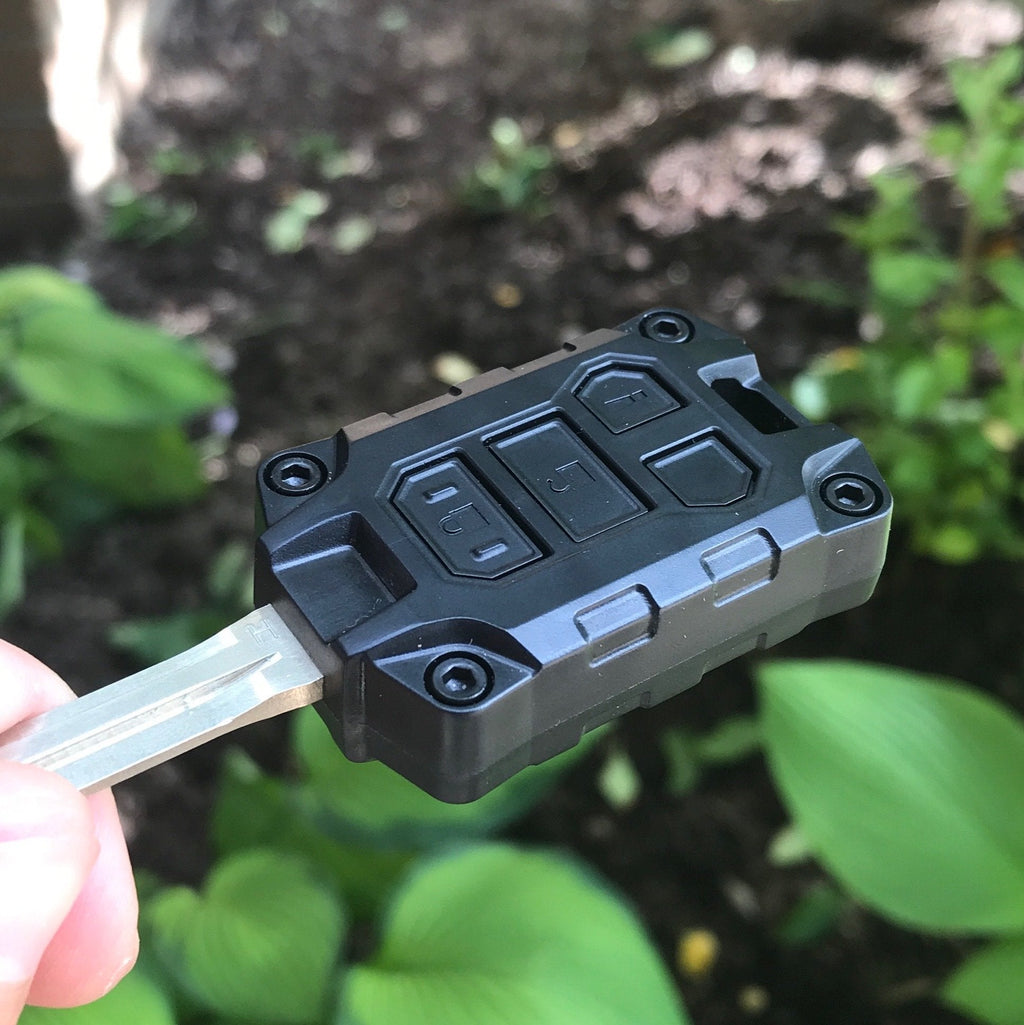

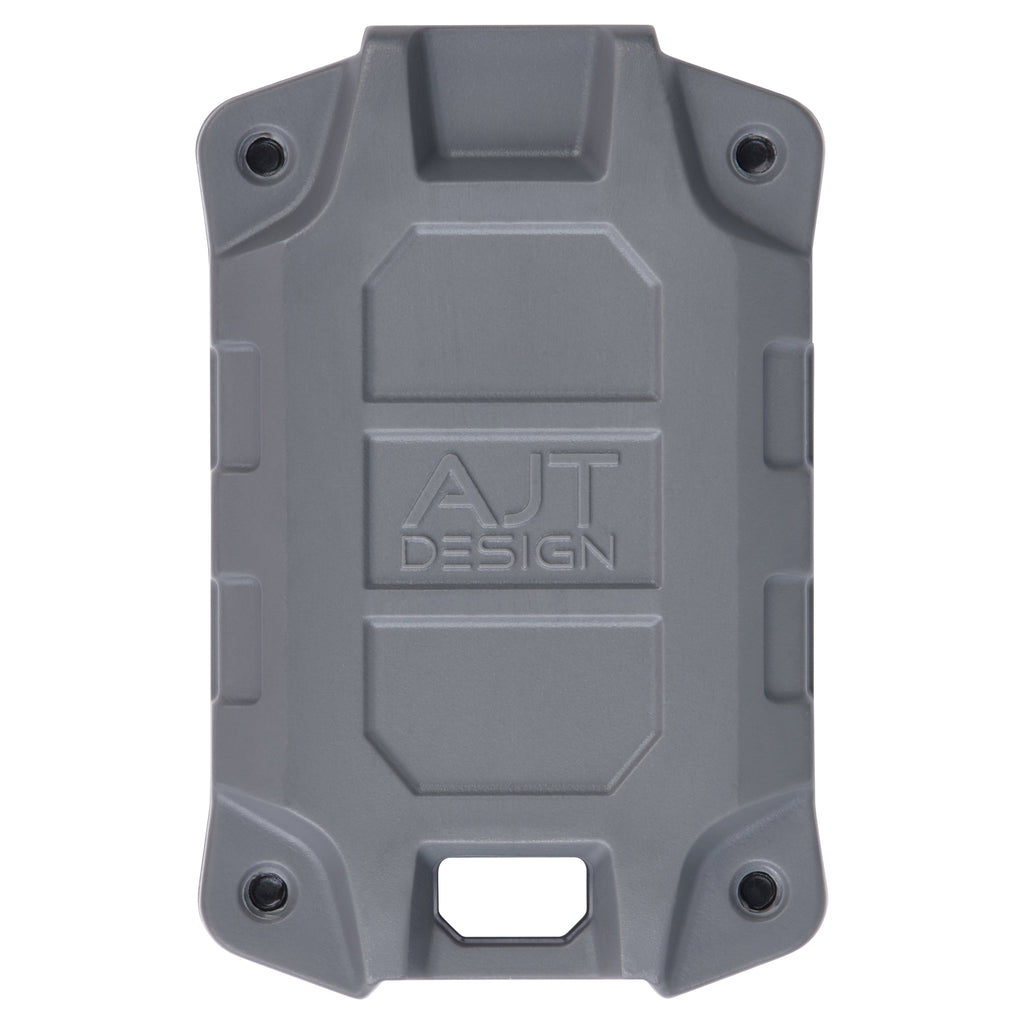

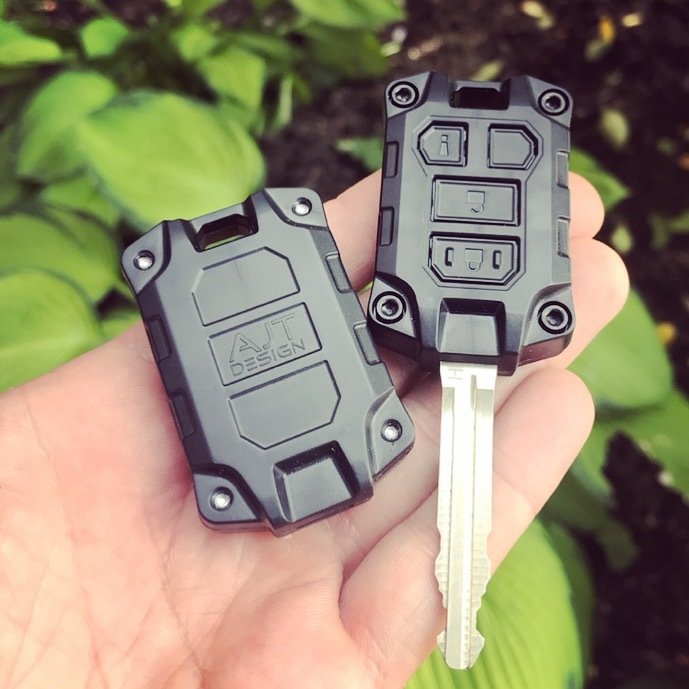

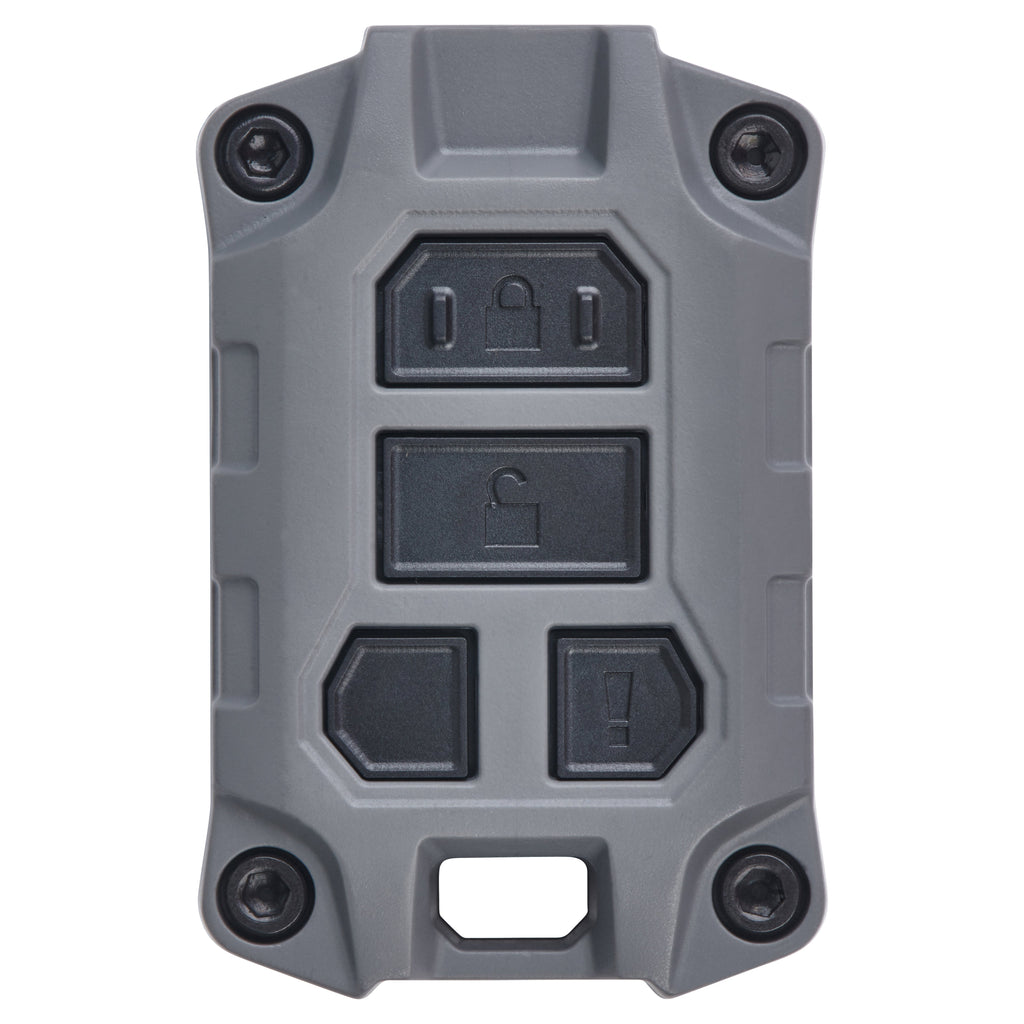

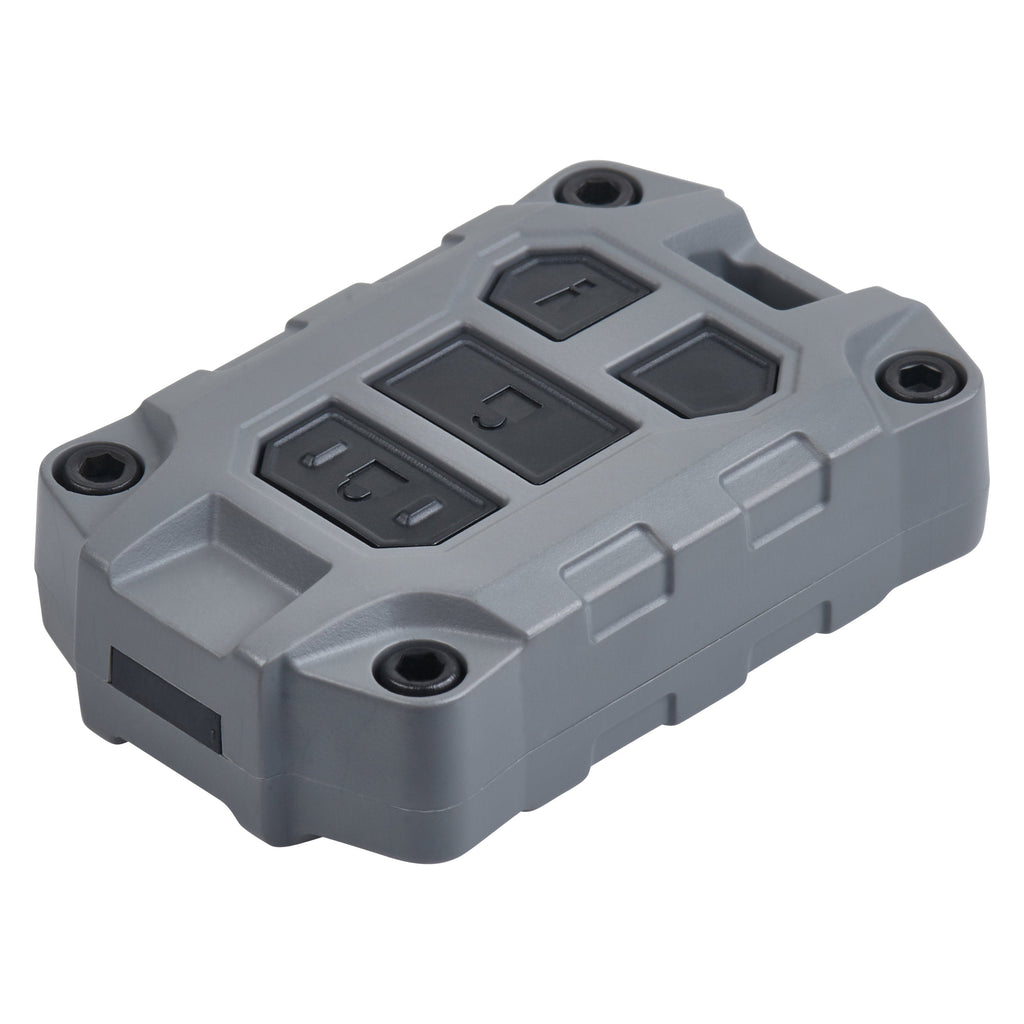

The Injection Fob is a two piece plastic case that replaces the factory case that comes with the vehicle. Injection molded of high strength and impact resistant ABS plastic. Instead of an annular snap fit, this design bolts together with socket head cap screws for a more rugged and straightforward approach. Assembly requires 3/32" allen key (included). Made in USA.

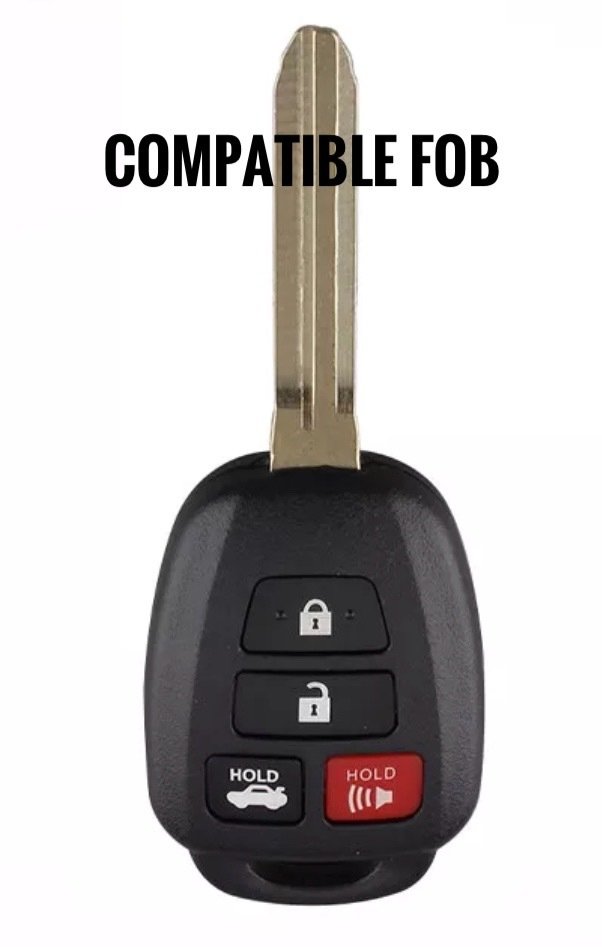

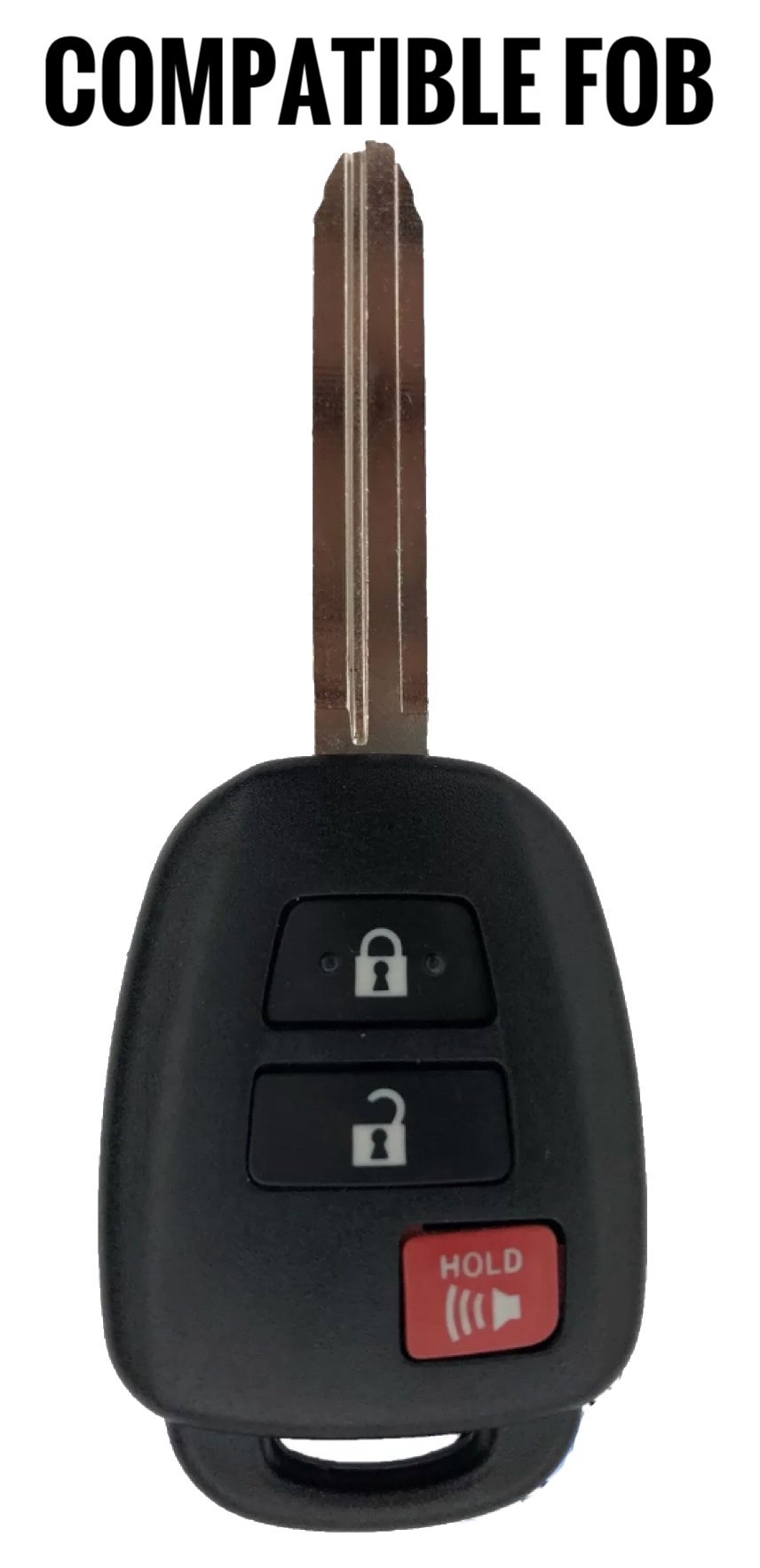

Applications: (please verify your fob looks like the one in our instruction video/compatible photos)
- 2018-19 Tundra
- 2016+ Tacoma Manual/SR5/Base (without push button ignition)
- Various Toyota H key
DO NOT USE THREADLOCKER SUCH AS LOCTITE ON THIS PRODUCT!
Existing key blade, electronics, battery, transponder chip are reused (not included with purchase) and packaged into the new case, no reprogramming. Re cutting a key is not necessary, however the OEM case must be destroyed to extract the key, as the key is molded into it. In most cases the key will pull out easily, though in some instances it must be cut out. If it is desired to retain the original case/key, an additional OEM shell/key only may be purchased and that key can be cut. Alternatively, the integrated key blade may be discarded altogether and a separate key can be used. This method requires the use of the OEM valet key or purchase of a Toyota key with the H chip (Toyota P/N 89785-0D170), this key must be cut and reprogrammed at the dealer or locksmith. In some cases the transponder is easily removed, though in most cases it will be glued and require cutting the case and/or heat for removal, this can be somewhat difficult. If care is not used during removal, the transponder may become damaged and stop working (fob/key will not start vehicle). AJT Design is not responsible from broken transponders.
Order 2 and save $4! Enter coupon code "Qty2" at check out. Contact AJT DESIGN for discounted prices on higher quantities.
AJT Design is not in any way sponsored by or affiliated with Toyota.
Instruction Video :
Transponder Removal Instructions:
Your vehicle
Select a vehicle to check the supplied application records for this part.
Choose or change vehicle →Product reference & ordering help
Manufacturer & part identification
AJT DESIGN
| Option | SKU / part reference |
|---|---|
| Black / Black Oxide SS | 00083 |
| Black / Standard SS | 00083 |
| Black / Red Anodized Alum | 00083 |
| Black / Blue Anodized Alum | 00083 |
| Black / Purple Anodized Alum | 00083 |
| Black / Green Anodized Alum | 00083 |
| Red / Black Oxide SS | 00083 |
| Red / Standard SS | 00083 |
| Red / Red Anodized Alum | 00083 |
| Red / Blue Anodized Alum | 00083 |
| Red / Purple Anodized Alum | 00083 |
| Red / Green Anodized Alum | 00083 |
| Cement / Black Oxide SS | 00083 |
| Cement / Standard SS | 00083 |
| Cement / Red Anodized Alum | 00083 |
| Cement / Blue Anodized Alum | 00083 |
| Cement / Purple Anodized Alum | 00083 |
| Cement / Green Anodized Alum | 00083 |
| Blue / Black Oxide SS | 00083 |
| Blue / Standard SS | 00083 |
| Blue / Red Anodized Alum | 00083 |
| Blue / Blue Anodized Alum | 00083 |
| Blue / Purple Anodized Alum | 00083 |
| Blue / Green Anodized Alum | 00083 |
