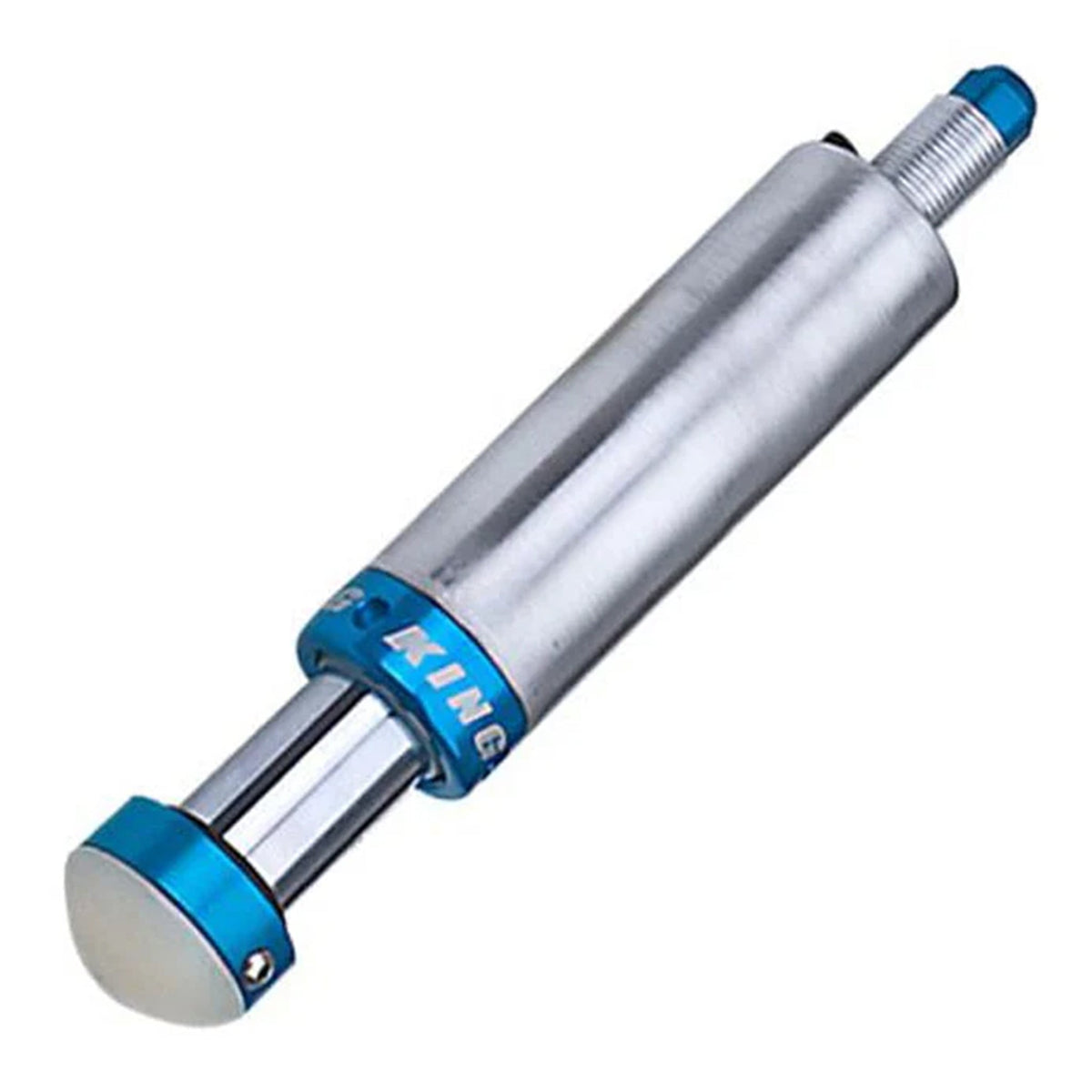

Dirt King

King Bump Stop

$325.00

Size Select 2.0" x 2.0" (GEN 2) 2.5" x 2.5" (GEN 2) 2.5" x 4.0" (GEN 2)

Check fitment before ordering
Match the year, make, model, trim and engine in the product details. Review mounting requirements and vehicle modifications. Ask us about this part.

Eligible returns within 30 days of receipt. Items must be unused, with tags and original packaging. Contact Lee Mods before sending anything back. Lee Mods pays return shipping for eligible U.S. returns; no restocking fee. See Returns & Exchanges for full conditions.

Description

Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.

The built-in King Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.

Specifications

Manufacture: King

What's Included

1 King Bump Stop

Features

Body	Smooth bore and honed seamless steel
Body Plating	Zinc plated and clear coated for a long lasting finish
Components	Black anodized, CNC machined 6061-T6 billet aluminum
Valving	Tunable, velocity sensitive deburred valve shims
Seals	Redundant sealing pack system, main seal, wiper seal, scraper seal
Pad	Replaceable Delrin® strike pad
Shafts	Hard chromed 4130 steel
Options	Custom compression and rebound valving available (Add -1 to end of part number)
Adjustments	Nitrogen Pressure
Top Mount	Eyelet
Bottom Mount	Eyelet
Reservoir	Emulsion
Valving	STANDARD

Compatibility

Universal

*SOLD INDIVIDUALLY
