MT PreRunner Kit
Dirt King
MT PreRunner Kit
Check fitment before ordering
Match the year, make, model, trim and engine in the product details. Review mounting requirements and vehicle modifications. Ask us about this part.
Eligible returns within 30 days of receipt. Items must be unused, with tags and original packaging. Contact Lee Mods before sending anything back. Lee Mods pays return shipping for eligible U.S. returns; no restocking fee. See Returns & Exchanges for full conditions.
Description
Transform your Tacoma by eliminating front-end rake and achieving a leveled lift with the Dirt King Prerunner Kit. This package includes Dirt King's Billet Upper Control Arms, 2.5 DCA Front Coilovers, and 2.5 DCA Rear Shocks—all expertly tuned for off-road capability while not compromising on-road comfort. Equipped with high-speed and low-speed compression adjusters, these shocks offer the flexibility to fine-tune ride quality across any terrain or driving style. It's the perfect choice for those looking to enhance their vehicle's off-road performance and ride quality.
Specifications
• Out of the Box: Provides 2" of lift (levels vehicle).
○ Max Recommended Setting: Up to 3" of lift.
• Out of the Box: Factory height is retained.
• Track Width: Stock
• Maximum Backspacing: 4.75"
• Minimum Rim Size: 16"
• Shock Bodies: 2.5" hard-anodized 6061 aluminum
• Shock Shafts: Induction-hardened 7/8"

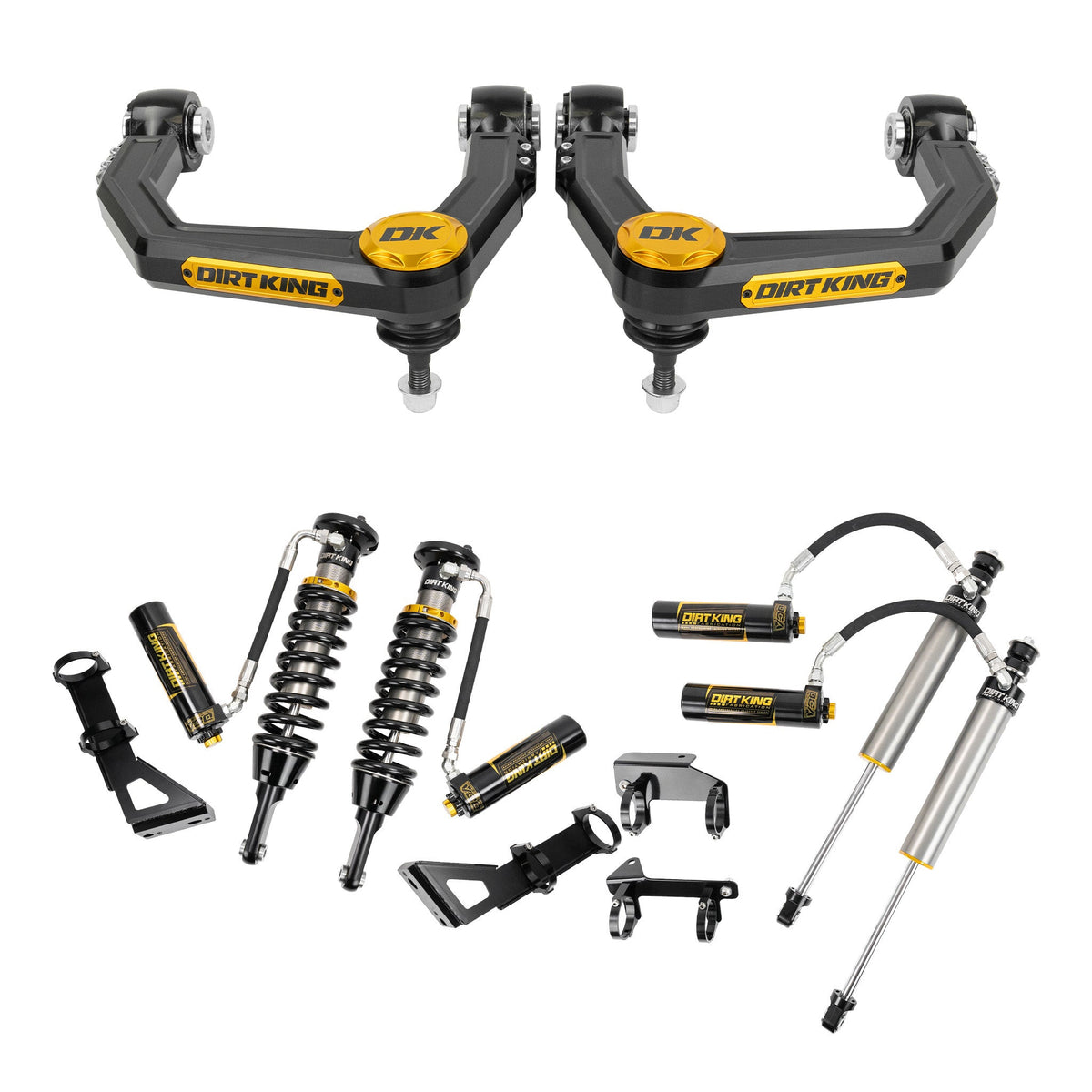

What's Included
• Dirt King Billet Upper Control Arms
• Dirt King 2.5 DCA Front Coilovers
• Dirt King 2.5 DCA Rear Shocks
• All Necessary Mounting Hardware
• Dirt King Sticker Pack
• Installation Instructions
Features
• Pro 4 Series Ball Joints: SAE4140 housing, 76° of articulation, and induction-hardened ball stud for maximum strength and smoother steering feel
• SilentSpin Bushings: Maintenance-free, greaseless, and engineered for quiet, free-spinning articulation
• DCA Remote Reservoirs: Remote reservoir equipped with dual compression adjusters allowing for high-speed and low-speed compression adjustments.
• Optimized Lift and Ride Comfort: With vehicle-specific valving, the shocks are expertly tuned for optimal ride quality on both city streets and rugged trails, all while maintaining a leveled lift.
• Enhanced Suspension Geometry: Upper control arms improve caster settings and pivot angles for better handling and increased articulation.
• Increased Suspension Travel: Allows for higher articulation and improved damping on uneven terrains.
• Durable Construction: Precision-machined from 6061 aluminum for strength and durability.
• High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance.
• Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts are available from Dirt King.
• Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation.
Compatibility
2005-2023 Toyota Tacoma 2WD / 4WD
*Not compatible with 5 lug Tacoma’s
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
*All Dirt King shocks are backed by a comprehensive one year warranty.
Your vehicle
Select a vehicle to check the supplied application records for this part.
Choose or change vehicle →Product reference & ordering help
Manufacturer & part identification
Dirt King
| Option | SKU / part reference |
|---|---|
| Select / Select / Select | Make Selection |
| Select / Select / 2005-2015 | Make Selection |
| Select / Select / 2016-2023 | Make Selection |
| Select / 2WD / Select | Make Selection |
| Select / 2WD / 2005-2015 | Make Selection |
| Select / 2WD / 2016-2023 | Make Selection |
| Select / 4WD / Select | Make Selection |
| Select / 4WD / 2005-2015 | Make Selection |
| Select / 4WD / 2016-2023 | Make Selection |
| Single Cab / Select / Select | Make Selection |
| Single Cab / Select / 2005-2015 | Make Selection |
| Single Cab / Select / 2016-2023 | Make Selection |
| Single Cab / 2WD / Select | Make Selection |
| Single Cab / 2WD / 2005-2015 | DK-811P02E |
| Single Cab / 2WD / 2016-2023 | DK-811P02E |
| Single Cab / 4WD / Select | Make Selection |
| Single Cab / 4WD / 2005-2015 | DK-811P02E |
| Single Cab / 4WD / 2016-2023 | DK-811P02E |
| Extended Cab / Select / Select | Make Selection |
| Extended Cab / Select / 2005-2015 | Make Selection |
| Extended Cab / Select / 2016-2023 | Make Selection |
| Extended Cab / 2WD / Select | Make Selection |
| Extended Cab / 2WD / 2005-2015 | DK-811P02E |
| Extended Cab / 2WD / 2016-2023 | DK-811P02F |
| Extended Cab / 4WD / Select | Make Selection |
| Extended Cab / 4WD / 2005-2015 | DK-811P02F |
| Extended Cab / 4WD / 2016-2023 | DK-811P02D |
| Crew Cab / Select / Select | Make Selection |
| Crew Cab / Select / 2005-2015 | Make Selection |
| Crew Cab / Select / 2016-2023 | Make Selection |
| Crew Cab / 2WD / Select | Make Selection |
| Crew Cab / 2WD / 2005-2015 | DK-811P02F |
| Crew Cab / 2WD / 2016-2023 | DK-811P02F |
| Crew Cab / 4WD / Select | Make Selection |
| Crew Cab / 4WD / 2005-2015 | DK-811P02F |
| Crew Cab / 4WD / 2016-2023 | DK-811P02D |
