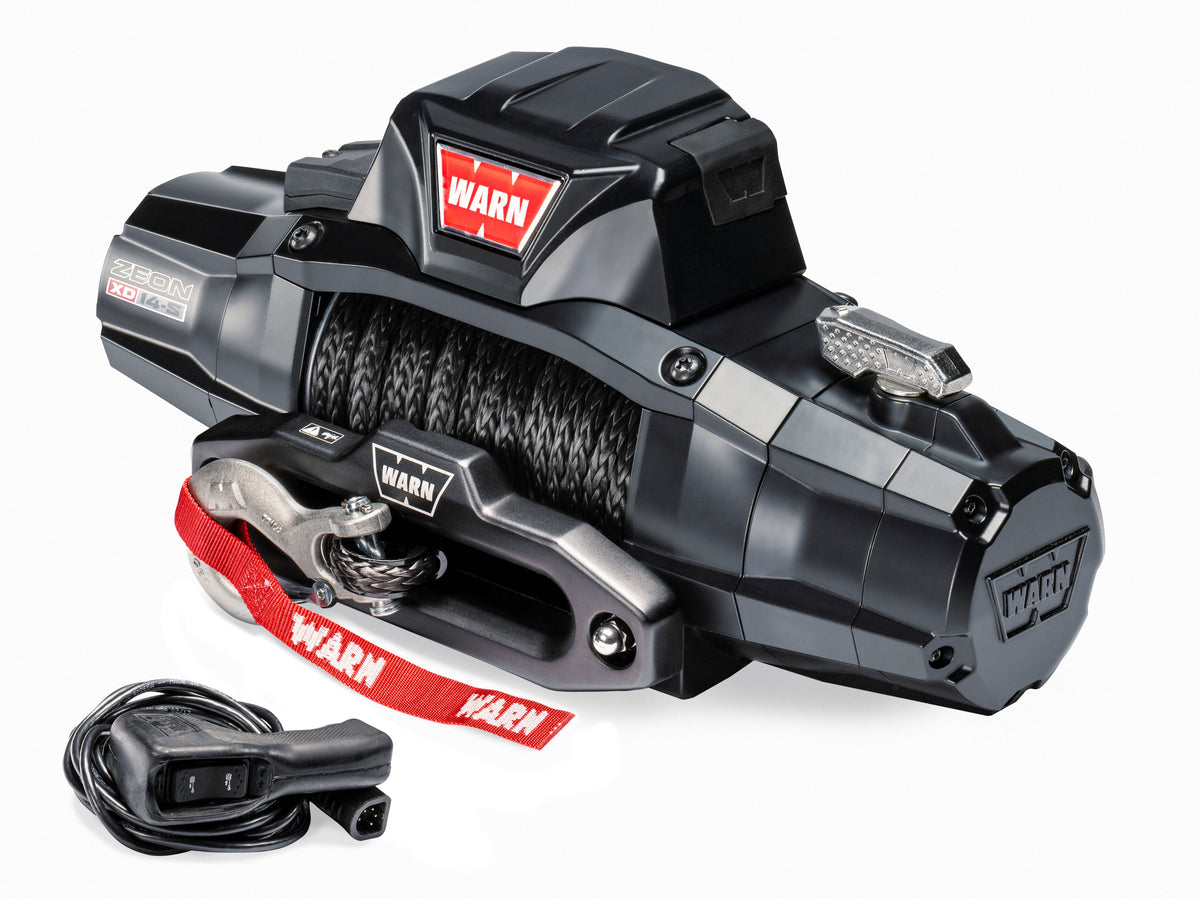

ZEON XD 14-S Winch

With the highest capacity in its class, the 14,000 lb. capacity ZEON XD 14-S is perfect for big trucks and built 4x4s, and made to endure over the long haul. As the evolution of the ZEON family, this is the go-to winch for off-roaders who value reliability, durability, and performance, no matter where adventure takes you. With upgraded waterproofing, increased corrosion protection, and best-in-class linespeeds, ZEON XD is ready for when you need it most. Plus, they're designed, engineered, and assembled in the USA.

ZEON XD stands ready for the moments when "good enough" simply won't suffice. Boasting the fastest line-speed in its class, robust waterproof sealing, and multiple control options, ZEON XD is the ultra-reliable recovery tool you can count on in critical situations. Every ZEON XD is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

• High-performance motor and geartrain deliver blazing fast no-load line speeds of 31 ft/min
• IP68 water submersion and IP69K high pressure spray rating, achieved through the use of automotive-grade O-ring sealing.
• OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XD stays pristine for years to come.
• Full metal armor safeguards components from impact, damage, and trail debris.
• Includes HUB Wireless Receiver for 100'+ of range when paired with the WARN Hub app. Ruggedized corded remote with 12' lead also included.
• Albright contactor control and bus bars provide ultimate electrical reliability
• Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope with a large-radius black forged-aluminum hawse fairlead
• Industry-leading warranty: Limited lifetime mechanical, seven year electrical all backed by a global service network

Specifications

• Brake Activation: Automatic
• Brake Type: Cone
• Cable Diameter: 0.375
• Cable Length: 80
• Cable Material: Synthetic Rope
• California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
• D Shackle Included: No
• Fairlead Type: Hawse
• Free Spooling: Yes
• Gear Ratio: 213:1
• Gearing: 3-Stage Planetary
• Hand Saver: Yes
• Length: 23.9
• Maximum Height: 10.5
• Maximum Width: 7.1
• Motor Type: Series Wound
• Motor Voltage: 12
• Mounting Bolt Pattern Length: 4.5
• Mounting Bolt Pattern Width: 10
• Mounting Hole Quantity: 4
• Power Out: Yes
• Rated Line Pull: 14000
• Remote Included: Yes
• Remote Type: Wire
• Remote Type: Wireless
• Solenoid Type: Yes
• Type: Electric
• Voltage: 12
• WARNING CA Proposition 65: Yes

Universal application. Confirm dimensions and installation requirements.
