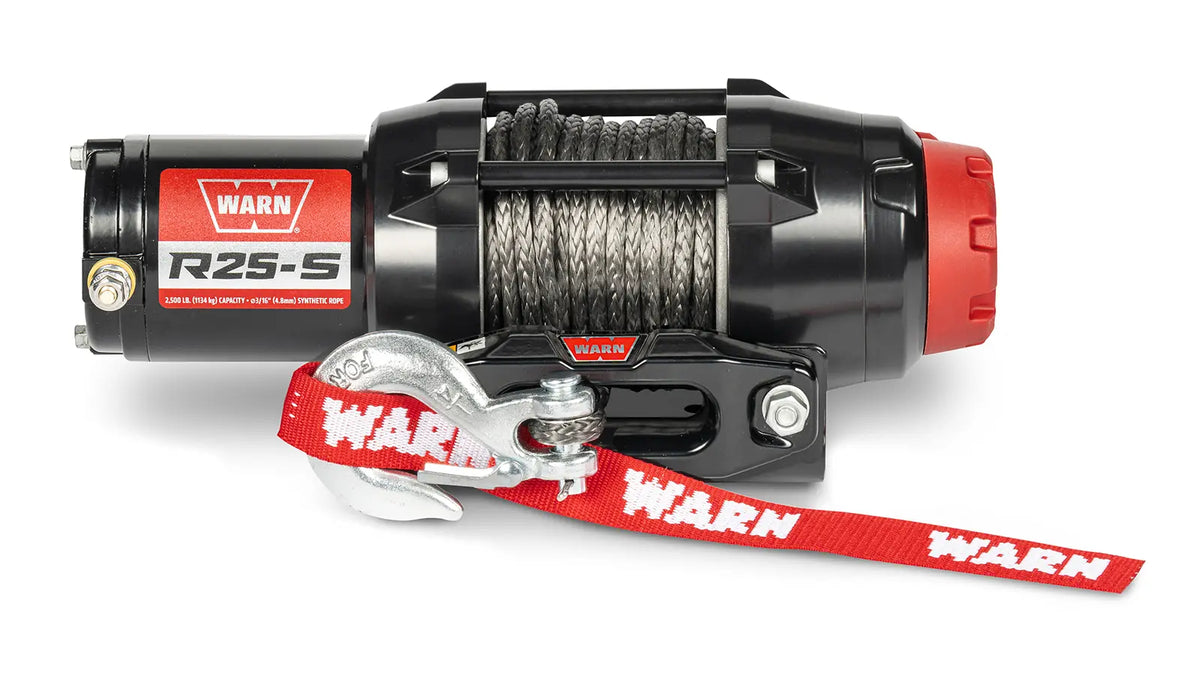

R25-S Winch

WARN R-Series Powersports Winches offer reliable performance from a name you can trust. With capacities ranging from 2,500 lbs. to 6,000 lbs.—our highest capacity powersports winch ever—we offer something for every ATV, UTV, or even something as small as a pickup or SUV. R-Series has the features you want, the power you need, and a price that won’t leave you stuck looking at lesser brands. Engineered in-house at our Oregon headquarters, these winches are built to Warn’s specs and put through rigorous testing and quality control measures. All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winches on the market. After all, if they’re going to wear a red WARN W, they must be better than good, they need to be great.

• Engineered in Oregon, built to WARN specs, and thoroughly tested for quality control
• 2,500 lb. capacity is perfect for ATVs
• Highly efficient and strong all-metal three-stage planetary gear train is built to last
• The compact design is easy to install
• Reliable automatic load-holding brake for excellent control
• Superior 5-year mechanical warranty, 3-year electrical warranty, supported by a US-based customer service team
• IP67 waterproofing keeps the water, dirt, and debris out and reliability in
• Includes 50-ft. of lightweight, easy-to-handle 3/16-in. synthetic rope and a hawse fairlead
• Handlebar-mounted rocker control switch is simple to operate

Specifications

• Brake Activation: Automatic
• Brake Type: Automatic
• Cable Diameter: 0.1875
• Cable Length: 50
• Cable Material: Synthetic Rope
• California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
• D Shackle Included: No
• Fairlead Type: Hawse
• Free Spooling: Yes
• Gearing: N/A
• Length: 12.4
• Maximum Height: 4.5
• Maximum Width: 4
• Motor Type: Permanent Magnet
• Motor Voltage: 12
• Mounting Bolt Pattern Length: 4.87
• Mounting Bolt Pattern Width: 3
• Mounting Hole Quantity: 4
• Power Out: Yes
• Rated Line Pull: 2500
• Type: Electric
• Voltage: 12
• WARNING CA Proposition 65: Yes

Universal application. Confirm dimensions and installation requirements.
