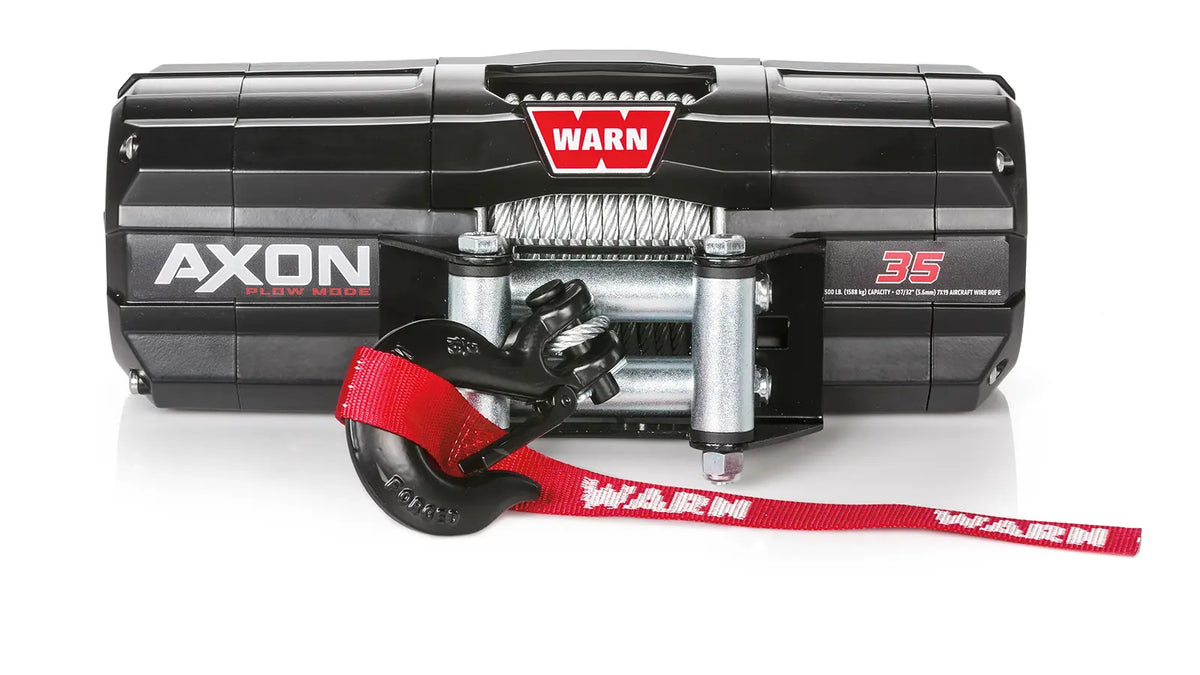

AXON 35 Winch with Plow Mode

AXON is the most durable, reliable, feature packed powersports winch anywhere. Designed, engineered, tested, and assembled in the USA, AXON’s no-compromise quality means it has what it takes to stand up to whatever you throw at it. AXON is a versatile workhorse that gives you a variety of control options. All models come with a dash switch that operates the winch while also providing winching feedback (AXON 35 comes with an adaptor so the switch can be mounted on handlebar). The HUB Wireless Receiver (sold separately for AXON 35) lets you operate the winch using your smartphone from over 100 ft away. Easy-to-read gauges show the winch’s motor temperature, load info, and the vehicle’s battery info. The new Plow Mode lets you seamlessly operate your plow—all from your smartphone. AXON 45 and 55 also include a corded remote socket and wiring harness (the corded remote is sold separately). Plow Mode provides superior control over a plow’s position with programmable upper and lower travel limits, preventing possible damage from raising or lowering the blade too much. The one-touch Auto Move option adjusts the plow to its upper and lower limits with one-touch operation, eliminating the need to operate multiple controls at once. Plow Mode requires a Hub Receiver and Smartphone to work (HUB Receiver sold separately for AXON 35 and 35-S). AXON’s unique 2-in-1 motor and contactor unit, aka, Motactor, saves space and provides supreme efficiency. Plus, it saves on install time, so you can put the winch to work faster. The IP68/IP69K-rated waterproof construction keeps the gunk out and the winch working in all conditions. Available in 3,500 lb., 4,500 lb., and 5,500 lb. capacities, there’s an AXON to suite a variety of ATVs and UTVs. With reliability, power, and versatility, AXON lets you GO PREPARED for work or play.

• AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook
• Stout 3,500 lb. capacity for riders who push the limits - ideal for large ATVs
• Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
• Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
• Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
• Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
• IP68 waterproofing keeps water and the elements out
• Rockerbar digital control switch with handlebar mount adaptor
• Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
• New clutch design based on legendary WARN 4WD hub lock know-how
• Load-holding brake for great control
• Smooth and reliable all-metal three-stage planetary gear train
• Limited lifetime warranty (mechanical), 3 year warranty (electrical)
• Designed, engineered, and assembled in the USA in the USA

Specifications

• Brake Activation: Automatic
• Brake Type: Drum
• Cable Diameter: 0.21875
• Cable Length: 50
• Cable Material: Steel
• California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
• D Shackle Included: No
• Fairlead Type: Roller
• Free Spooling: Yes
• Gear Ratio: 168:1
• Gearing: 3-Stage Planetary
• Length: 13.3
• Maximum Height: 4.8
• Maximum Width: 4.6
• Motor Type: Permanent Magnet
• Motor Voltage: 12
• Mounting Bolt Pattern Length: 4.87
• Mounting Bolt Pattern Width: 3
• Mounting Hole Quantity: 4
• Plow Mode: Yes
• Power Out: Yes
• Rated Line Pull: 3500
• Type: Electric
• Voltage: 12
• WARNING CA Proposition 65: Yes

Universal application. Confirm dimensions and installation requirements.
