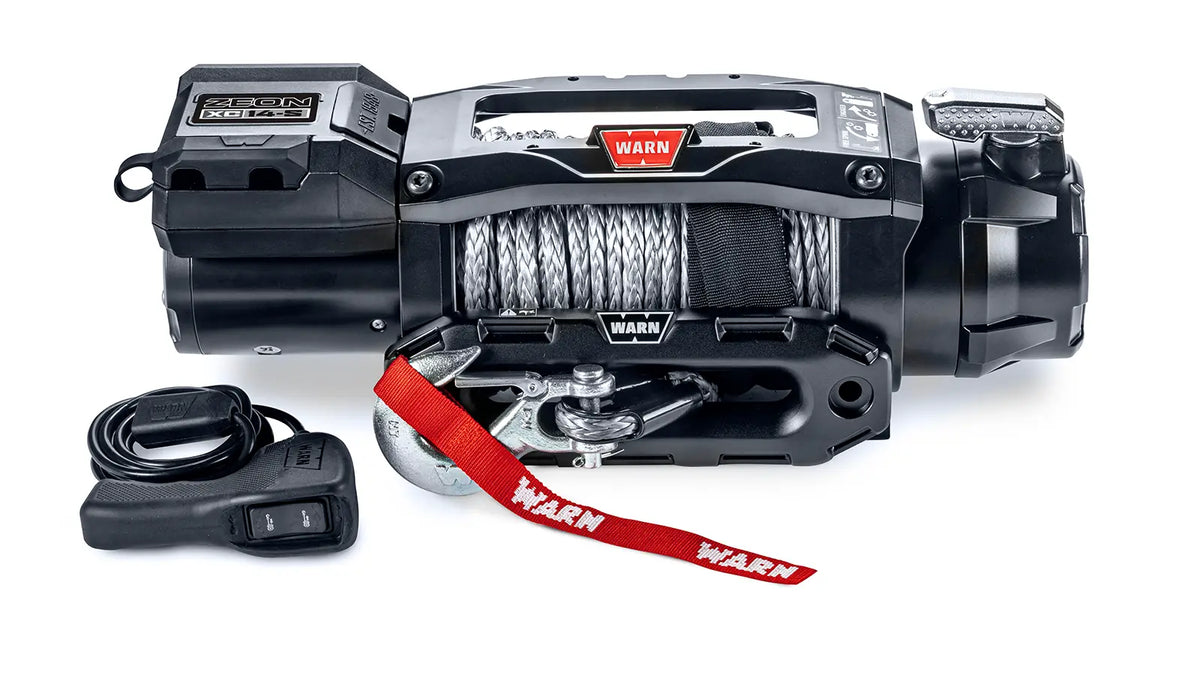

ZEON XC 14-S Winch

For those looking for ZEON performance in a compact shape, the ZEON XC is the one to get. The ZEON XC 14-S offers a whopping 14,000 lbs. of pulling capacity making it great for big 3/4-ton and 1-ton trucks, large SUVs, and other large rigs. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Plus, it's designed, engineered, and assembled in the USA.

Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

• Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
• The remote socket can easily be relocated within 9” of the control pack for added mounting versatility.
• Ultimate performance and durability: best-in-class line speed, and superior durability
• Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
• OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
• Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope and a large-radius black Epic aluminum hawse fairlead
• Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
• Designed, engineered, and assembled in the USA

Specifications

• Brake Activation: Automatic
• Brake Type: Cone
• Cable Diameter: 0.375
• Cable Length: 80
• Cable Material: Synthetic Rope
• California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
• D Shackle Included: No
• Fairlead Type: Hawse
• Free Spooling: Yes
• Gear Ratio: 213:1
• Gearing: 3-Stage Planetary
• Hand Saver: Yes
• Length: 22
• Maximum Height: 7.8
• Maximum Width: 6.7
• Motor Type: Series Wound
• Motor Voltage: 12
• Mounting Bolt Pattern Length: 4.5
• Mounting Bolt Pattern Width: 10
• Mounting Hole Quantity: 4
• Power Out: Yes
• Rated Line Pull: 14000
• Remote Included: Yes
• Remote Type: Wire
• Solenoid Type: Yes
• Type: Electric
• Voltage: 12
• WARNING CA Proposition 65: Yes

Universal application. Confirm dimensions and installation requirements.
