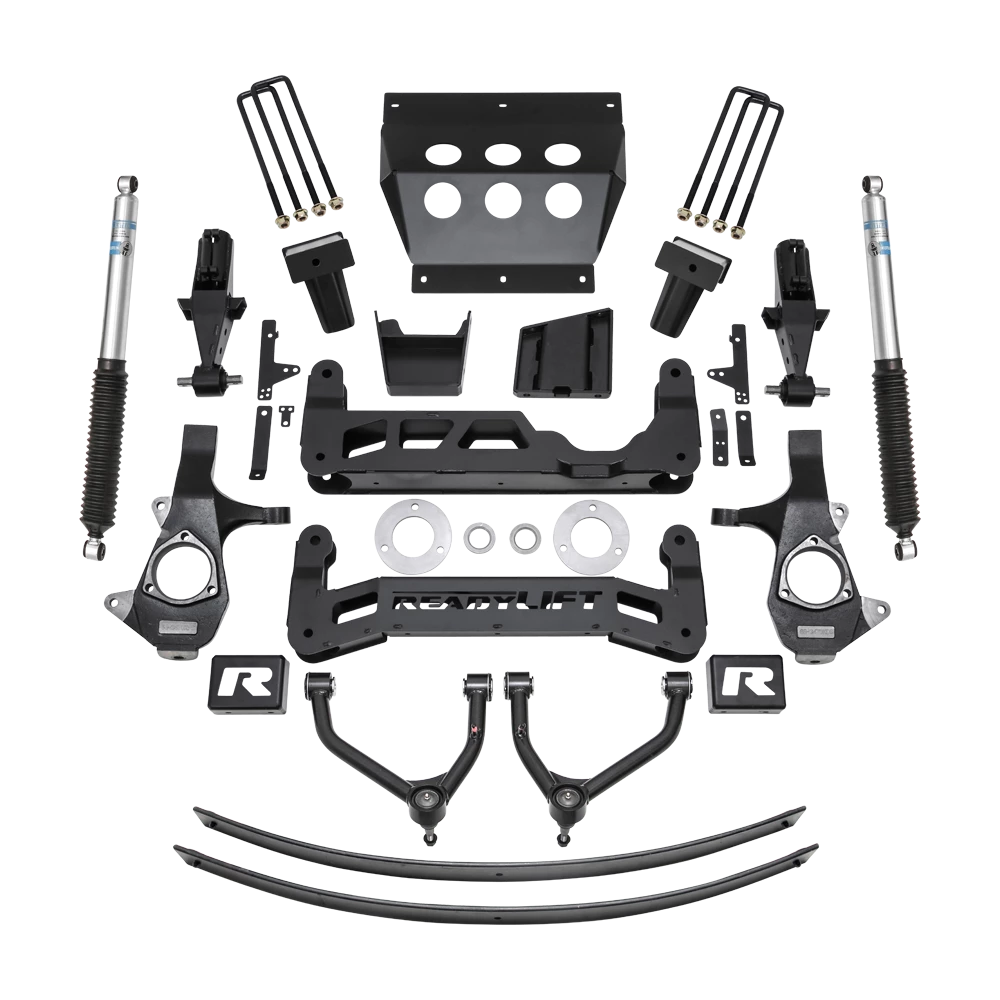

9" Lift Kit - GM Silverado / Sierra 1500 - 2014-2018 W/ Alum Or Stamped Steel Suspension

ReadyLIFT introduces a 9-inch big lift kit for 2014-2018 Chevy Silverado and GMC Sierra 1500 trucks, compatible with trucks with or without front MagneRide. The 44-3490 kit is suitable for GM 1500 trucks with Aluminum or Stamped Steel front suspension, featuring new tubular upper control arms. It maintains the factory turning radius, with minimal track width increase of less than 0.5" per side. The kit accommodates up to a 37" tall tire on a 9-inch wide wheel with -12 offset. It includes a "clam-shell" style lower strut extension, which retains the use of factory struts and doesn't require strut rotation. These extensions use TCT lower bushings for a precise pivot point, maintaining the factory ride. The kit's tubular upper control arms with TCT pivot bushings offer enhanced strength over OE stamped steel control arms. It features boxed steel front/rear cross members and a full-width front skid plate made of 3/16" plate steel, compatible with the OE front plastic gravel guard for engine protection and airflow maintenance. The kit includes 1/4-inch boxed plate steel differential drop brackets with a double gusset and boxed center rib, supporting front differential torsional twisting. Suitable for 2WD or 4WD applications (excluding AWD), it offers rear lift with an add-a-leaf spring and 3/16-inch thick plate steel rear lift blocks with built-in bump stop landings and offset pin design for axle centering and proper pinion angle. Premium extended length Bilstein rear shocks are included. Note: Fits up to a 37" tall off-road tire requiring a 9-inch wide wheel with -12 offset (minor trimming may be needed for some tires). Not for AWD, GMC Denali 1500 with REAR MagneRide, or models with Rear MagneRide. Compatible only with Front MagneRide and factory Aluminum front suspension. Comes with ReadyLIFT ReadyGuard Powertrain Warranty.

• Fits 20142018 GM 1500 trucks with OE Aluminum or Stamped Steel front suspension
• Allows for up to a 37" tall off road tire
• Requires at least a 9 inch wide wheel with 12 offset
• Retains factory turning radius, ride and handling
• Works with Front MagneRide
• Includes premium Bilstein shocks
• Includes new tubular steel upper control arms with TCT pivot bushings
• Validated for fitment and drivability by ReadyLIFT
• Single Cab configuration not validated for fitment and drivability by ReadyLIFT
• Fits 2014 Fits 20142018 GM 1500 trucks with OE Aluminum or Stamped Steel front suspension

Specifications

• California Proposition 65: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
• Fitment: Direct Fitment
• Front Lift Component: Spacer
• Front Lift Height: 9 Inches
• Front or Rear: Front and Rear
• Front Shocks: None
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Max Tire Size: 37 Inch
• Prop65 Chem1: Di(2-ethylhexyl)phthalate (DEHP)
• Rear Lift Component: Block and U-bolt with add a leafs
• Rear Lift Height: 9 Inches
• Rear Shocks: Bilstein
• Shocks Included: Yes

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2014 Chevrolet Silverado 1500
• 2014–2018 Chevrolet Silverado 1500
• 2014–2018 GMC Sierra 1500
• 2015–2018 Chevrolet Silverado 1500
• 2016 Chevrolet Silverado 1500
