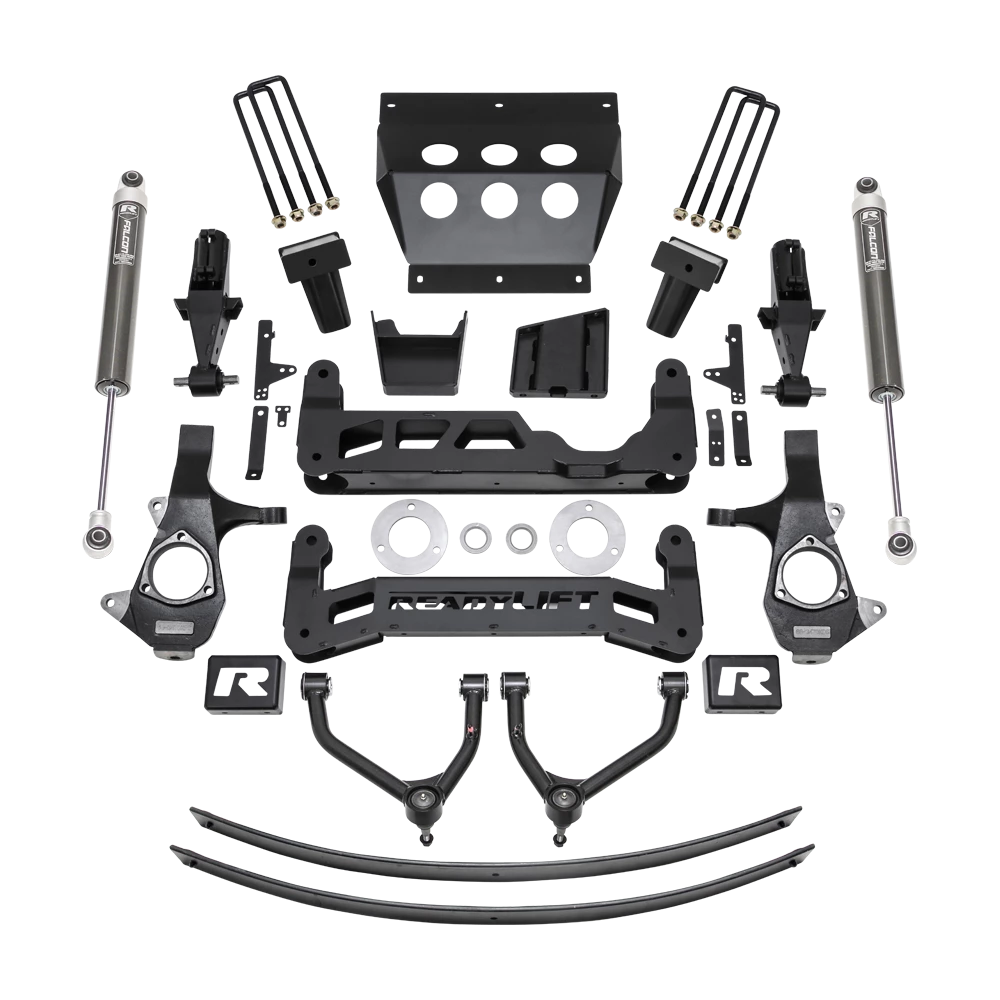

9" Lift Kit - GM Silverado / Sierra 1500 - 2014-2016 W/ Cast Steel Suspension With Falcon 1.1 Monotube Shocks

ReadyLIFT introduces a new 9-inch lift kit, model 44-34910, suitable for 2014-2016 Chevy Silverado and GMC Sierra 1500 trucks, compatible with both standard and front MagneRide equipped vehicles. This lift system, designed specifically for trucks with the Cast Steel front suspension, incorporates new tubular upper control arms. It maintains the factory turning radius and limits track width increase to less than 0.5" per side. The kit accommodates up to a 37" tall tire on a 9" wide wheel with a -12 offset. The innovative "clam-shell" style lower strut extension preserves the use of factory struts and negates the need for strut rotation. It features TCT lower bushings for a precise pivot point, preserving the factory ride. The new tubular upper control arms with TCT pivot bushings enhance upper control arm strength, surpassing the original stamped steel control arms. The lift kit includes boxed steel front/rear cross members and a full-width front skid plate made of 3/16" plate steel. It also accommodates the OE front plastic gravel guard to protect the engine bay and maintain proper airflow. The 1/4-inch boxed plate steel differential drop brackets are double-gusseted with a boxed center rib for durability against torsional twisting of the front differential (not suitable for AWD - only 2WD or 4WD). Rear lift is achieved with an add-a-leaf spring and 3/16-inch thick plate steel rear lift blocks featuring built-in bump stop landings and an offset pin design for axle centering and retaining proper pinion angle. The system includes Falcon 1.1 Monotube rear shocks for enhanced performance. Note: It's designed for up to a 37" tall off-road tire requiring a 9" wide wheel with -12 offset to avoid rubbing (minor trimming may be needed for some aggressive tires). Not recommended for GMC Denali 1500 or other models with Rear MagneRide, only front MagneRide is compatible. The kit comes with ReadyLIFT's ReadyGuard Powertrain Warranty.

• Fits 20142016 GM 1500 trucks with OE Cast Steel front suspension
• Allows for up to a 37" tall off road tire
• Requires at least a 9 inch wide wheel with 12 offset
• Retains factory turning radius, ride and handling
• Works with Front MagneRide
• Includes premium with Falcon 1.1 Monotube Shocks
• Includes new tubular steel upper control arms with TCT pivot bushings
• Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
• Fits 2014 Fits 20142016 GM 1500 trucks with OE Cast Steel front suspension

Specifications

• California Proposition 65: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
• Fitment: Direct Fitment
• Front Lift Component: Spacer
• Front Lift Height: 9 Inches
• Front or Rear: Front and Rear
• Front Shocks: None
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Max Tire Size: 37 Inch
• Prop65 Chem1: Di(2-ethylhexyl)phthalate (DEHP)
• Rear Lift Component: Block and U-bolt with add a leafs
• Rear Lift Height: 9 Inches
• Rear Shocks: Falcon 1.1 Monotube
• Shocks Included: Yes

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2014 Chevrolet Silverado 1500
• 2014–2016 Chevrolet Silverado 1500
• 2014–2016 GMC Sierra 1500
• 2015–2016 Chevrolet Silverado 1500
• 2016 Chevrolet Silverado 1500
