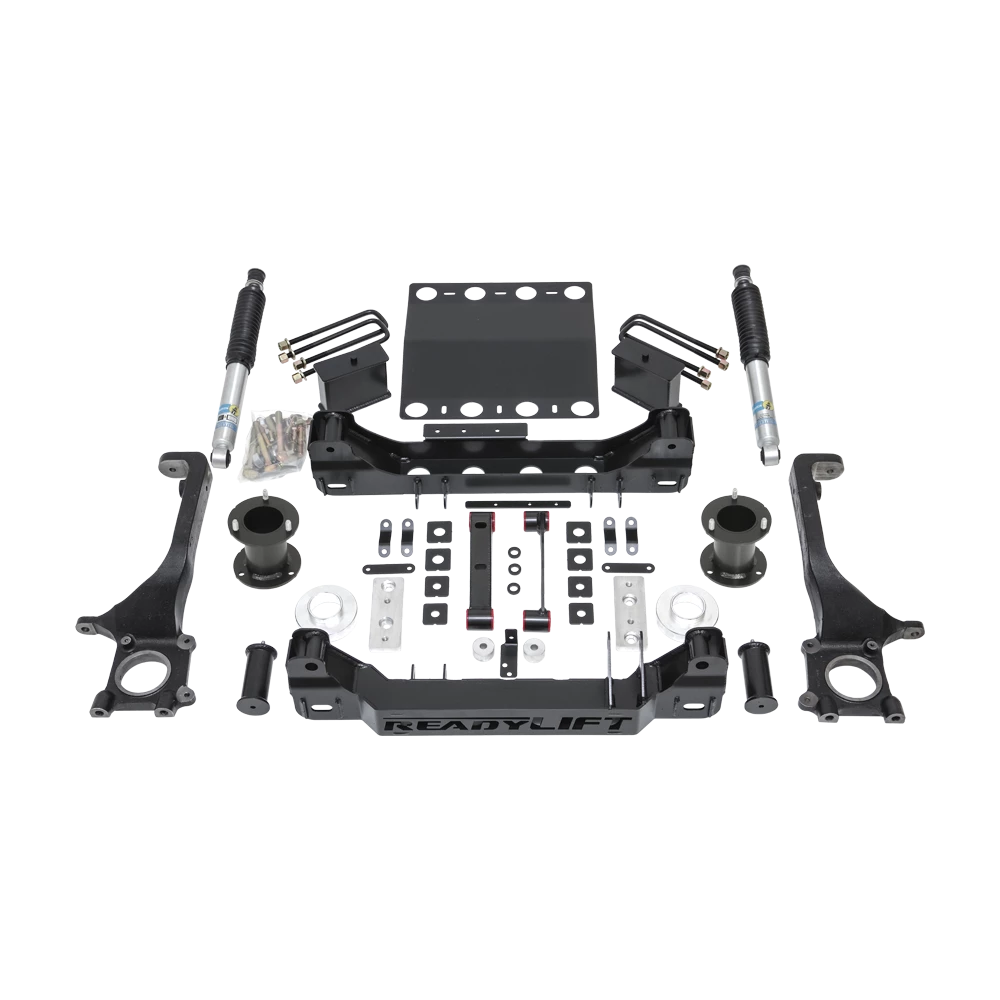

6" Lift Kit - Toyota Tacoma W/ Bilstein Shocks 2016-2023

ReadyLIFT introduces a new 6" Big Lift Kit for 2016-2023 Tacoma trucks, designed to enhance the lift height of these mid-size Toyota trucks. The kit, model 44-5660, is compatible with SR, SR5, TRD Sport, TRD Off-Road, and Limited models, excluding 5-lug Tacoma, TRD Pro, TX Baja, or XSP-X models. Inspired by the engineering of Tundra lift kits, the Tacoma kit features drop bracket style design, allowing for a 35" tall off-road tire fitment. Central to the kit are heavy-duty top mount offset strut extensions for a true 6-inch front lift. It includes cast iron lift knuckles for ideal alignment geometry, retaining factory sway bar mounting locations, and compatibility with the factory skid plate and gravel guard. The kit comprises heavy-duty, laser-cut, CNC-bent steel cross members for front differential lowering and frame integrity. The rear setup includes 5-inch tall fabricated steel lift blocks and Bilstein 5100-series shocks. This kit has undergone over 6 months of daily road testing, confirming its effectiveness and compatibility with up to a 35x12.50 tire on a 9" wide wheel with +12, 0, or -18 offsets, requiring a minimum 18" wheel diameter. Notably, the kit maintains the functionality of Tacoma's safety features, like electronic stability control and TSS-PCS, as tested on a factory 2018 MY Tacoma with the kit installed. The testing confirmed that the vehicle's active and passive systems recognized operating conditions and took corrective actions as per factory settings, even with the suspension upgrades.

• Fits 20162023 Tacoma 2WD/4WD trucks with 6 lug wheels
• Compatible with SR, SR5, TRD Sport, TRD OffRoad, and Limited models
• Not compatible with 5lug, TRD Pro, TX Baja, or XSPX models
• Provides a true 6 inches of front lift
• Complete front and rear lift kit system
• Includes performancetuned Bilstein 5100 Rear Shocks
• Allows for up to 35" tall offroad tires on 9" wide wheels with +12, 0, or 18 offsets
• Minimum 18" wheel diameter required
• Fits 2016 Fits 20162023 Tacoma 2WD/4WD trucks with 6 lug wheels
• Compatible with SR, SR5, TRD Sport, TRD Off Compatible with SR, SR5, TRD Sport, TRD OffRoad, and Limited models
• Not compatible with 5 Not compatible with 5lug, TRD Pro, TX Baja, or XSPX models
• Includes performance Includes performancetuned Bilstein 5100 Rear Shocks
• Allows for up to 35"" tall off Allows for up to 35"" tall offroad tires on 9"" wide wheels with +12, 0, or 18 offsets

Specifications

• California Proposition 65: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
• Fitment: Direct Fitment
• Front Lift Component: Spacer
• Front Lift Height: 6 Inches
• Front or Rear: Front and Rear
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Max Tire Size: 35 Inch
• Prop65 Chem1: Di(2-ethylhexyl)phthalate (DEHP)
• Rear Lift Component: Block
• Rear Lift Height: 6 Inches
• Rear Shocks: Bilstein 5100
• Shocks Included: Yes

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2016–2023 Toyota Tacoma
• 2017–2023 Toyota Tacoma
• 2021–2022 Toyota Tacoma
• 2022–2023 Toyota Tacoma
