6" Lift Kit - Toyota Tundra TRD Pro 2015-2021

TRD Pro Plus 6! ReadyLIFT 6" Complete Lift Kit for 2015-2021 Toyota Tundra TRD Pro Trucks! ReadyLIFT delivers a great new Pro Plus 6 lift kit that will provide 6" of front lift to TRD Pro Tundra trucks that come factory with 2" of front lift. That equals the same height as our 8" lift kit on a standard Tundra. And even better, this kit allows you to retain use of the factory Bilstein/Fox coil-overs and reservoir rear shocks! That's right, this great system retains use of ALL of the factory TRD Pro suspension components. Note: This system will only work with factory 20" wheels - will not work with some factory 18" wheels. Aftermarket wheels okay with correct offset. Note: For use only on 2015-2021 Tundra TRD Pro w/ Bilstein/Fox coilover shocks. Note: Will not work with the TRD rear swar bar option.

Note: Cannot use the factory front skid plate.

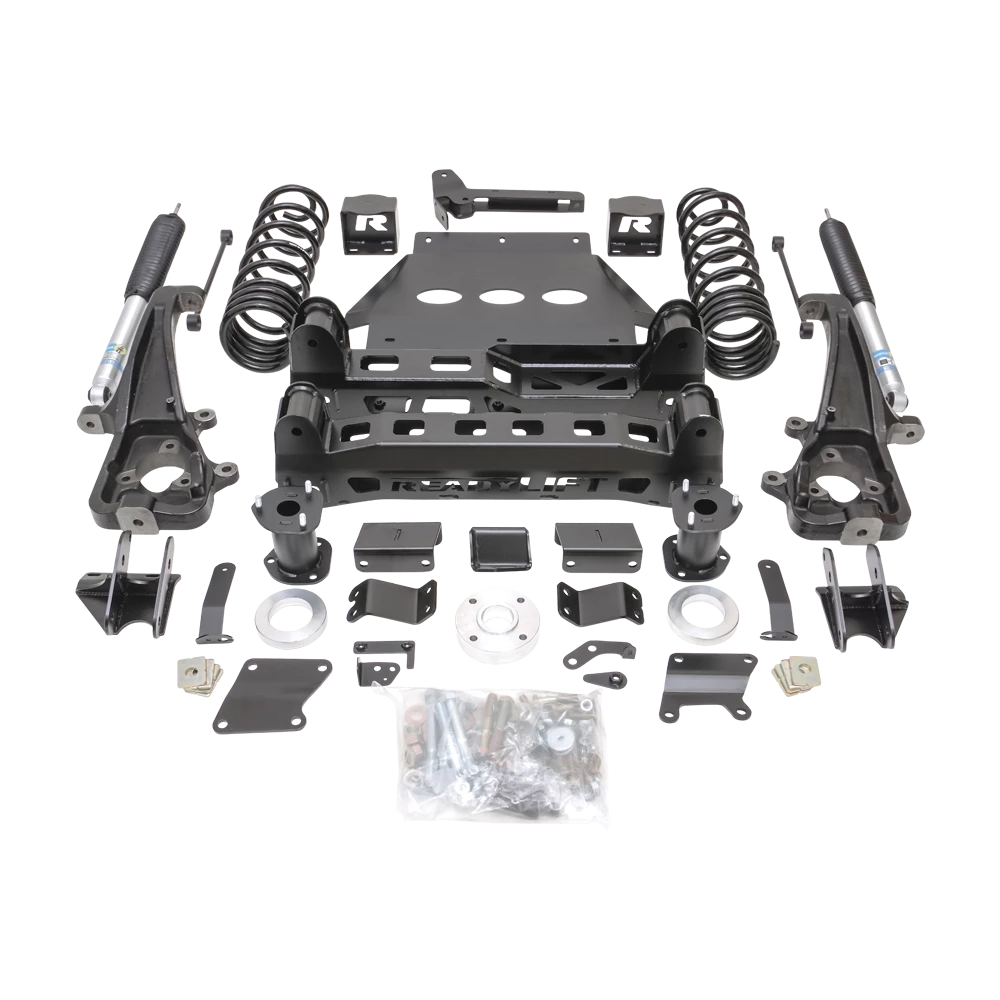

This 44-5860 Pro Plus 6 inch lift kit for Tundra trucks is packed full of the same great features found in our standard 8" lift kit! Starting with our ultra strong laser cut, CNV bent, welded and boxed sub frame drop assemblies that not only keeps your suspension geometry where it is supposed to be, but also increases your ground clearance 2" over the competition! Our unique and precision-designed iron knuckles feature CNC machining to guarantee precise fit while allowing for retention of the factory tie rods - that means no cutting or replacing your tie rods - ever! The 6 inches of lift is created by our innovative and industry-leading offset top mount spacer design along with the addition of a CNC machined billet Aluminum strut top hat replacement. These strong steel spacers attach to the factory Bilstein/Fox coilover/strut - resulting in a factory ride - while positioning the suspension in such a way as to not increase track width. What does that mean? It means your front tires won't still out further than your rear tires like with other kits. AND it means you can run your stock 20" wheels and use your spare tire if needed.

This kit has been engineered around developing and offering a top quality lift solution for Tundra TRD Pro owners. ReadyLIFT's sub assembly design features a truly innovative approach to dropping the differential. Our diff drop kit is engineered for easy installation - easiest on the market - and correctly positions the differential to maintain great CV axle and drive line angles. Our system is built around maintaining correct alignment and geometry specifications. With our 44-5860 Pro Plus 6" lift kit you can rest assured you will not be wearing out those new tires. For the rear this kit includes our time-tested OEM-style cast iron rear lift blocks and longer U-bolts with hardware. Additionally, we also include bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory position. To keep you driving on those high-quality Bilstein/Fox reservoir shocks, we include our popular shock stem extensions that adjust the installed length of the shock without altering the compressed and extended length. All of this contributes to an excellent driving and handling suspension system that truly compliments your Tundra TRD Pro truck! How big of a tire can you run? We recommend 37" as the maximum on a 9" wheel with a +12 offset for the least chance of rubbing. (Front mud flaps may need to be removed depending on the tread design of the tire.)

• TRD Pro Plus 6" Lift Kit System
• Compatible with 20152021 Tundra TRD PRO models only
• Made in the USA
• Allows for installation of up to 37" tall tires
• Retains use of both front and rear factory Bilstein/Fox shocks
• Maintains stock turning radius
• Compatible with use of stock wheels
• Not compatible with TRD rear sway bar option
• Compatible with 2015 Compatible with 20152021 Tundra TRD PRO models only

Specifications

• California Proposition 65: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
• Fitment: Direct Fitment
• Front Lift Component: Spacer
• Front Lift Height: 6 Inches
• Front or Rear: Front and Rear
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 5+ Hours
• Max Tire Size: 37 Inch
• Prop65 Chem1: Di(2-ethylhexyl)phthalate (DEHP)
• Rear Lift Component: Block and U-bolt
• Rear Lift Height: 6 Inches
• Shocks Included: No

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2015–2017 Toyota Tundra
• 2019–2021 Toyota Tundra
