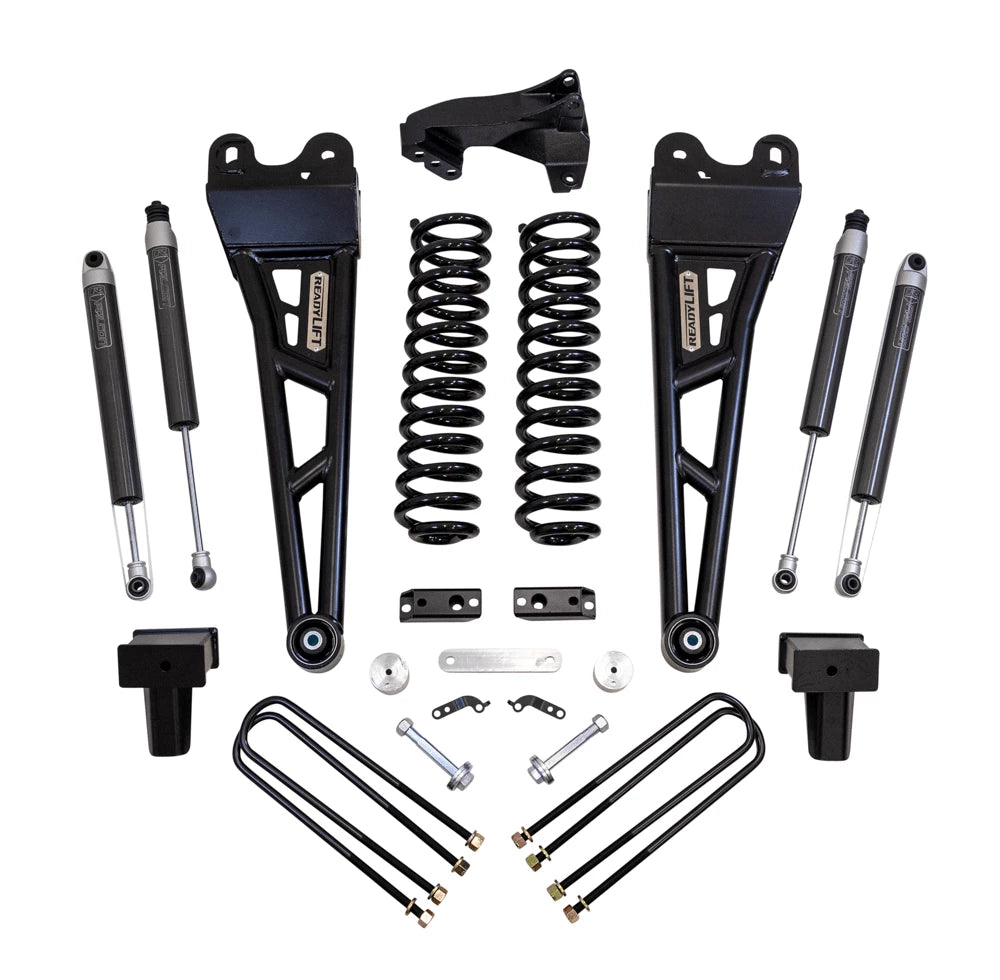

4" Coil Spring Lift Kit With Falcon Shocks And Radius Arms - Ford Super Duty Diesel 4WD 2017-2022 F-350 And F-250

ReadyLIFT Suspension now offers its first 4" Coil Spring Lift Kit for 2017-2022 Ford Super Duty F250/F-350 4WD Power Stroke ® trucks equipped with new Tubular Radius Arms. This kit, designated as 49-27421, comprises front and rear Falcon 1.1 Monotube series performance shocks, a front track bar relocation bracket, tubular radius arms, and rear fabricated blocks. It provides an excellent solution for lifting F250/F-350 Super Duty trucks to accommodate larger tires, with the coil spring system enabling increased tire sizes and widths while enhancing ground clearance. This lift height strikes the ideal balance for Super Duty driving dynamics and maximum tire size while retaining everyday practicality. The newly designed Radius Arms address suspension geometry correction for lifted models. These heavy-duty radius arms are engineered to withstand the rigors expected from Super Duty trucks and surpass factory radius arms with added support gussets. Their inward formation allows for increased tire clearance and the installation of oversized tires, all through a direct bolt-on design that ensures quick and easy installation. This optimal lift height accommodates tires up to 37" in height, delivering an exceptional ride and handling performance. The key components for improving your ride include specially engineered coil springs, Falcon shocks, and track bar relocation. This combination transcends a mere lift kit, offering both enhanced performance and ride quality on and off-road. The ReadyLIFT 4" Coil Spring lift kit for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, proven bump-stop extension brackets, and new front sway bar frame mount extension brackets to maintain the factory sway bar's correct position. If you seek a rugged appearance and a smooth yet controlled ride, the new Super Duty 4" Coil Spring Suspension Kit System is your answer.

• Fits 20172022 Ford Super Duty Power Stroke 4WD
• 4" coil spring lift kit
• (4) Monotube Falcon 1.1 shocks included
• Eyecatching HD tubular radius arms for improved caster angle
• Bolton installation, no structural modifications required
• Allows for up to 37" tall tires on 9" wide wheels with +18 offset
• Designed for diesel trucks with rear singlewheel only
• Not recommended for 2WD or gas trucks
• May result in slightly lower ride height for 20172019 models
• Not validated for fitment and drivability on single cab configurations by ReadyLIFT
• Fits 2017 Fits 20172022 Ford Super Duty Power Stroke 4WD
• Eye Eyecatching HD tubular radius arms for improved caster angle
• Bolt Bolton installation, no structural modifications required
• Designed for diesel trucks with rear single Designed for diesel trucks with rear singlewheel only
• May result in slightly lower ride height for 2017 May result in slightly lower ride height for 20172019 models

Specifications

• California Proposition 65: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
• Fitment: Direct Fitment
• Front Lift Component: Coil Spring
• Front Lift Height: 4 Inches
• Front or Rear: Front and Rear
• Front Shocks: Falcon 1.1 Monotube
• Install Difficulty: Difficult Requires Professional Installation
• Installation Time: 4 Hours
• Max Tire Size: 37 Inch
• Prop65 Chem1: Di(2-ethylhexyl)phthalate (DEHP)
• Rear Lift Component: Block
• Rear Lift Height: 4 Inches
• Rear Shocks: Falcon 1.1 Monotube
• Shocks Included: Yes

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2017–2022 Ford F-250 Super Duty
• 2017–2022 Ford F-350 Super Duty
• 2018–2022 Ford F-250 Super Duty
• 2018–2022 Ford F-350 Super Duty
• 2020–2022 Ford F-250 Super Duty
• 2021–2022 Ford F-350 Super Duty
