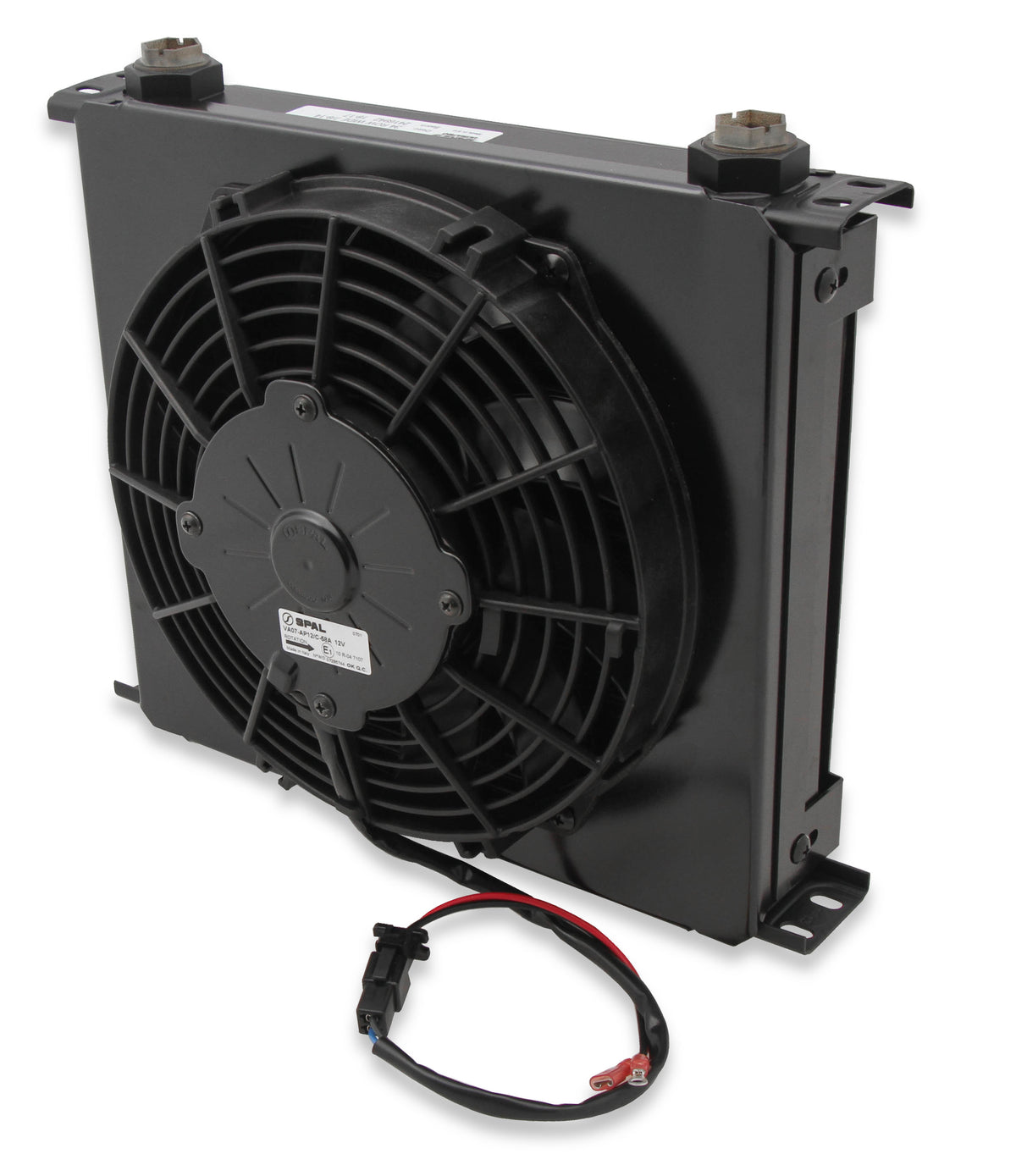

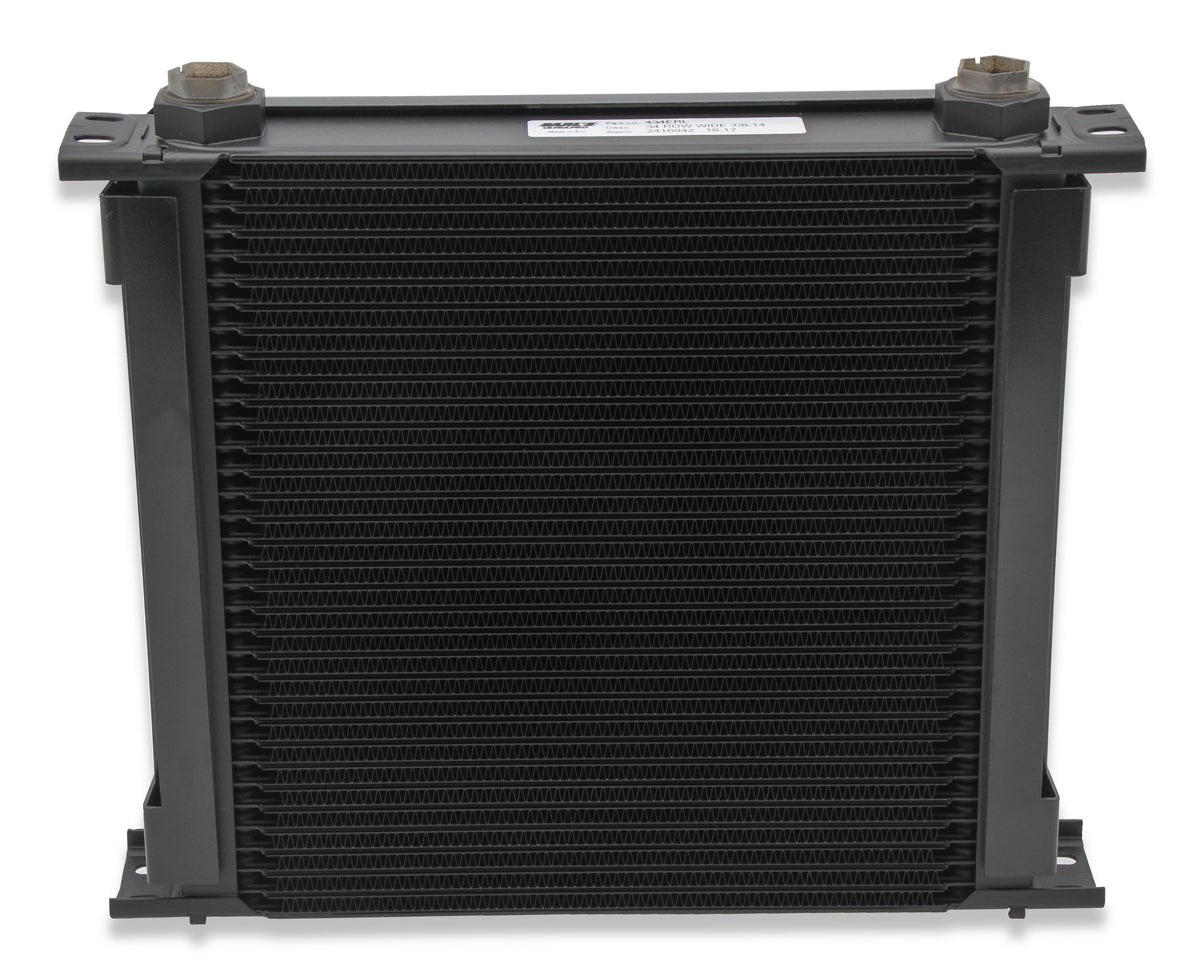

Earl's FP434ERL UltraPro 34-Row Wide Oil Cooler with Fan Pack - Black
Earl's Performance
Earl's FP434ERL UltraPro 34-Row Wide Oil Cooler with Fan Pack - Black
Check fitment before ordering
Match the year, make, model, trim and engine in the product details. Review mounting requirements and vehicle modifications. Ask us about this part.
Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These fan coolers are available in 3 sizes & feature a premium cooling fan & aluminum shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Black Finish.

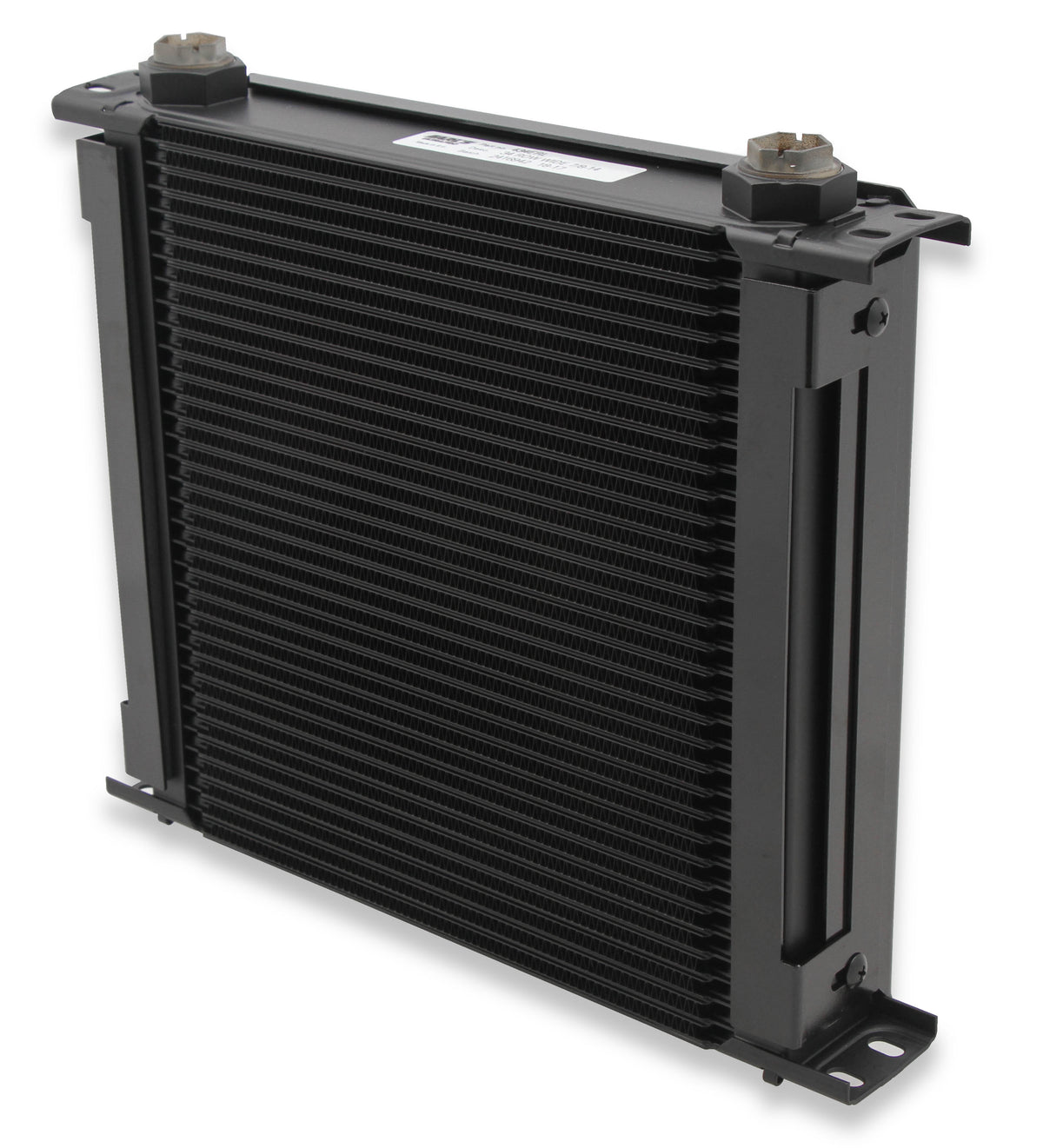

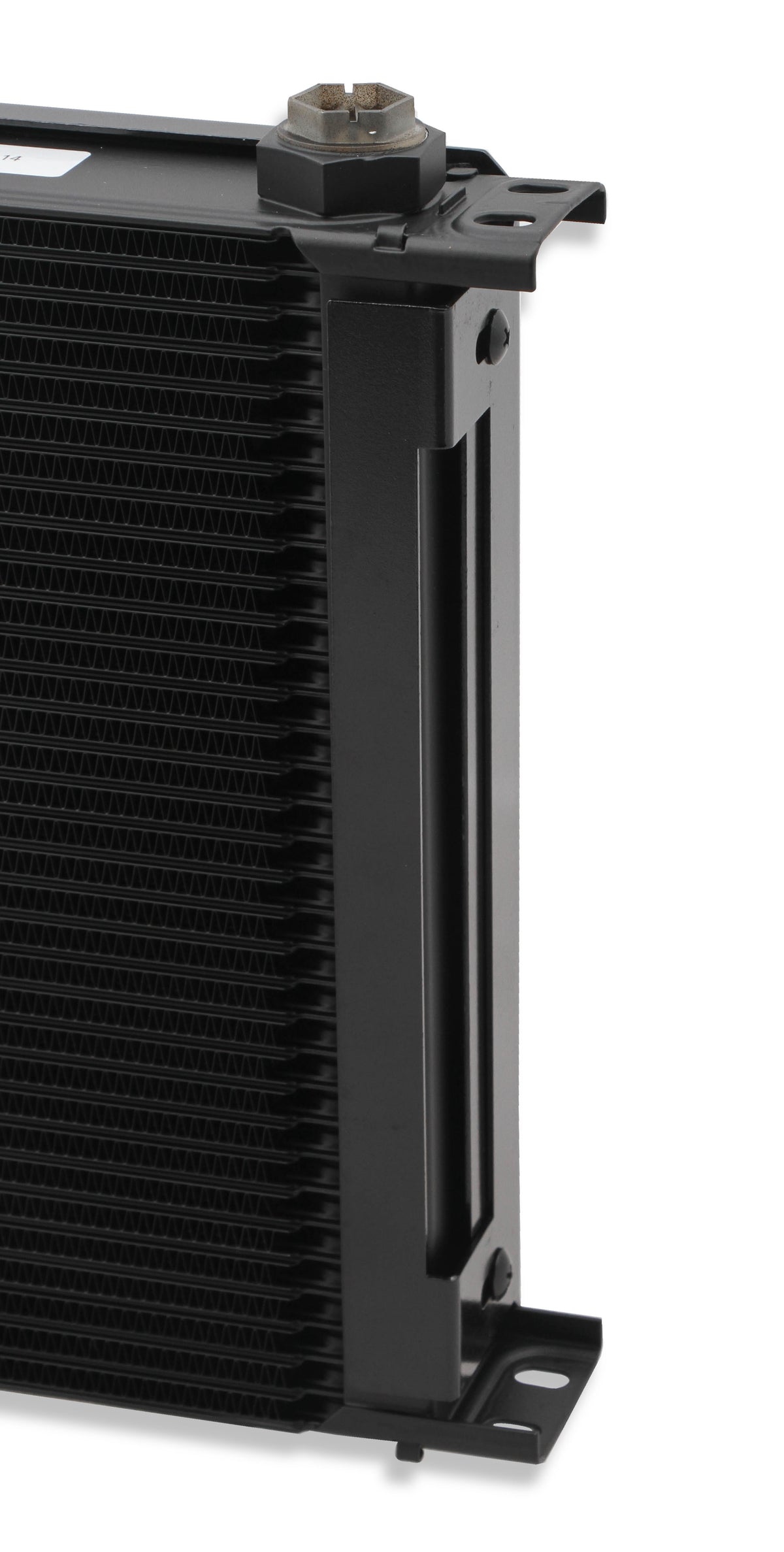

- Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
- Made Using State of the Art Brazing Technology
- Highly Efficient Design w/ Minimal Pressure Drop
- Extremely Durable Lightweight Aluminum Construction w/Black Finish
- (3) Width Options - Narrow 8.25, Wide 12.99, and Extra Wide 15.94 Overall Width

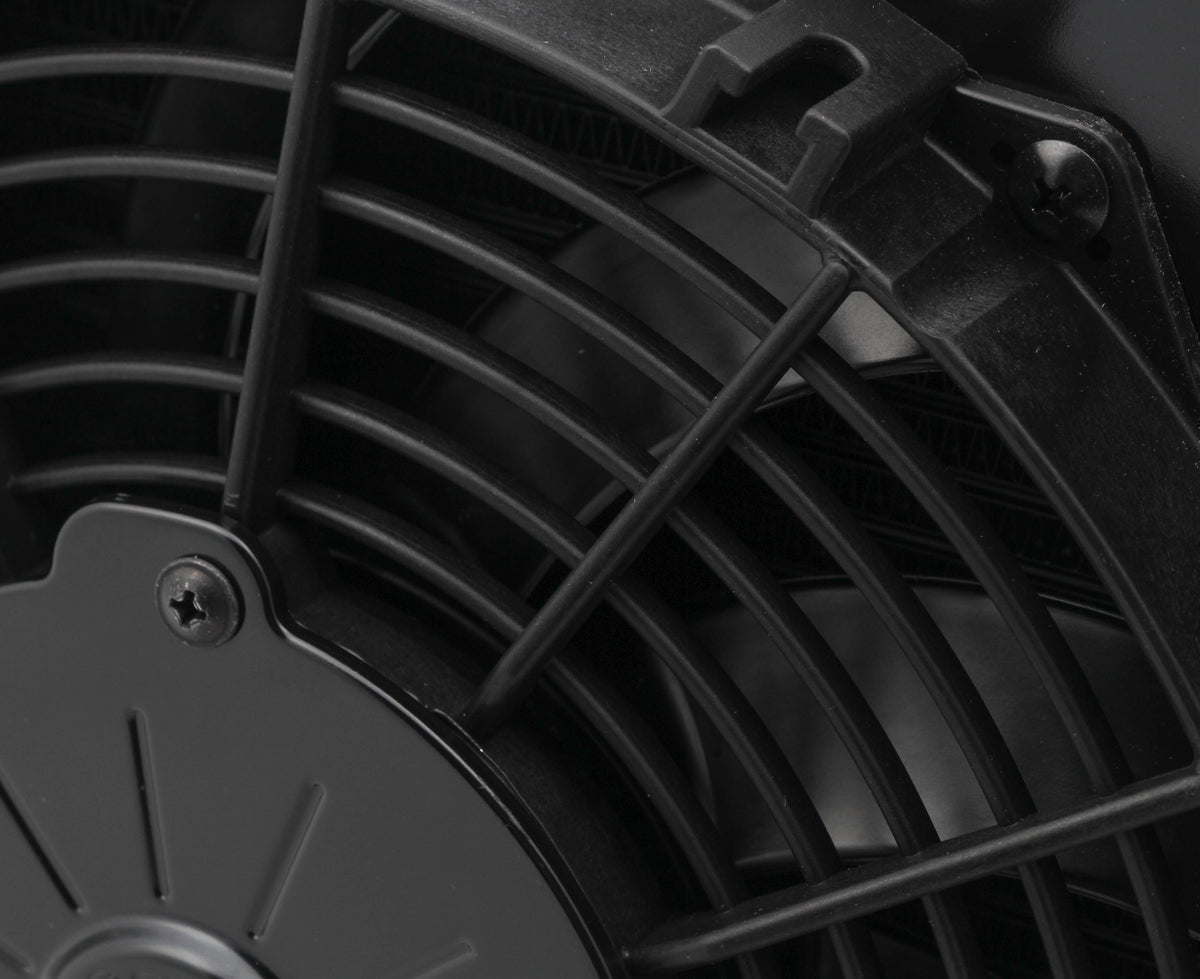

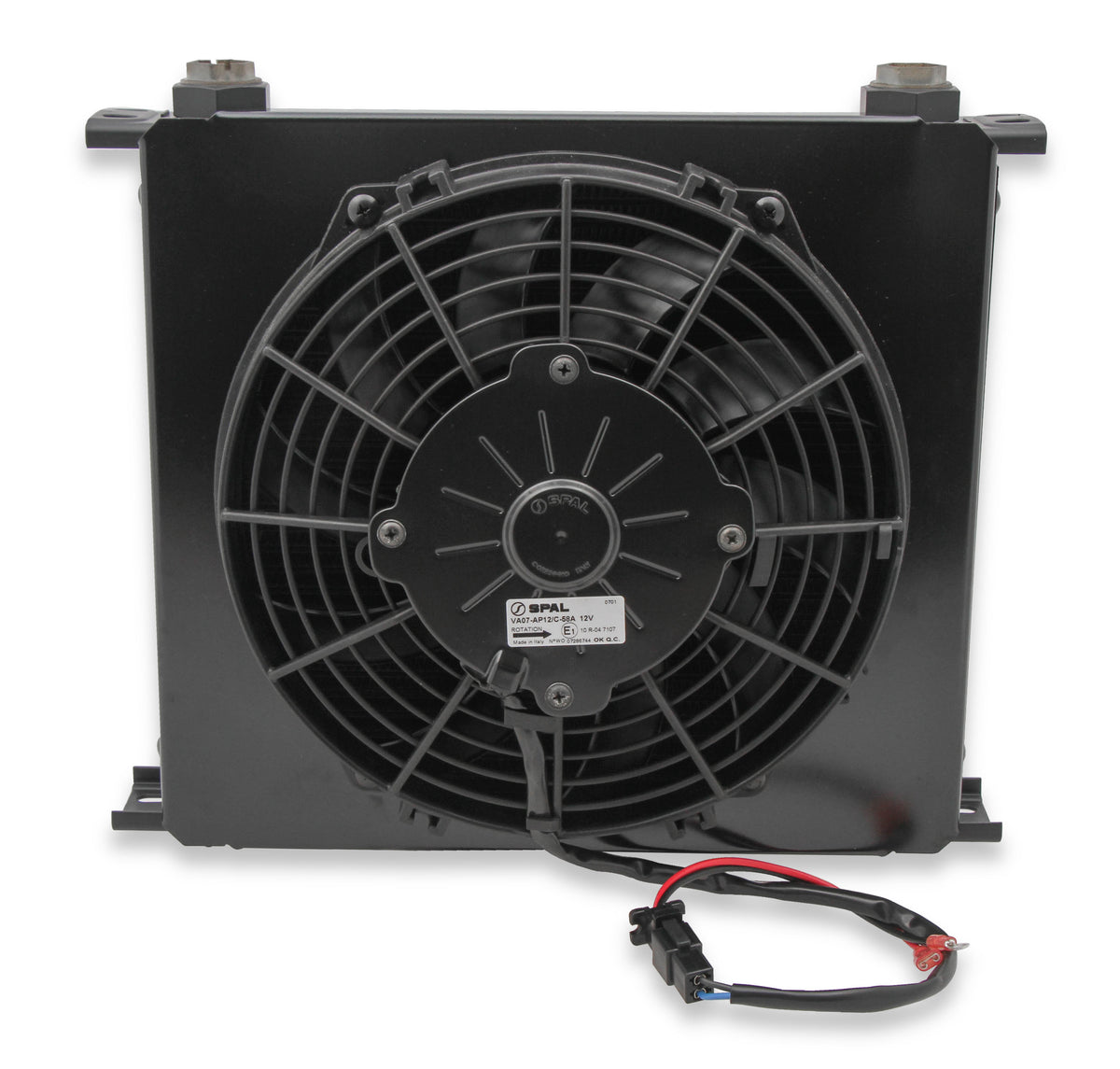

- (3) Fan Pack Style Coolers Include the Oil Cooler, Spal Cooling Fan(s) & Shroud

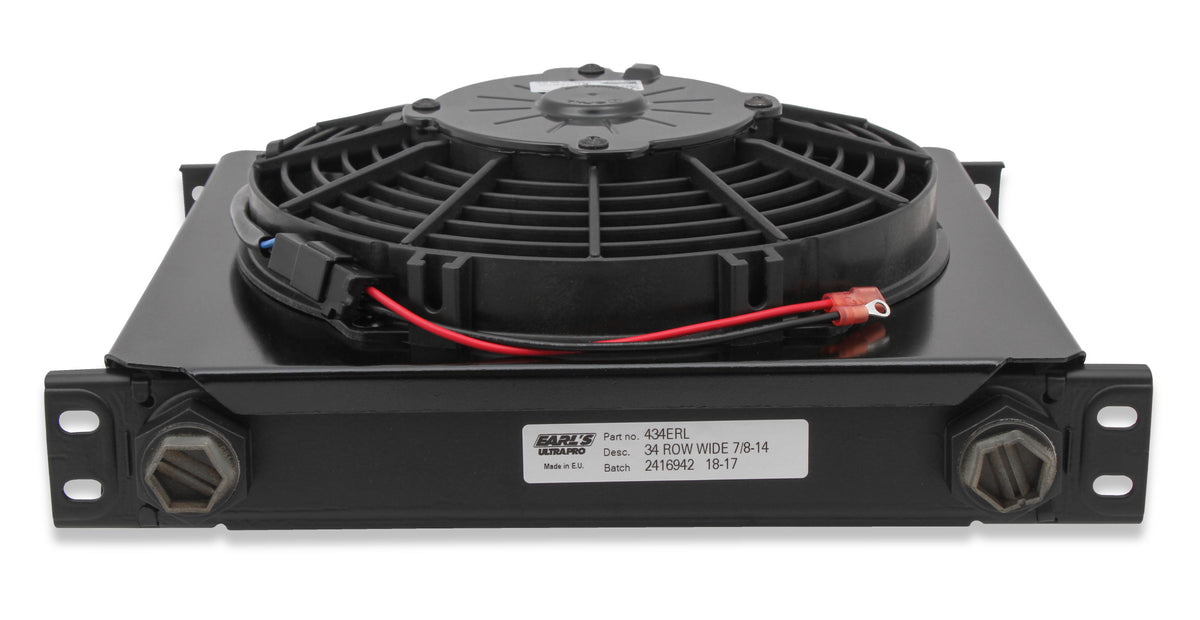

- Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings)
- Optional Mounting Brackets – Sold Separately
Specifications
- AMP DRAW: 7.4
- Application: Engine Oil Cooler
- Blade Style: Curved
- Body Width (Overall): 13.000"
- Brackets Included: No
- Brand: Earl's
- Category: Belts and Cooling

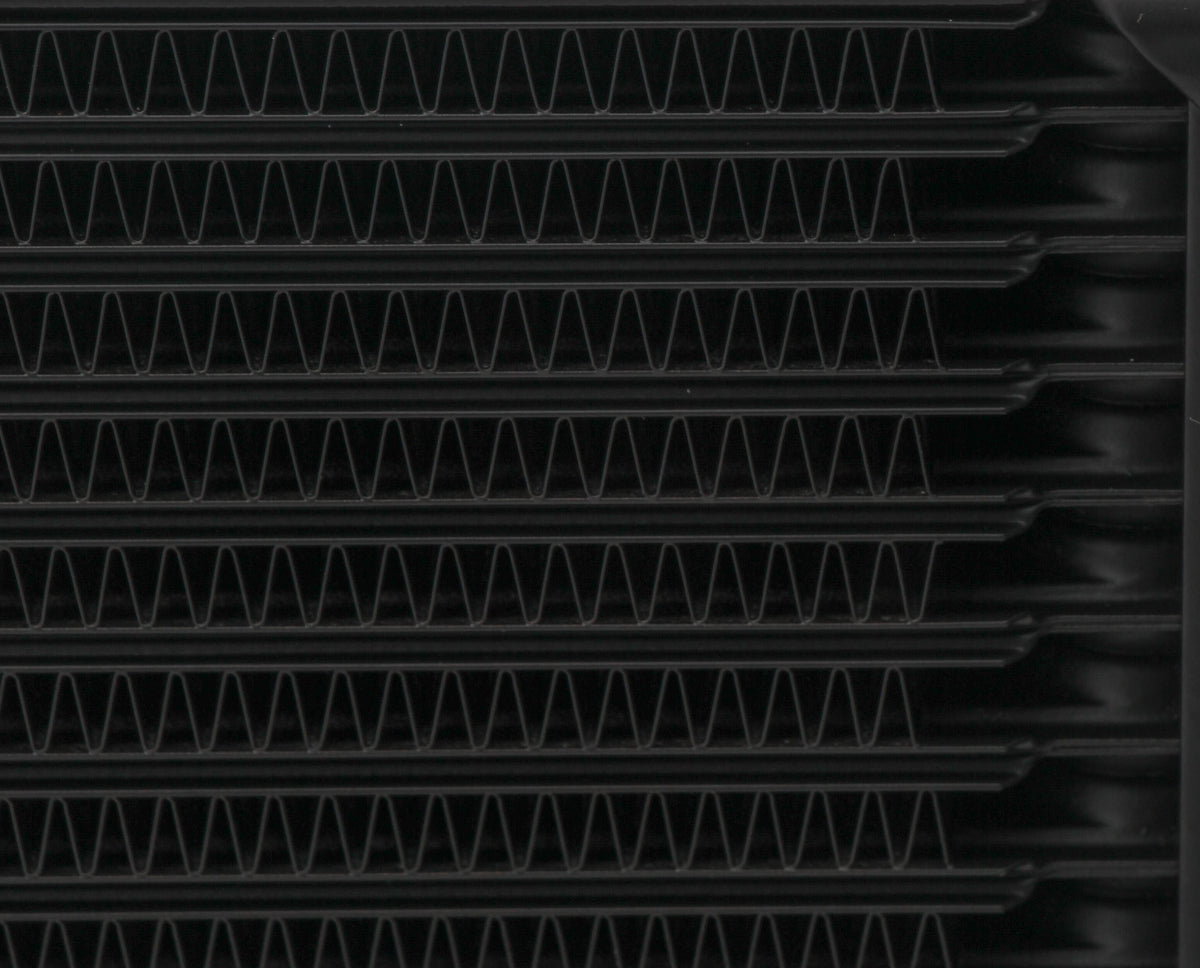

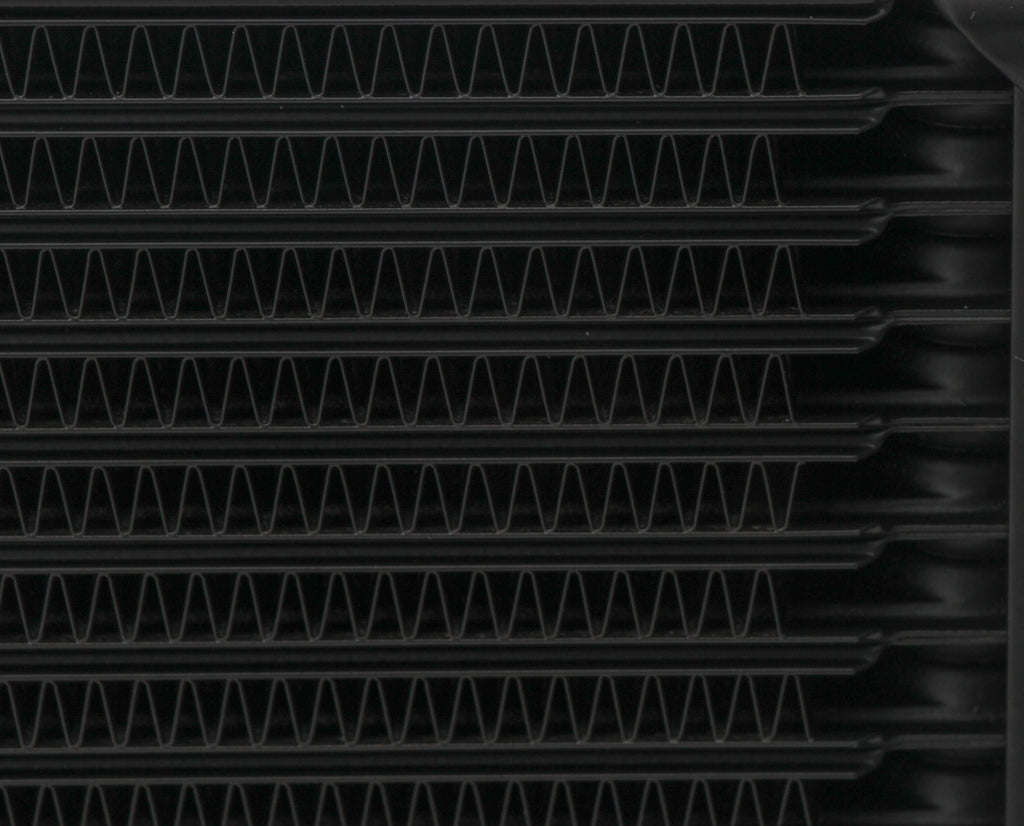

- Construction: Stacked Plate - Brazed
- Cooler Fittings: AT585108ERL
- Cooler Fittings: AT585112ERL
- Cooler Fittings: 585110ERL
- Cooler Fittings: AT585110ERL
- Cooler Fittings: 585106ERL
- Cooler Fittings: 585108ERL
- Cooler Fittings: 585112ERL
- Cooler Fittings: AT585106ERL
- Cooler Fittings Included: No
- Emission Code: 5
- Engine HP Range: 400-475 HP
- Engine Oil BTU Range: 43,000-59,000
- Fan Diameter: 9.000
- Fan Style: Puller
- Fan Type: Electric
- Finish: Black
- Fitting Centers: 9.530"
- Height: 10.390"
- Material: Aluminum
- Max Fan CFM: 708
- Mounting Bracket Width: 12.200"
- Mounting Brackets: 400ERL
- Number Of Blades: 10
- part type: Engine Oil Cooler
- Port Size: 7/8-14 Female (-10 O-Ring Boss)
- Product Line: UltraPro w/ Fan Pack
- Product Type: Oil Cooler
- ROWS: 34 Rows
- Shroud Material: Aluminum
- Sub Category: Radiators, Coolers and Related Components
- Temperature Range: -40° F to 302° F
- Thickness: 4.380"
- Voltage: 12V
- Volume: .75 Quarts
- Warning: California Proposition 65
- Weight: 8.95 Lbs
- Width: Wide Cooler
- Width (Less Mounting Ears): 11.125"
Universal application. Confirm dimensions and installation requirements.
