Dinan Big Turbo - 2012-2019 BMW 'F' Chassis N55

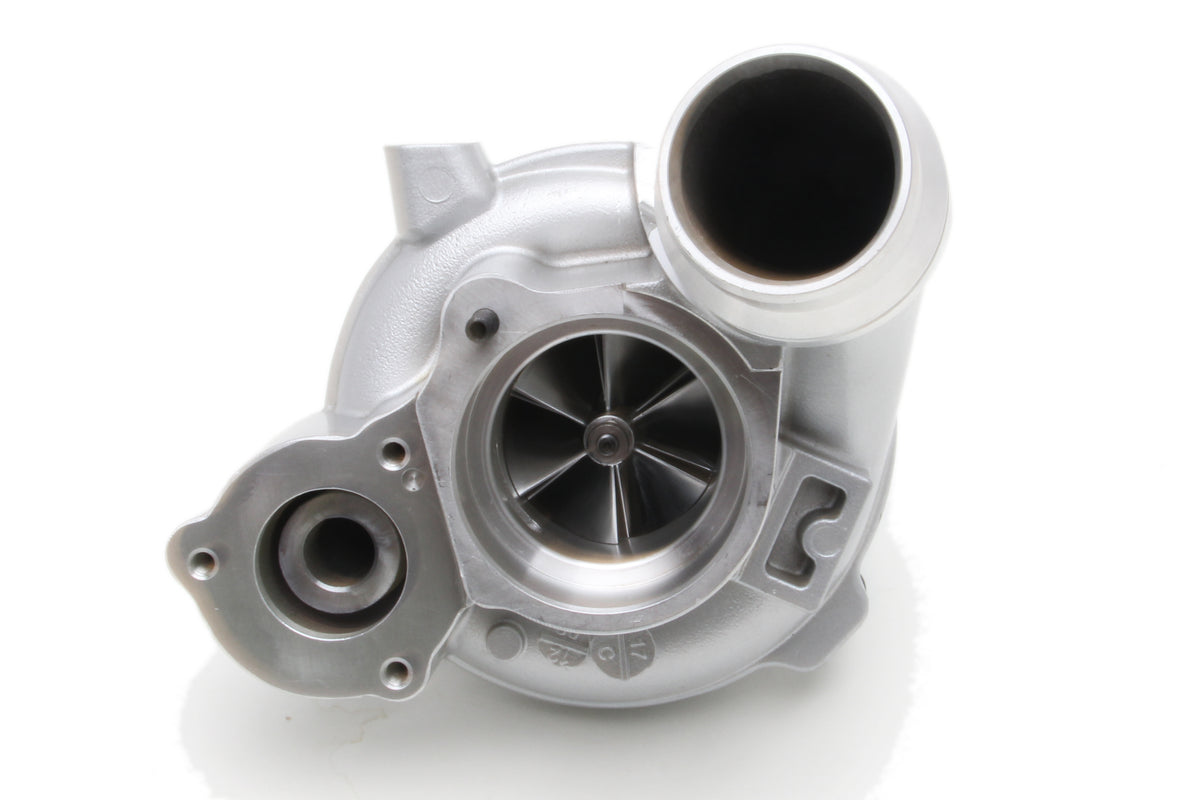

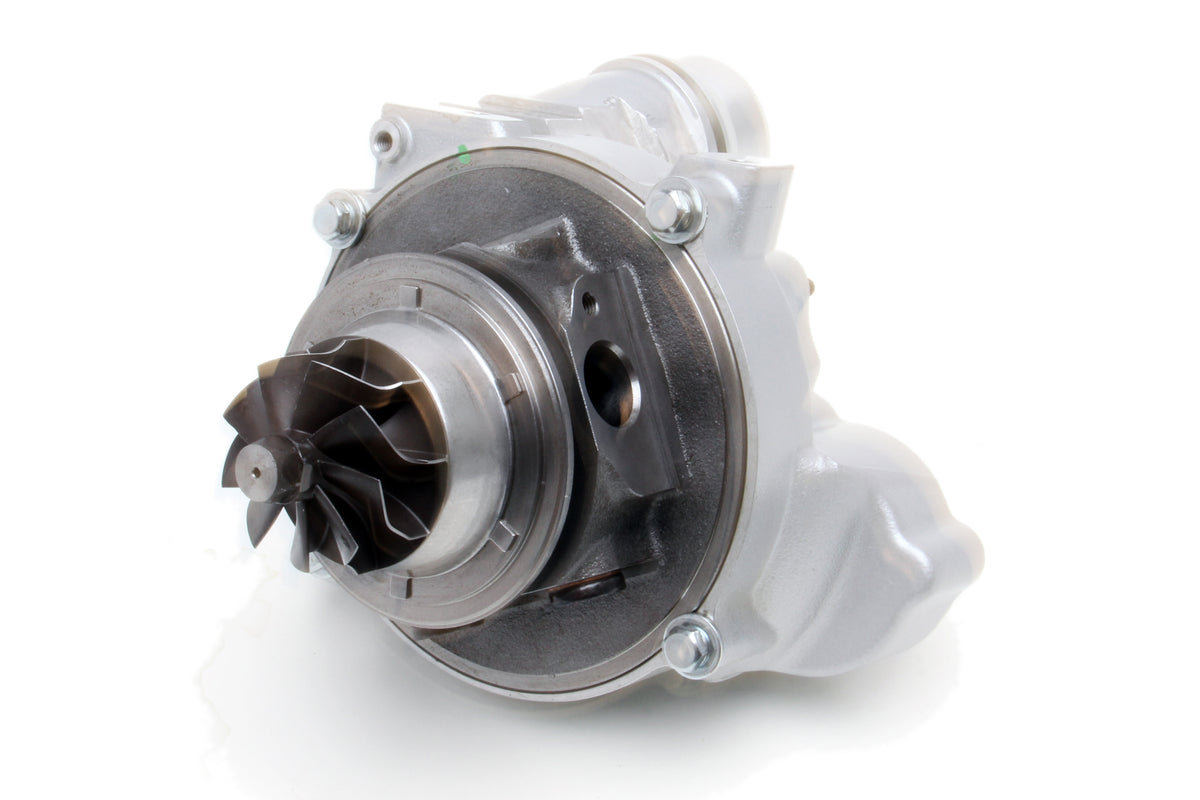

For the racing enthusiast or those just looking for the best this is the ultimate upgrade to fully maximize the power output of your EWG N55 engine. The compressor wheel inside the turbocharger is increased in size allowing 30% greater flow thus enabling additional boost pressures at higher engine speeds while retaining efficiency. These are fully cast turbos that are manufactured to Dinan specifications along with an upgraded thrust system over the stock turbo to ensure a reliable and prolonged life. In order to attain maximum advertised power gains, these big turbos will need to be paired with the approriate Dinan tuning, as well as an upgraded intercooler (Dinan Dual Core Intercooler where applicable) to fully regulate the boost increase and deliver a polished product.

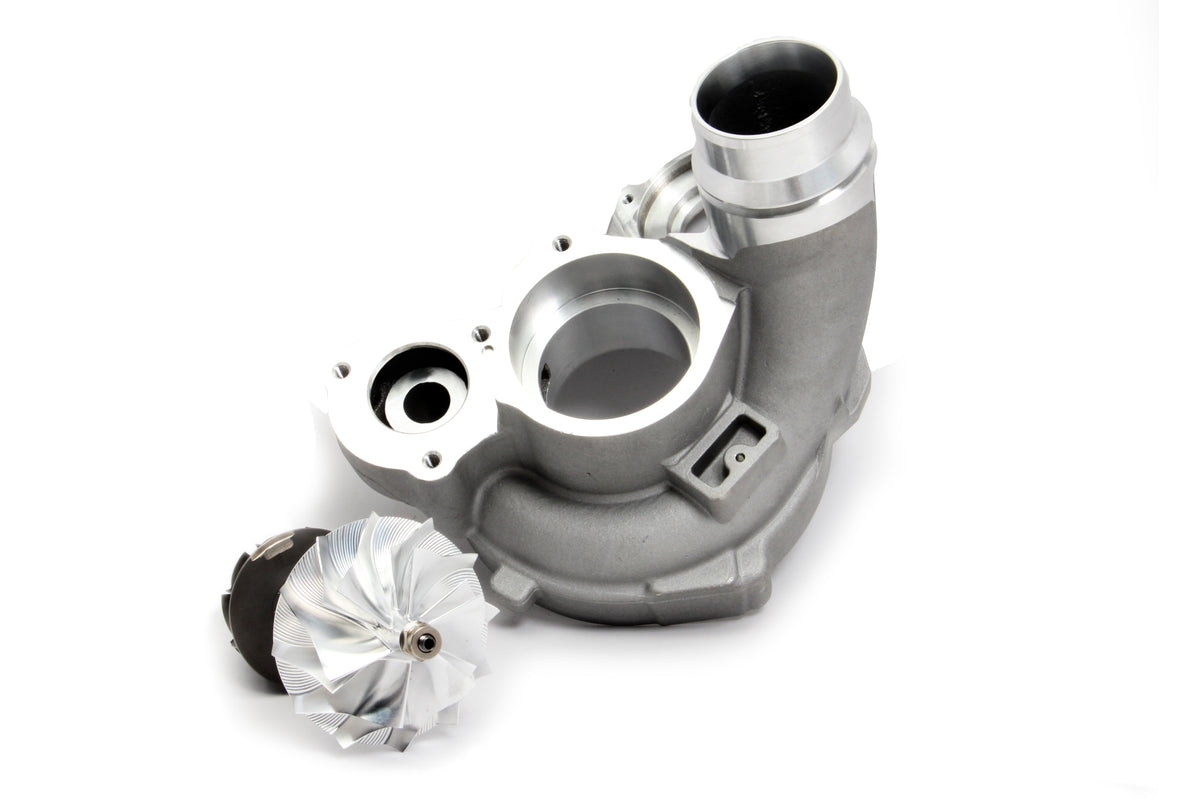

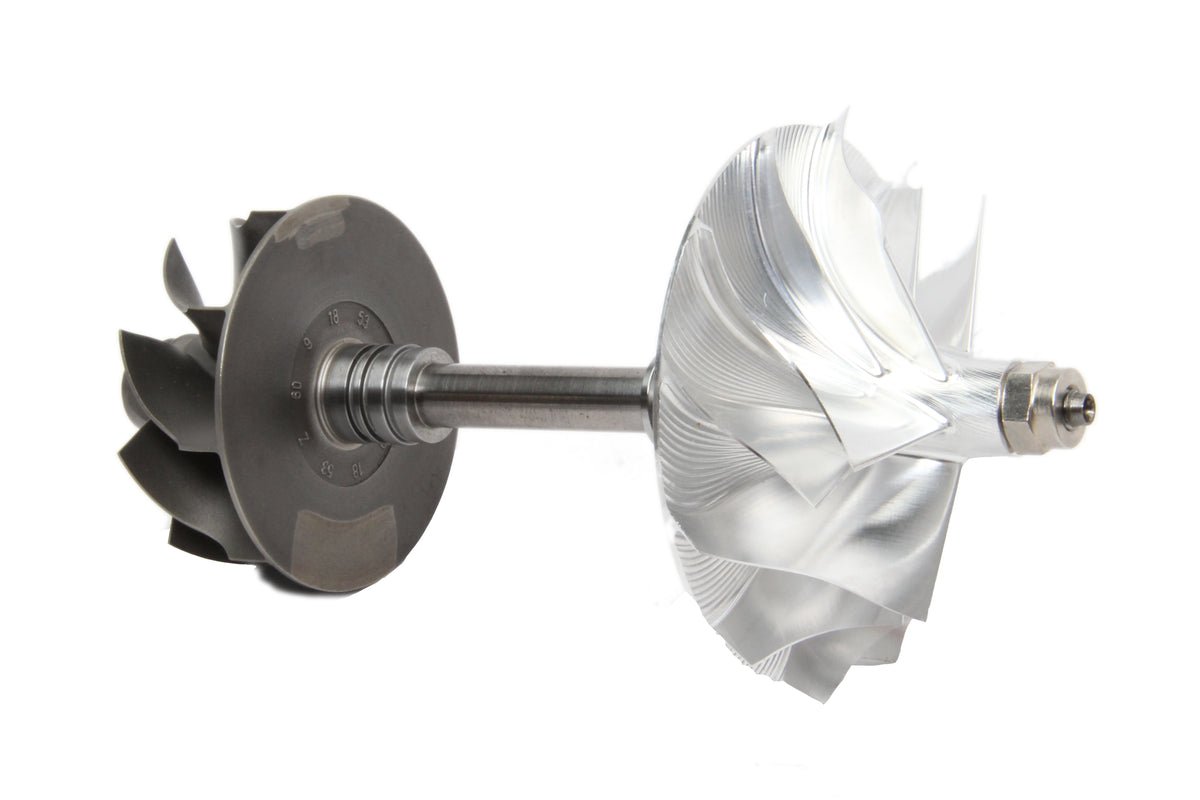

• Larger billet compressor/impeller wheel that allows ~30% greater flow over stock which then enables additional boost to be realized while retaining efficiency.
• Turbo assembly is compatible with electric wastegate vehicles only.
• Peak power w/ Stage 2 Flash (M2): 417 BHP @ 6500 RPM and 440 LB-FTs @ 3500 RPM with max gains of 48 BHP @ 4000 RPM and 64 LB-FTs @ 3000 RPM with software, turbo, and intercooler on 93 octane. Race gas options also available.
• Peak power w/ Stage 2 Flash (Non-M2): 384BHP @ 5500 RPM and 439 LB-FTs @ 3500 RPM and a max gain of 122 BHP @ 4500 RPM and 162 LB-FTs @ 3000 RPM with software, turbo, and intercooler on 93 octane. Race gas options also available.
• Dinan Installation instructions detail a procedure which is quicker than BMW's turbo replacement procedure saving the end-user money and time at the shop (Applicable to RWD vehicles only).
• Includes o-rings and gaskets needed for complete installation on a RWD vehicle only. If installing on an xDrive vehicle Dinan P/N D313-0117 is required for additional installation hardware.
• Factory matching new car warranty (4yr/50k) when run in Dinan specification.
• 50 State Emissions legal; CARB EO # D-176-52.

Specifications

• Brand: Dinan
• Category: Air and Fuel Delivery
• Dinan Point Value: 2
• Emission Code: 1
• Height: 9
• Labor Time (Hours): 11.5
• Length: 14
• Product Type: Turbocharger
• Sub Category: Turbocharger, Supercharger and Ram Air
• Warning: California Proposition 65
• Weight: 13
• Width: 14

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2012–2015 BMW 335i
• 2012–2016 BMW 535i
• 2012–2016 BMW 535i xDrive
• 2012–2017 BMW 535i GT
• 2012–2017 BMW 535i GT xDrive
• 2012–2017 BMW X3
• 2012–2018 BMW 640i
• 2013–2015 BMW 335i xDrive
• 2013–2015 BMW 740Li
• 2013–2015 BMW 740Li xDrive
• 2013–2015 BMW 740i
• 2013–2019 BMW 640i Gran Coupe
• 2014–2016 BMW 335i GT xDrive
• 2014–2016 BMW 435i
• 2014–2016 BMW 435i xDrive
• 2014–2016 BMW M235i
• 2014–2018 BMW 640i xDrive
• 2014–2018 BMW X5
• 2014–2019 BMW 640i xDrive Gran Coupe
• 2015–2016 BMW 435i Gran Coupe
• 2015–2016 BMW 435i xDrive
• 2015–2016 BMW 435i xDrive Gran Coupe
• 2015–2016 BMW M235i
• 2015–2016 BMW M235i xDrive
• 2015–2016 BMW X4
• 2015–2019 BMW X6
• 2016 BMW M235i xDrive
• 2016–2018 BMW M2
• 2016–2018 BMW X4
