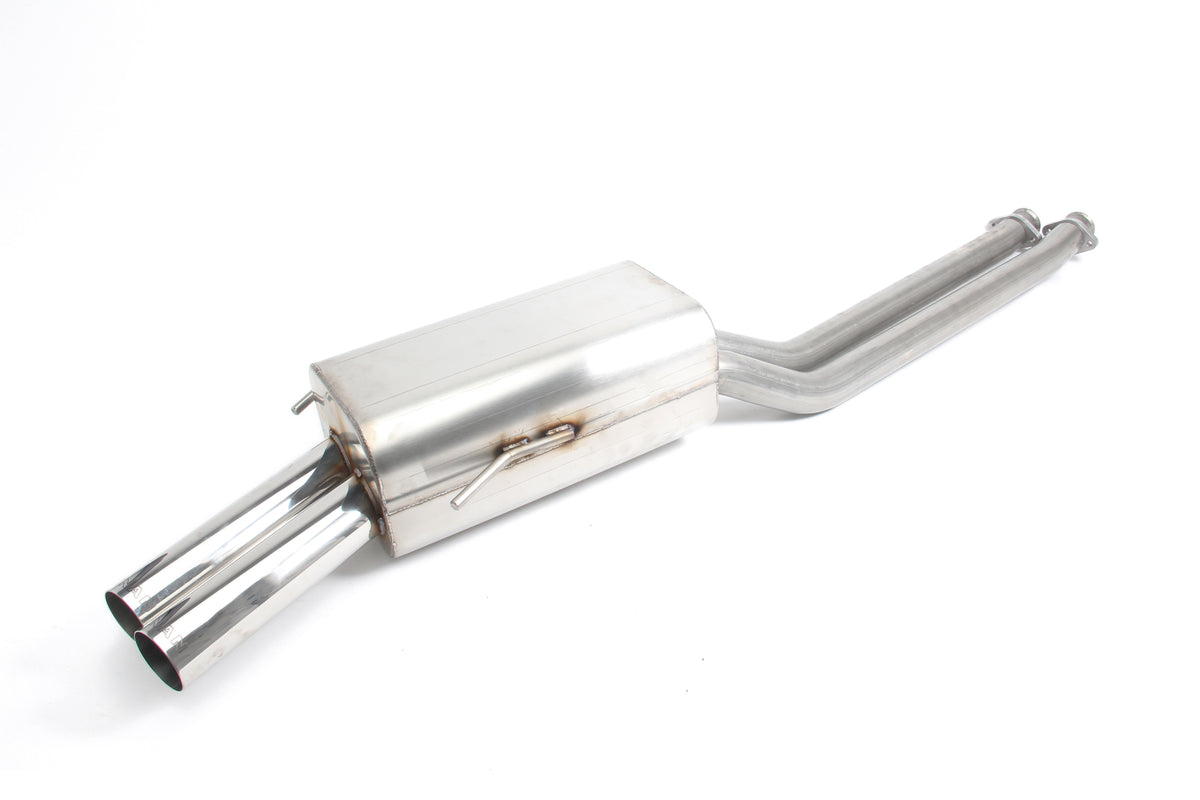

Dinan Free Flow Axle-Back Exhaust - 1992-1999 BMW 3-Series

Dinan's Free Flow Exhaust for the 3 series models provides increased flow for power gains without the excessive noise associated with typical ''performance'' mufflers. The Dinan exhausts feature rigid and durable muffler cases manufactured from 20 gauge 304-stainless steel for optimum corrosion resistance. Internally, the systems feature Dinan's Tuned Resonance Chamber technology which provides the optimum balance between maximum power gains and a civilized, yet sporty exhaust note. The Dinan exhaust also provides substantial weight reduction compared to the stock muffler, weighing in at just over 17 lbs. compared to the stock system at 28 lbs., Dual 2.5 inch diameter polished stainless steel exhaust tips give the cars a tasteful performance look as well.

• More Power: + 9 HP @ 5000 RPM, + 9 LB-FT @ 5000 RPM (w/ software on '95 E36 M3))
• More Power: + 9 HP @ 6500 RPM, + 7 LB-FT @ 6500 RPM (w/ software on the '96-'99 E36 M3)
• More Power: + 6 HP @ 6500 RPM, + 5 LB-FT @ 6500 RPM (w/ software on the E36 328i)
• More Power: + 11 HP @ 4500 RPM, + 13 LB-FT @ 4500 RPM (w/ software on the E36 325i)
• Drone abatement technologies used to reduce cabin resonance
• Enjoyably louder, sportier sound

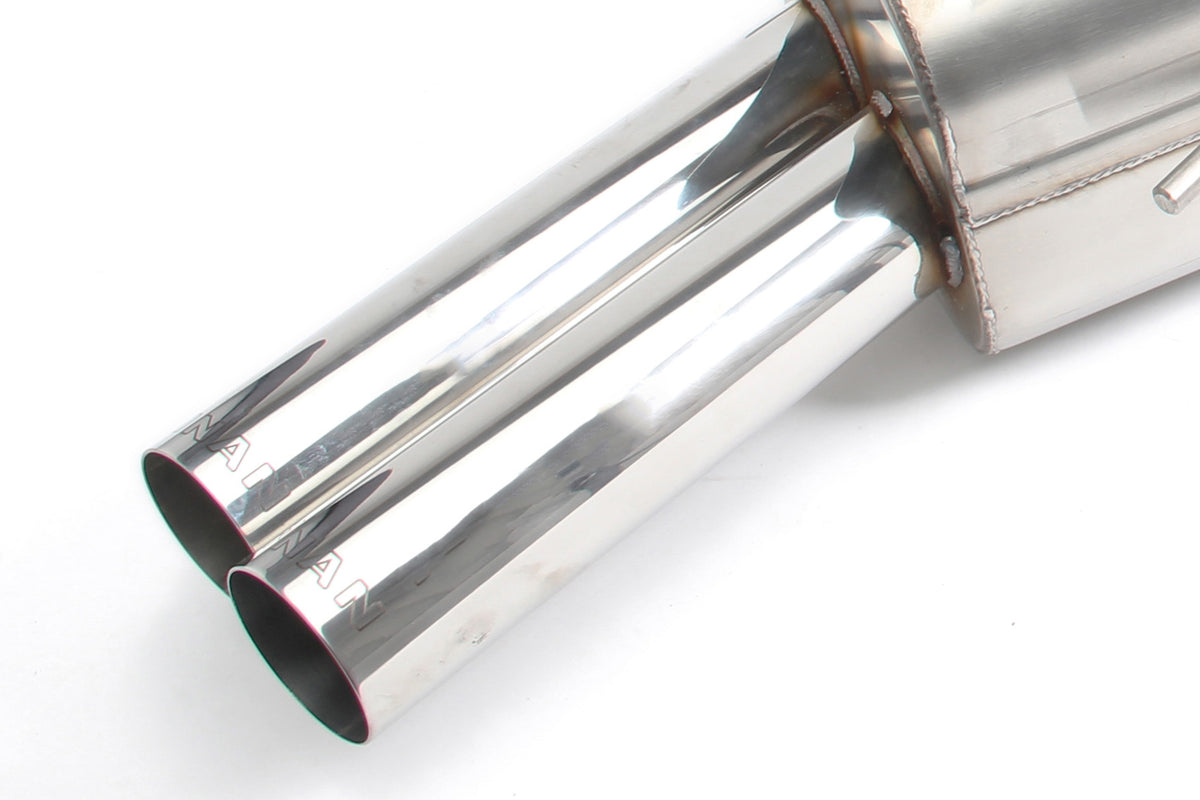

• Dual 2.5" polished and laser engraved exhaust tips
• 11 lbs. lighter than stock (17 lbs. vs. 28 lbs.)
• 100% 304 stainless steel construction
• Uses the factory brackets and hangers for a factory-like fitment

Specifications

• Body Material: T304 Stainless Steel
• Brand: Dinan
• Category: Exhaust
• Clamps Included: Yes
• Dinan Point Value: 3
• Emission Code: 5
• Exhaust Tip Quantity: 4
• Finish: Brushed
• Grade Type: Performance
• Hangers Included: Yes
• Height: 10
• Labor Time (Hours): 1
• Length: 64
• Material: T304 Stainless Steel
• Max HP Gain: 6 - 11 (Depending on application)
• Max Torque (lb-ft) Gain: 5 - 13 (Depending on application)
• Muffler Quantity: N/A
• Pipe Material: T304 Stainless Steel
• Product Type: Axle-Back Exhaust
• Sub Category: Exhaust and Tail Pipes
• Warning: California Proposition 65
• Weight: 47
• Width: 19

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 1992–1995 BMW 325i
• 1995 BMW M3
• 1996 BMW M3
• 1996–1998 BMW 328i
• 1996–1999 BMW 328is
• 1997–1998 BMW M3
