Dinan High Flow Intake System - 2001-2006 BMW 330i

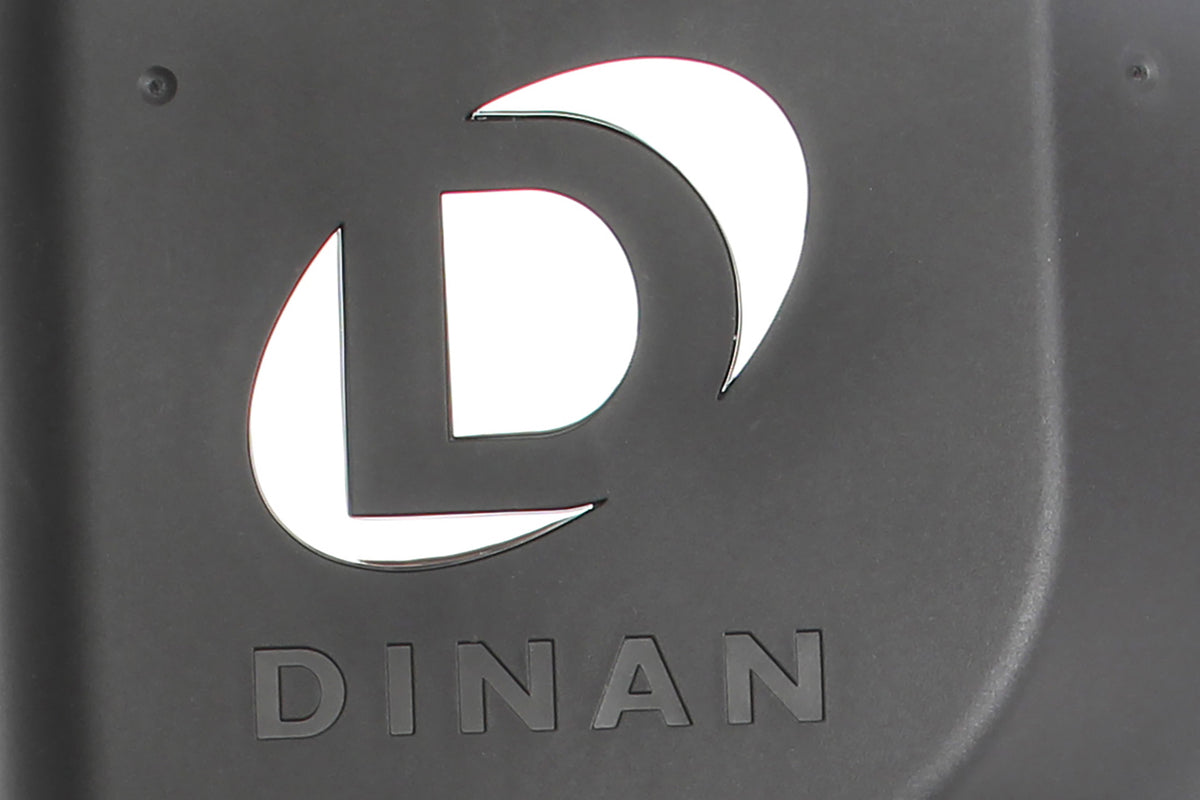

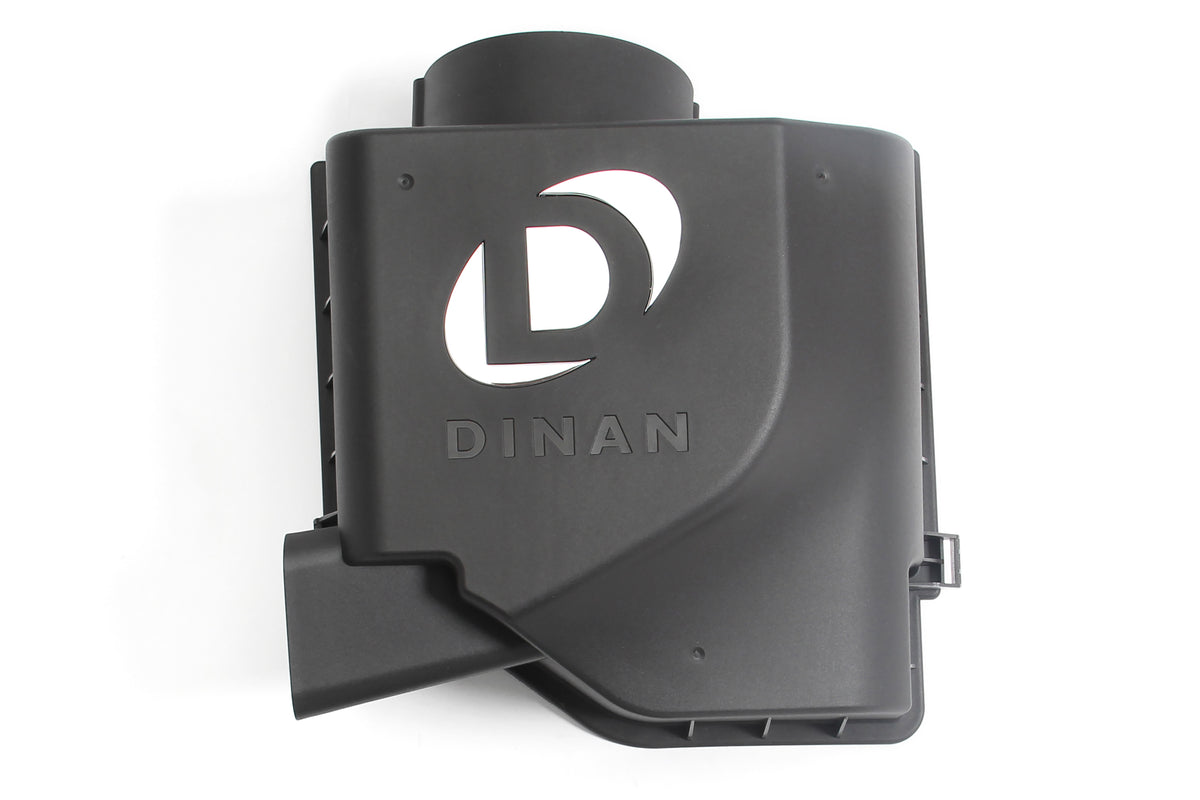

Dinan's High Flow Intake System consists of an injection-molded replacement lid for the stock airbox designed to increase overall volume and accommodate a high flow filter element for optimum intake air-flow. The lid is manufactured using a special composite material, chosen specifically for its ability to resist power robbing under-hood heat. The lid also incorporates an O-ring, completely sealing the air box for maximum pressurization and further insulation against heat-soaking, optimizing performance under varying driving conditions.

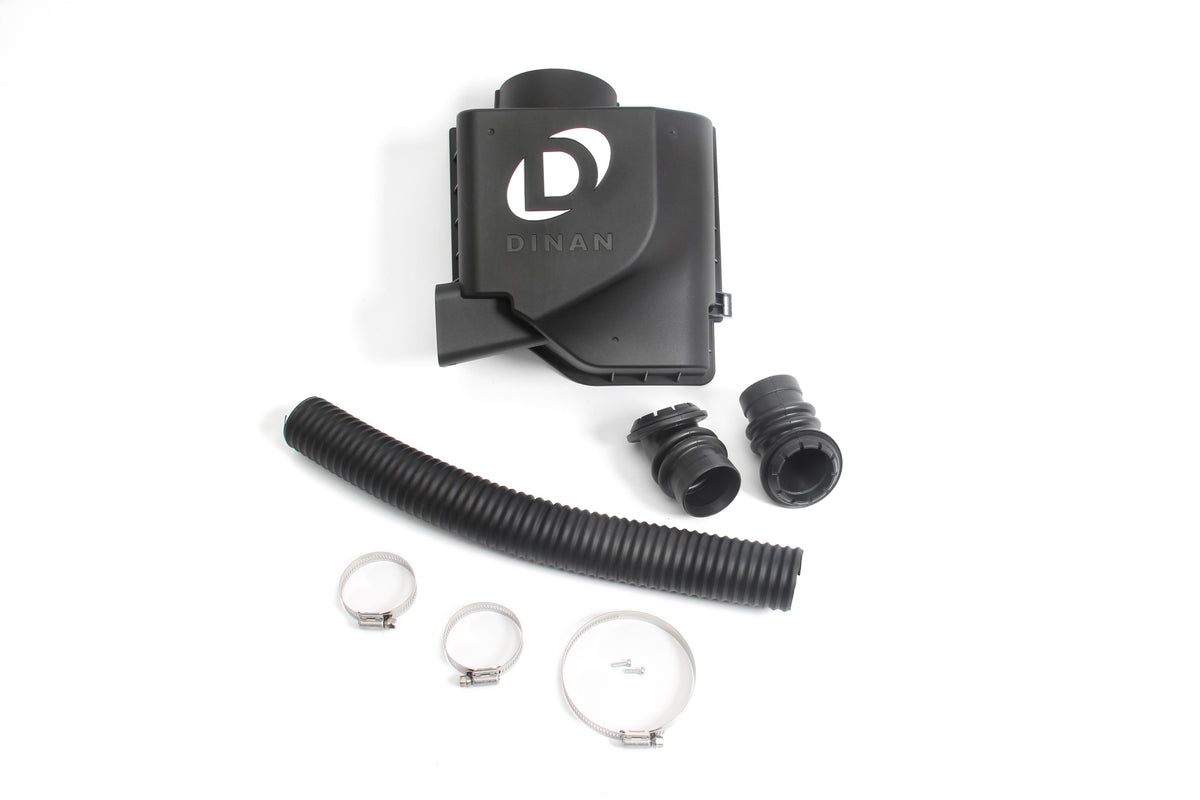

The System also includes a secondary intake duct that scoops up additional cool, oxygen-rich air via the factory brake cooling duct, further improving performance as road speed increases.

• More Power: + 6 HP, + 5 LB-FT (coupled w/ engine software)
• Sealed system for maximum insulation from power robbing heat
• Additional secondary inlet for additional air flow
• Enlarged filter element for optimum flow

Specifications

• Brand: Dinan
• Category: Air and Fuel Delivery
• Dinan Point Value: 3
• Emission Code: 1
• Height: 8
• Labor Time (Hours): 2.5
• Length: 24
• Max HP Gain: 11 @ 6500 RPM
• Max Torque (lb-ft) Gain: 9 @ 6500 RPM
• part type: Air Intake Kit
• Product Type: Cold Air Intake
• Sub Category: Service Kits
• Warning: California Proposition 65
• Weight: 6.1
• Width: 12

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2001–2005 BMW 330i
• 2001–2005 BMW 330xi
• 2001–2006 BMW 330Ci
