Dinan Cold Air Intake - 2018-2023 BMW M5

The M5 is the flagship of the marque and as such deserves to showcase the best possible components. The Dinan Carbon Fiber Cold Air intake for the latest generation of M5 holds true to that philosophy and offers arguably the best performing and most efficient sealed intake solution on the market. Quite possibly the most visually impressive as well.

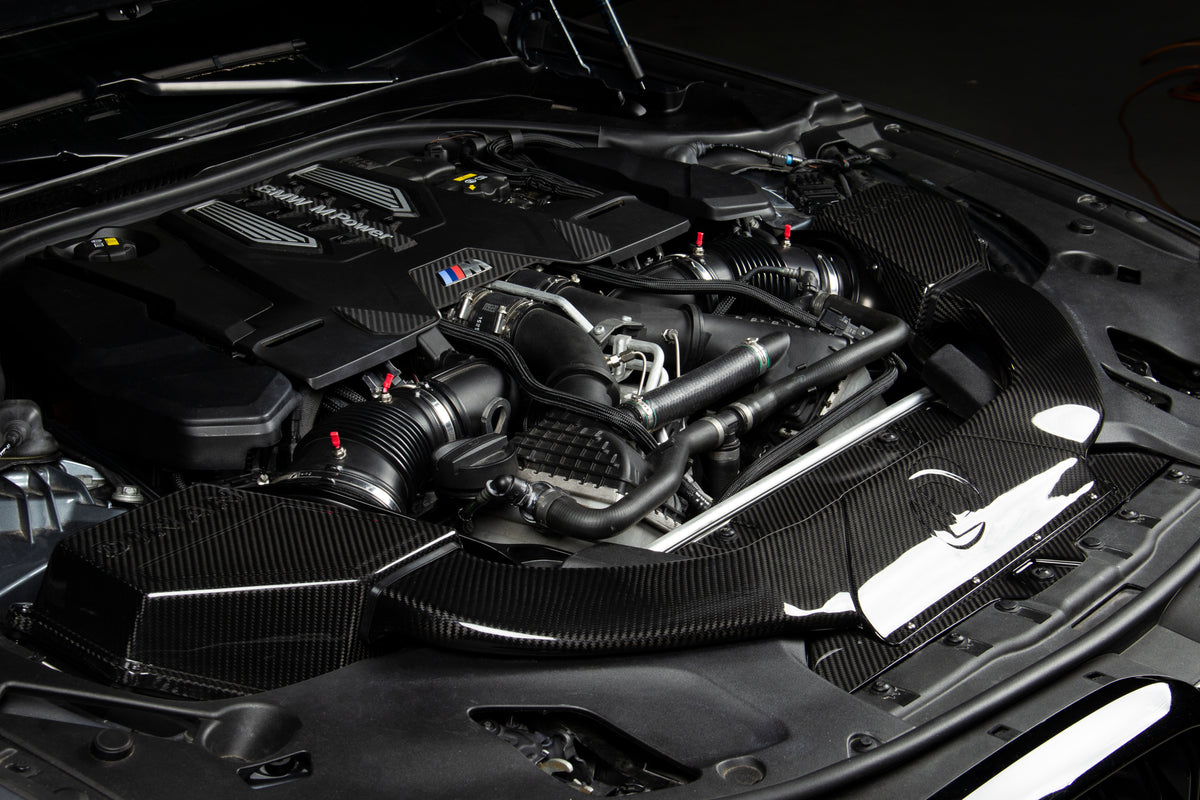

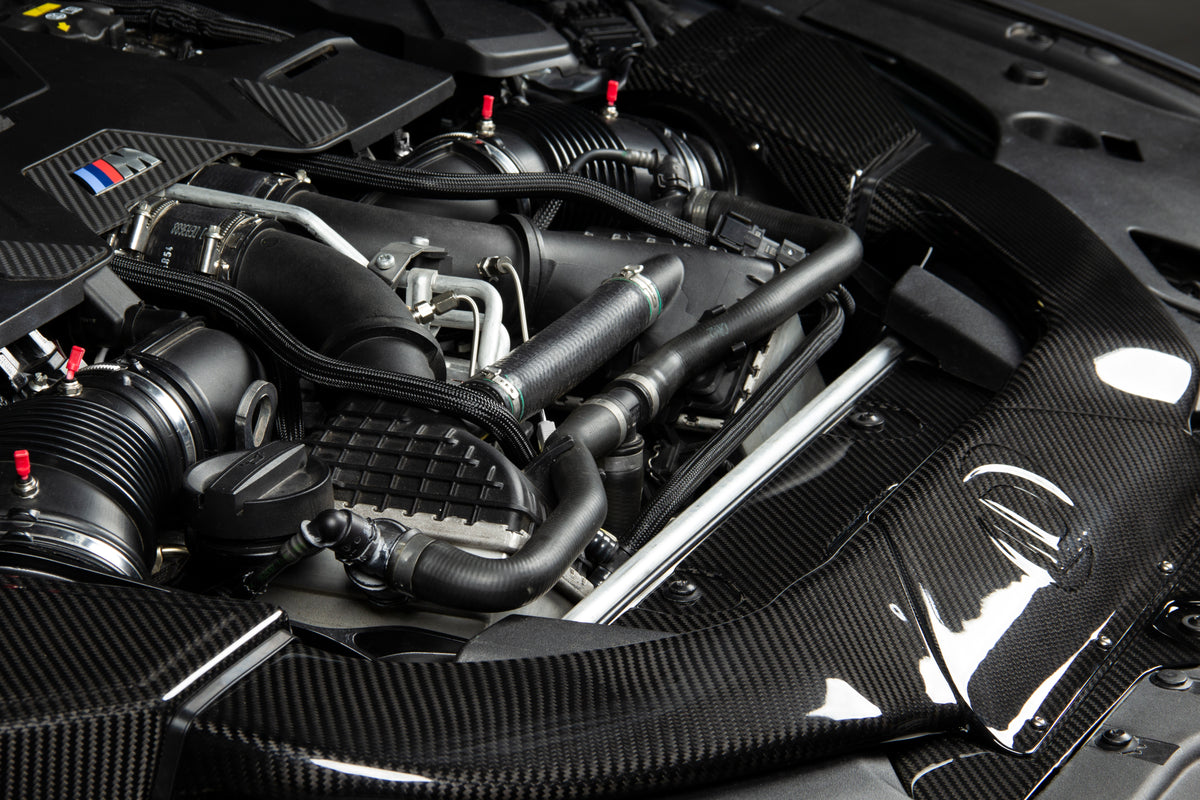

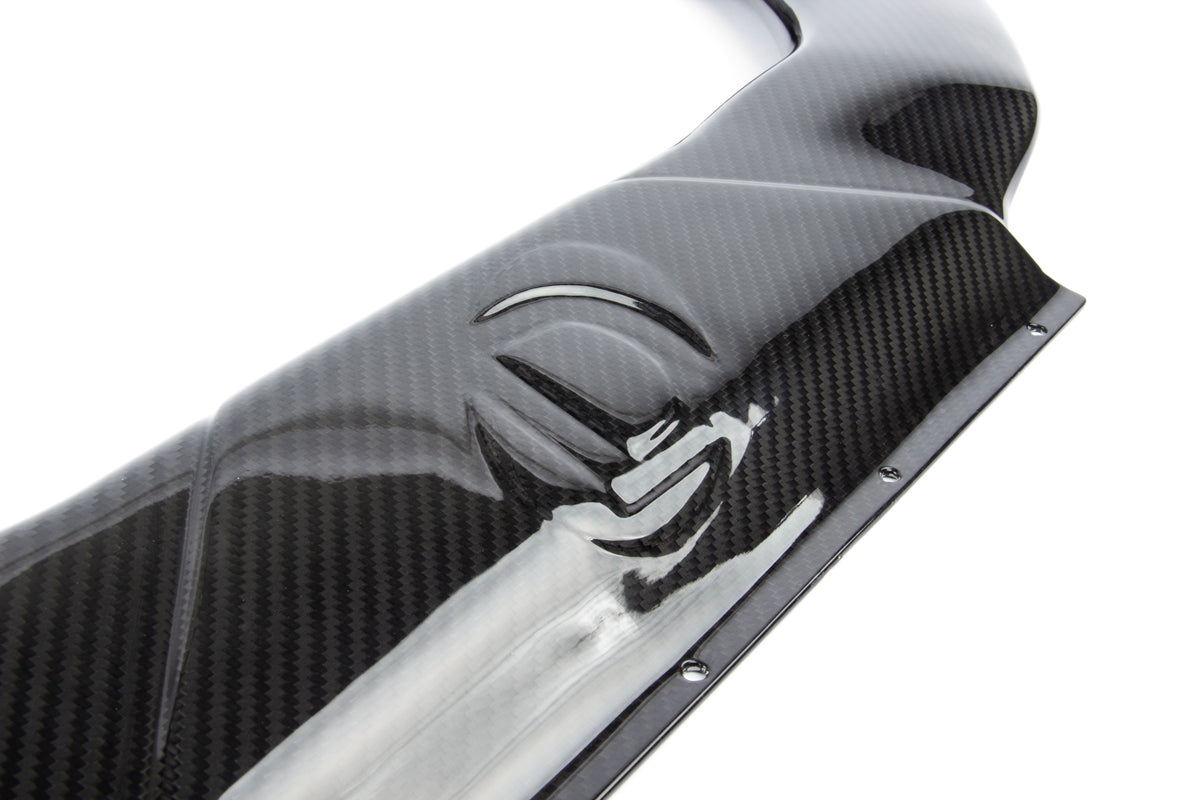

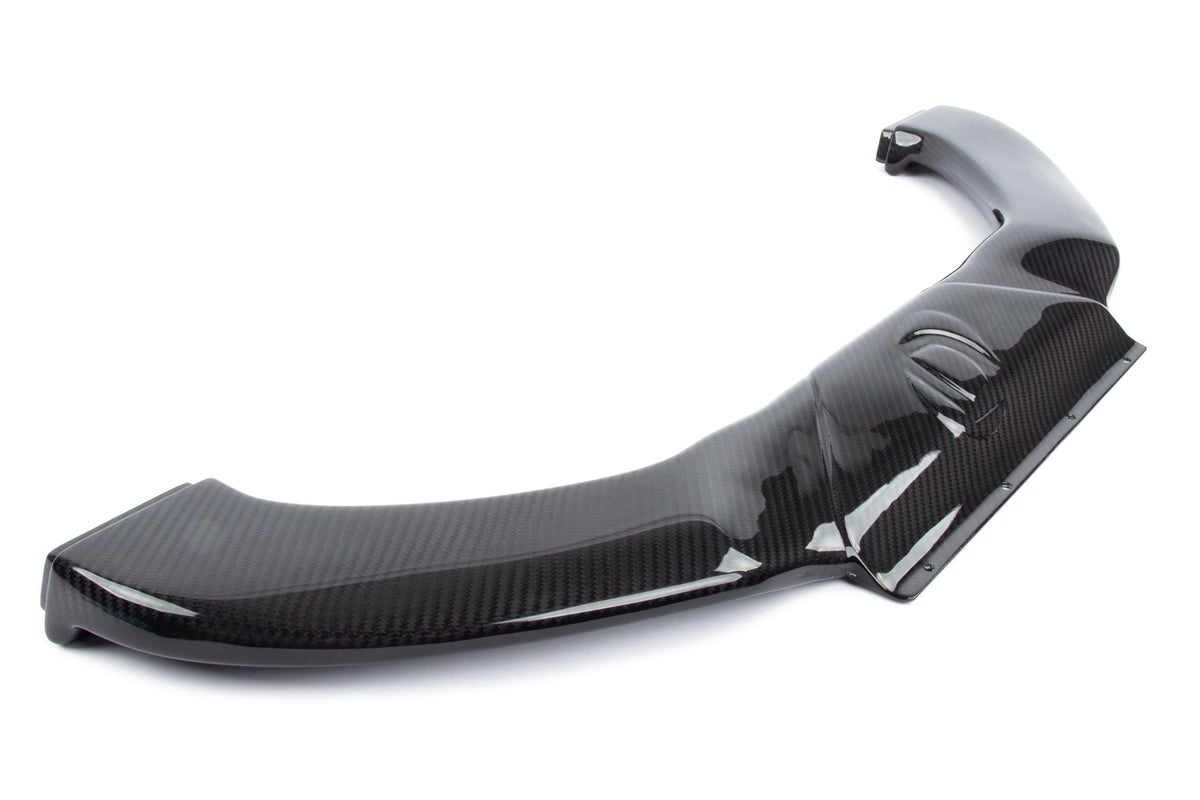

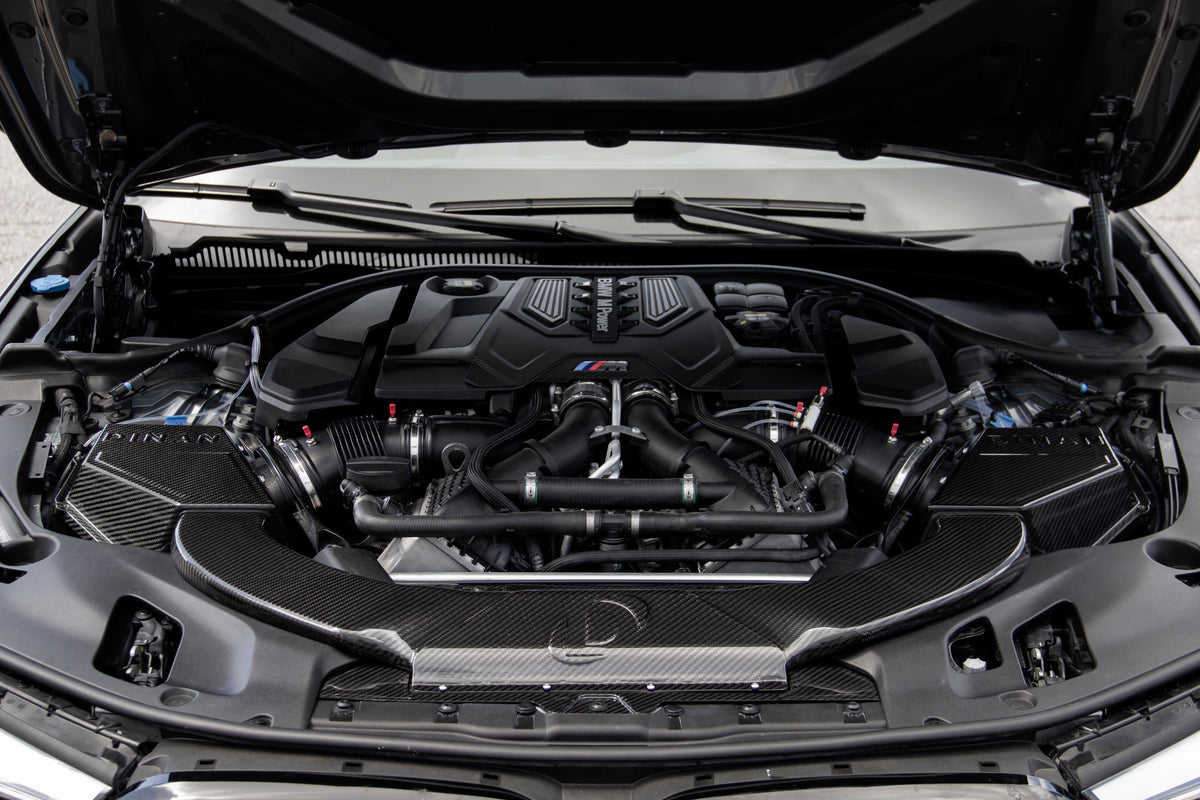

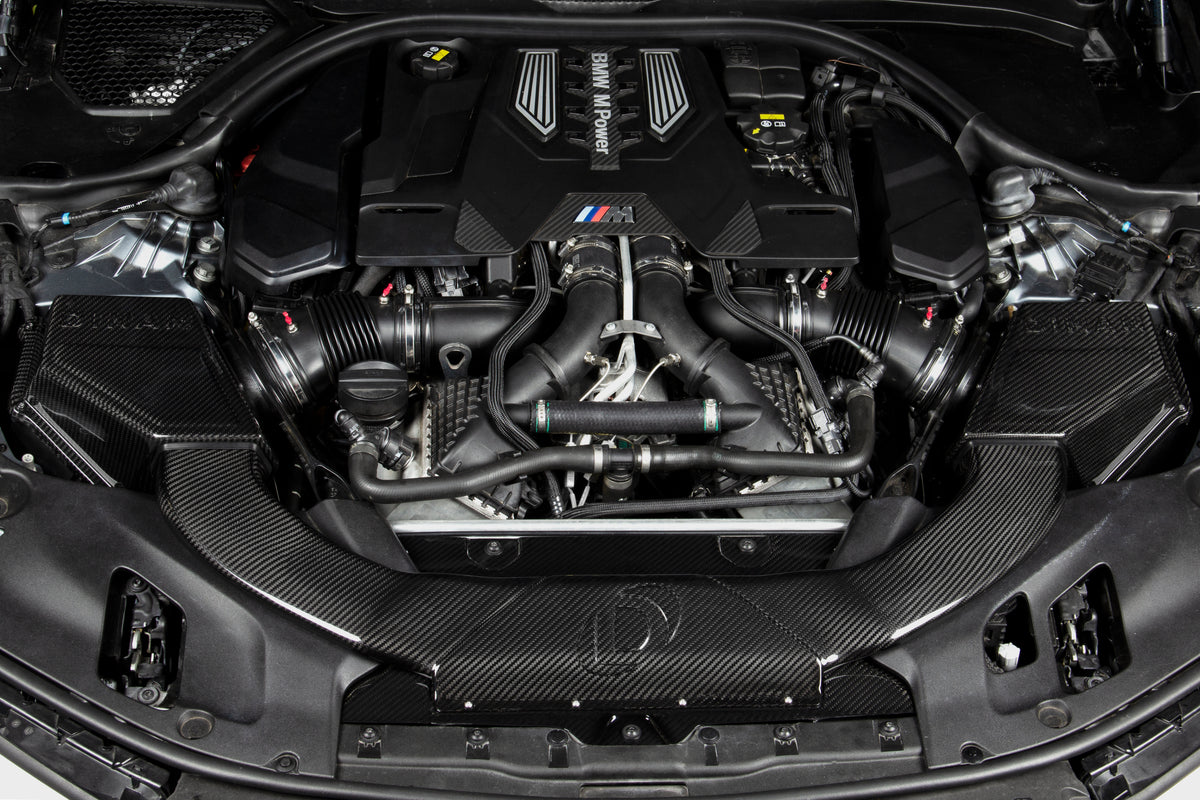

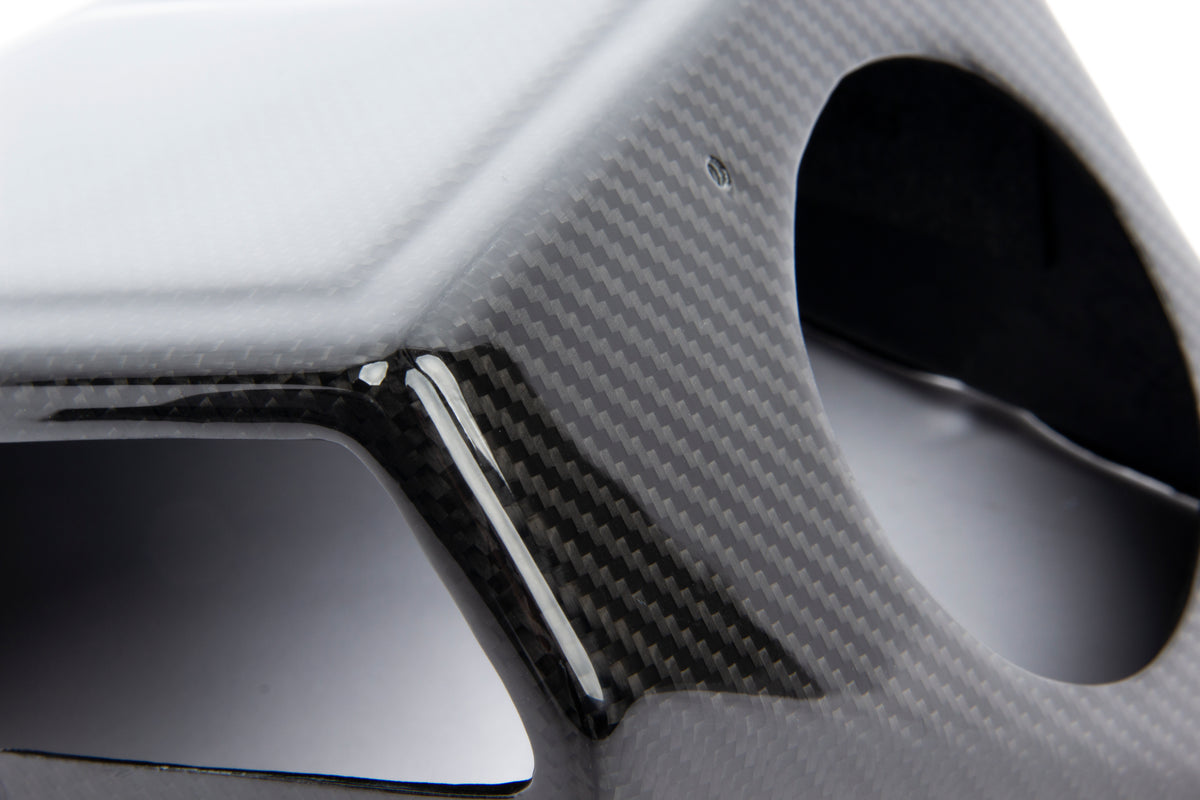

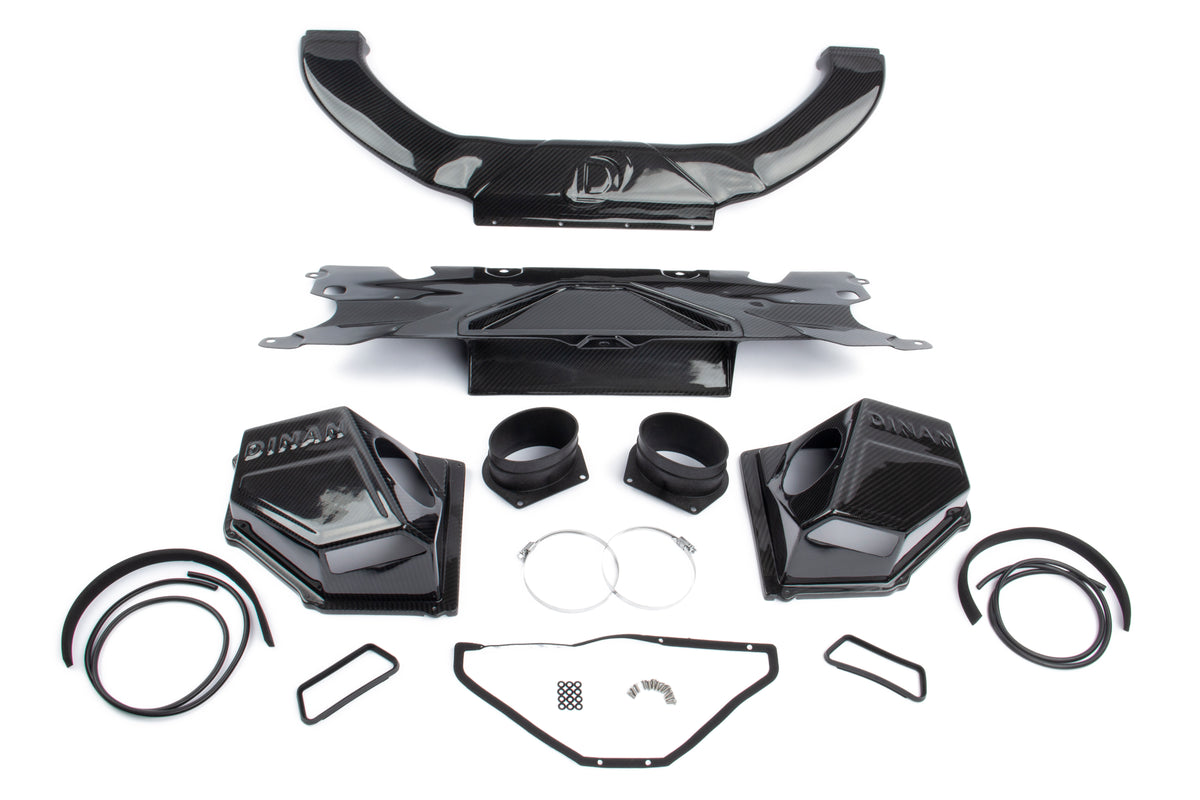

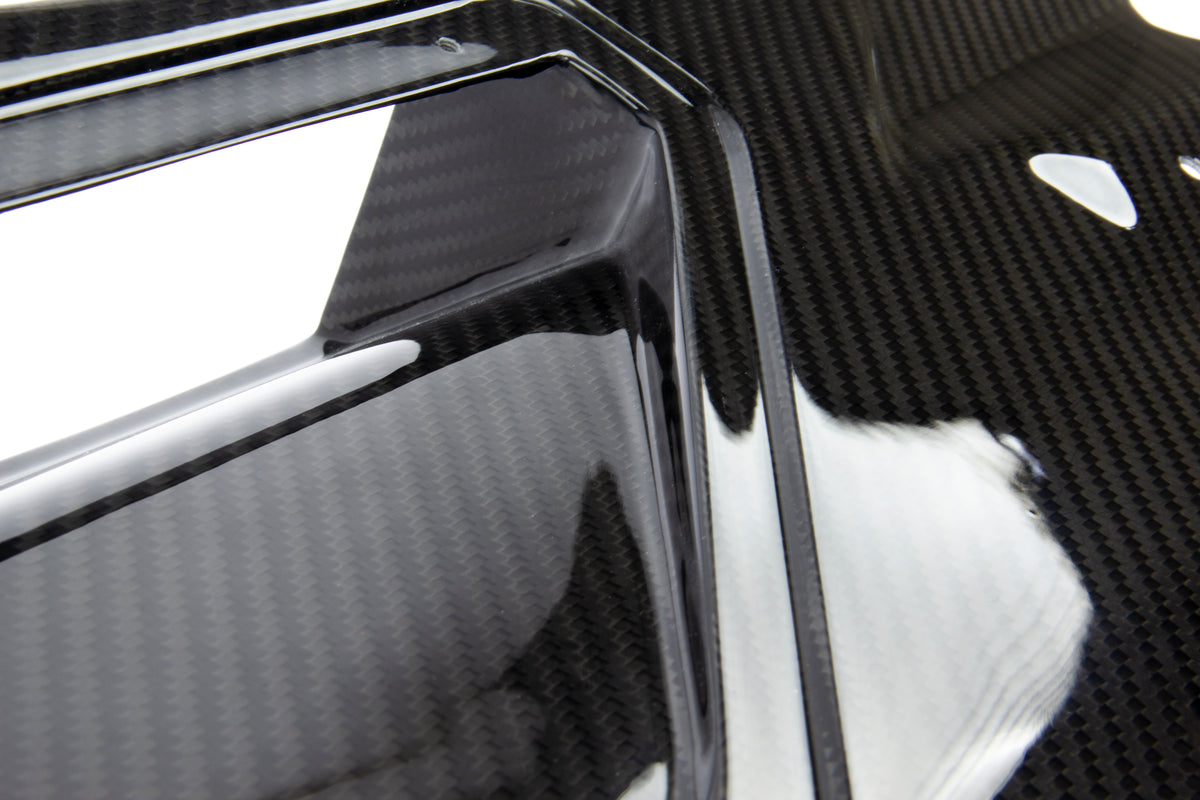

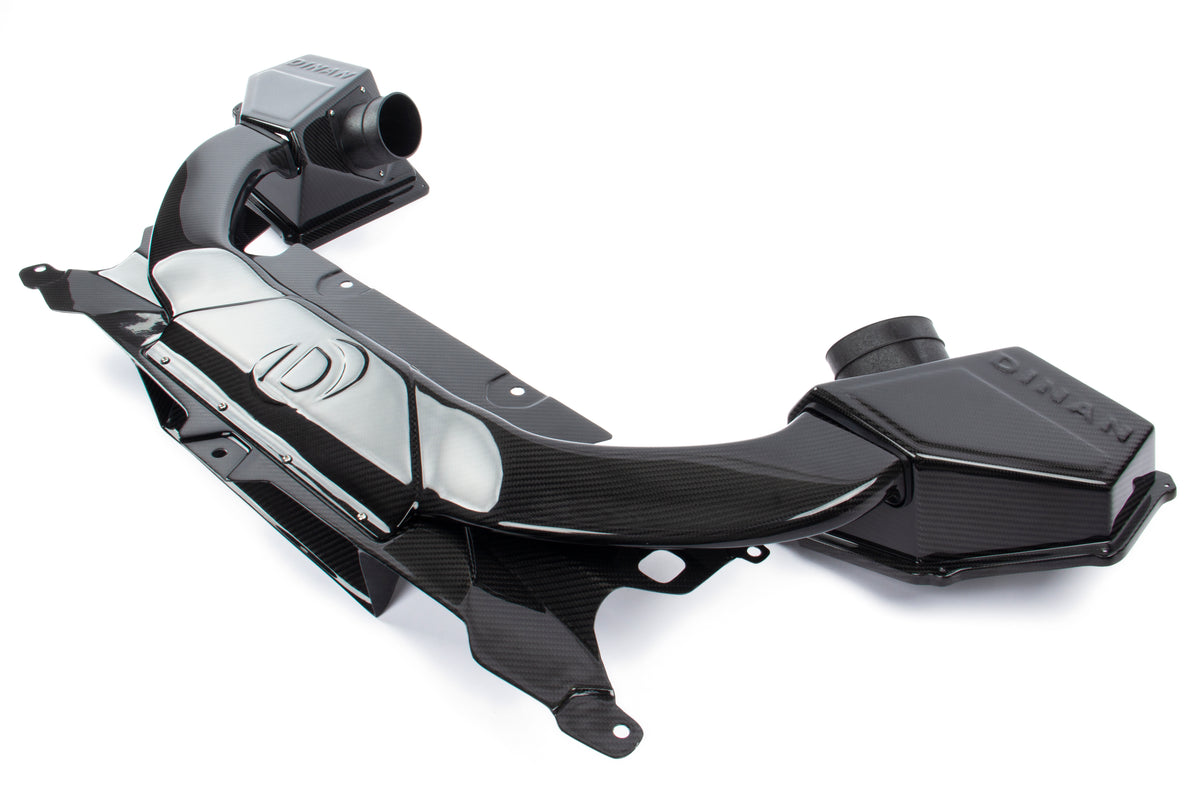

The first thing noticed upon gazing upon the engine bay equipped with the Dinan intake is the sheer amount of gloss UV coated 2x2 carbon fiber. Stretching from one end of the engine compartment to the other, courtesy of a fully functional secondary air inlet wishbone, the material is not only beautiful to look at but serves the purpose of heat deflection as well. The wishbone, which mimics the equally impressive calling card of the F8x M3/M4 engine compartment, is purposeful in a different way. Instead of adding structural integrity, the wishbone serves as the conduit for a secondary air source deriving its contents from a central hood scoop located behind the front grilles. The additional air flow supplements the factory inlet locations on both the left and right air boxes with ambient air from outside of the engine compartment. These air boxes have been enlarged and equipped with massive filters to handle this increased volume and together with the rest of the system allow the intake to flow as efficiently as possible.

While the stock intake system is adequately suited to support up to stage 1 power levels that does not mean there is no performance benefit when upgrading to the Dinan system. Besides its amazing appearance the biggest advantage of the system, by virtue of additional and optimized flow, is the reduction of the pressure depression in the stock system. This equates to the turbo having to work less in order to achieve targeted power. With the turbo working more efficiently this also means a lower pre-turbine backpressure, lower turbocharger shaft speeds, lower turbocharger compressor discharge temperatures, and for the ability to achieve higher boost pressure levels. Coupled with the optional Dinan Turbo Inlets these effects are even more exacerbated and represent ideal optimum flow and efficiency. Paired with the natural improvement to throttle response, a minor bump to the acoustics, and a visual appeal that will leave anyone speechless the Dinan F90 M5 carbon fiber intake system is a perfect complement to the "best."

• Increased turbo efficiency, reliability, and head room.
• More Flow: 11% greater than stock (Stock: 575 CFM, Dinan: 637 CFM @ 28" H2O per bank).
• Improved throttle response.

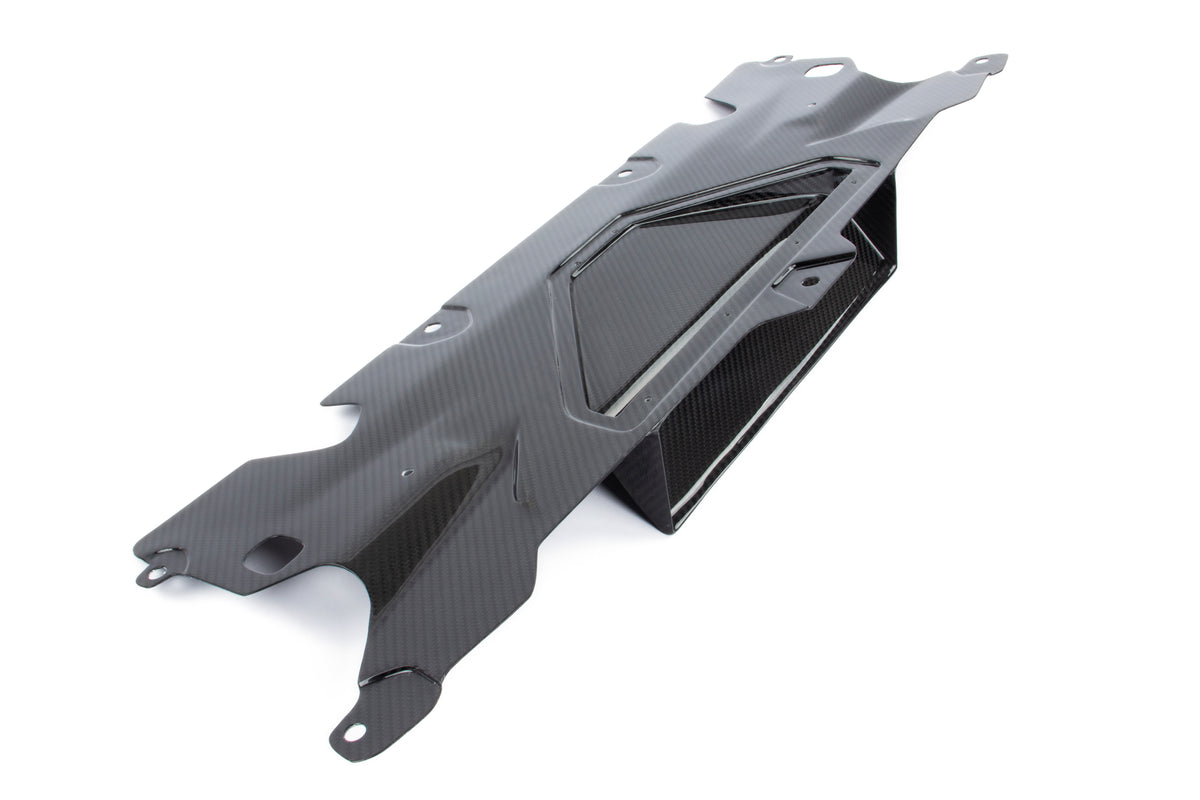

• Center wishbone inlet/scoop incorporated as an additional secondary air source for maximum airflow.

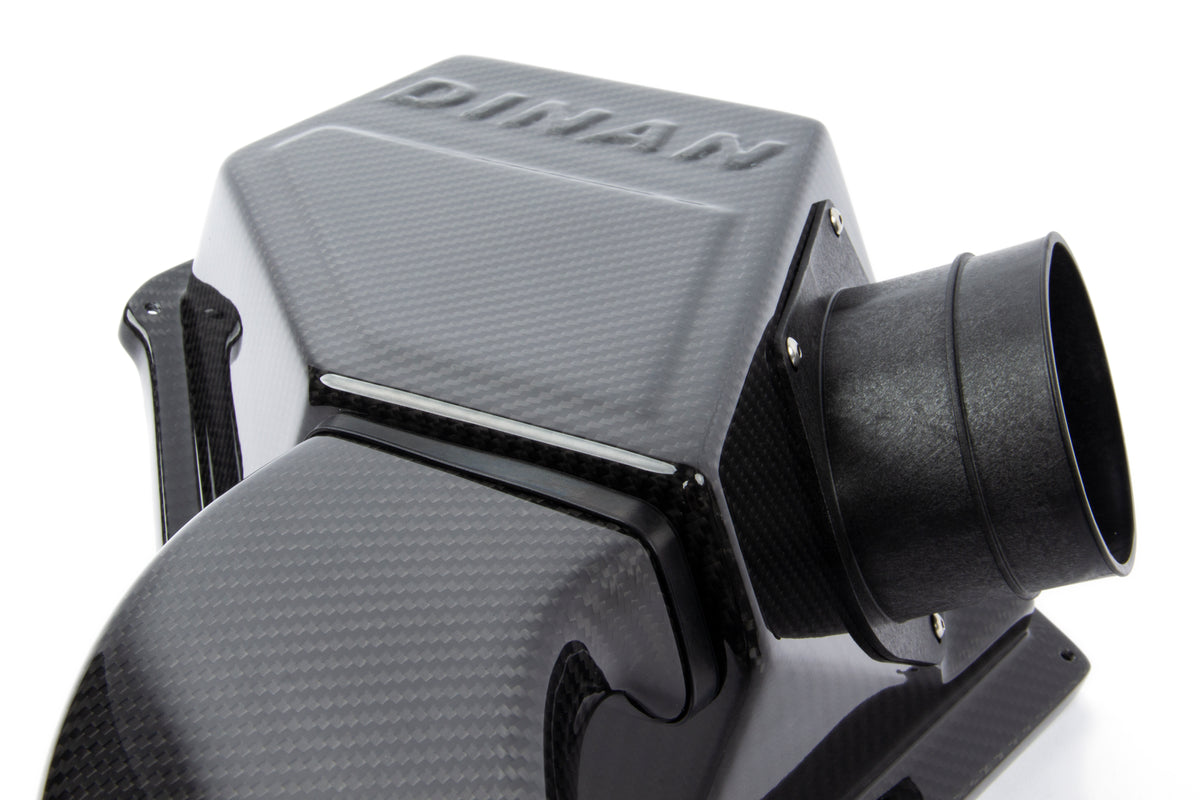

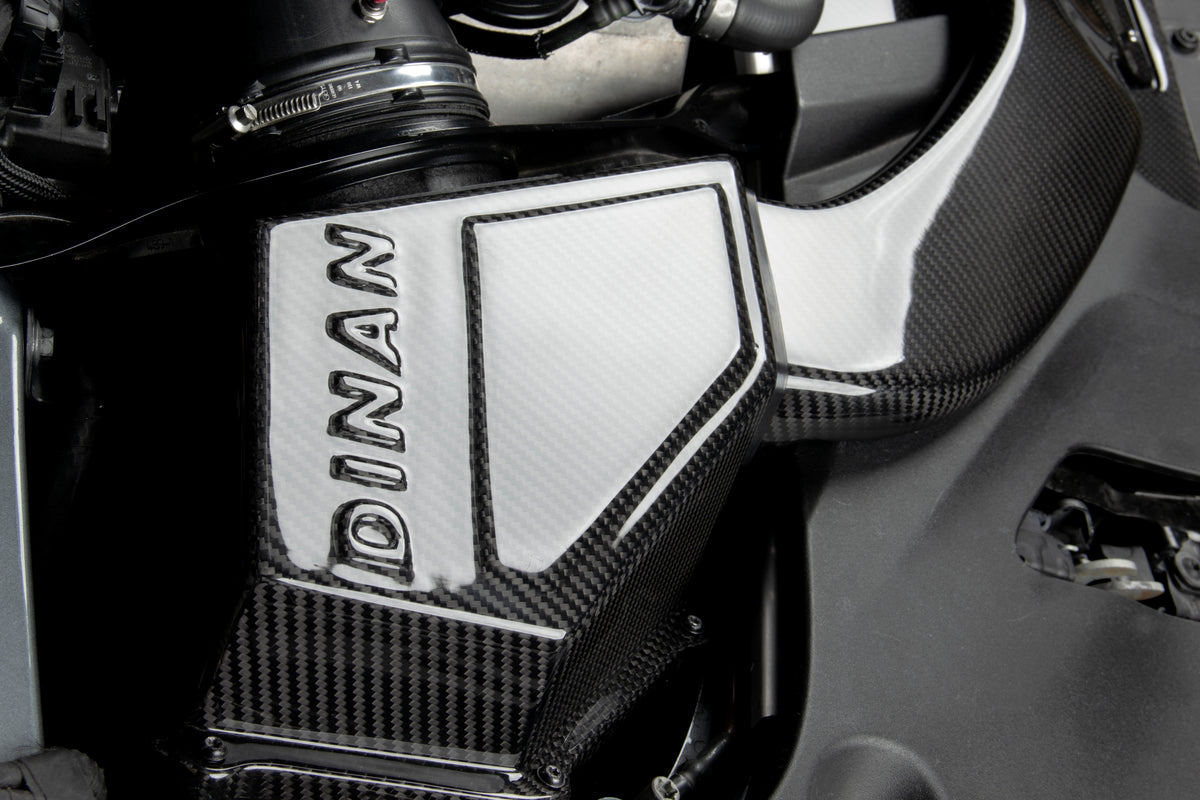

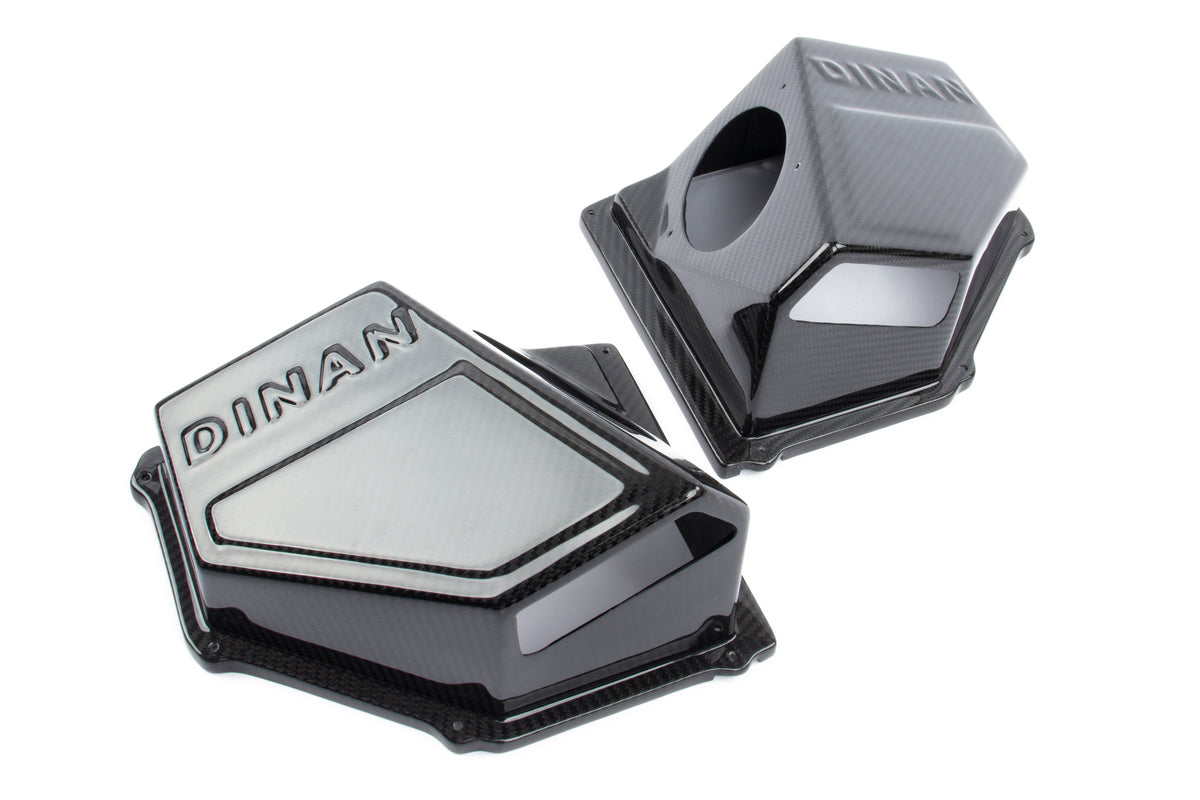

• Larger volume air boxes (31% larger than stock) that completely seals allowing an increased volume of air to be utilized.

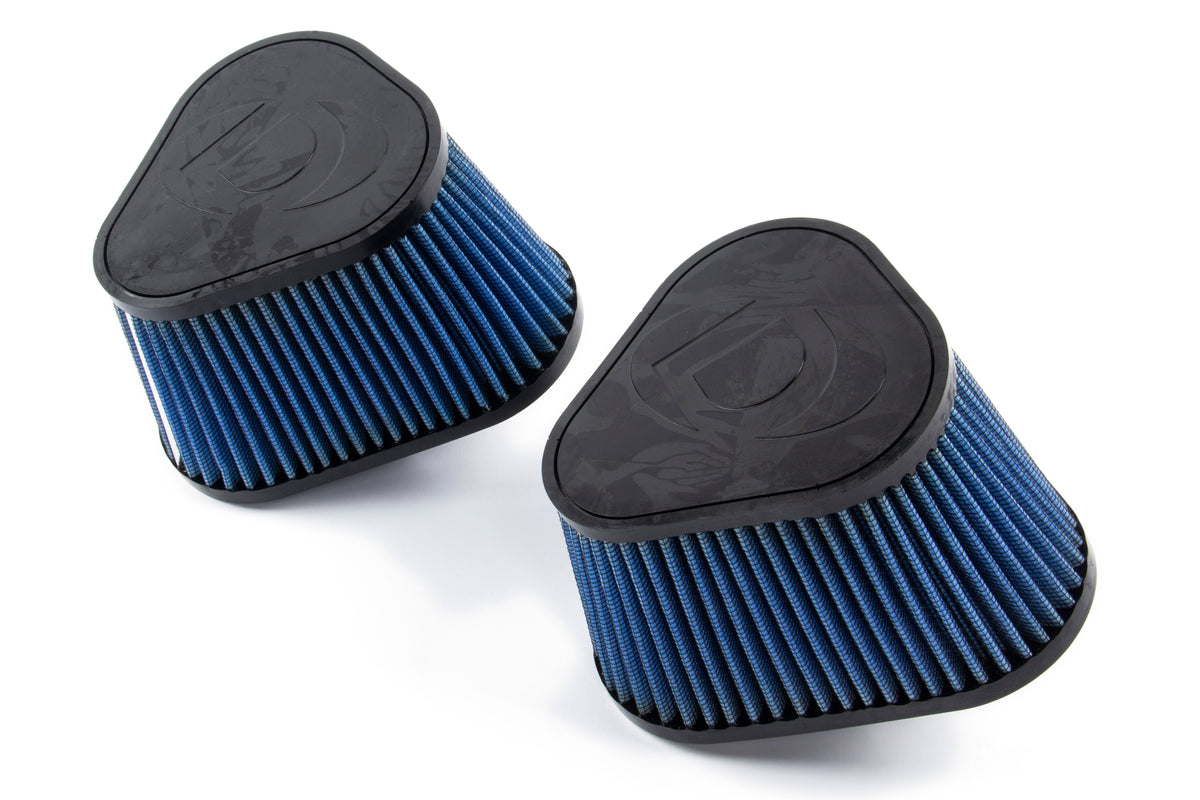

• 35% increase in filter area (stock: 56.5in², Dinan: 80in² per side) for optimum flow.
• Bolt-on installation.

Specifications

• Brand: Dinan
• Category: Air and Fuel Delivery
• Dinan Point Value: 3
• Emission Code: 7
• Labor Time (Hours): 2
• part type: Air Intake Kit
• Product Type: Cold Air Intake
• Sub Category: Service Kits
• Warning: California Proposition 65
• Warranty: The remainder of vehicle factory limited warranty (up to 4yr/50k mi) or 2yr/unlimited miles, whichever is greater

Vehicle application overview

Confirm trim, engine, and installation requirements before ordering.

• 2018–2023 BMW M5
• 2019–2023 BMW M5
• 2022 BMW M5
