Factor 55 FlatLink E Expert 00080-05 Folding Winch Shackle Mount, Silver

EXPERT USE WARNING: The FlatLink E opening permits a shackle to shift and rotate into a dangerous side-loading condition, especially during momentary slack. The operator must monitor shackle orientation and keep forces in line. Do not side-load the shackle. Factor 55 recommends the standard FlatLink for recreational off-road users.

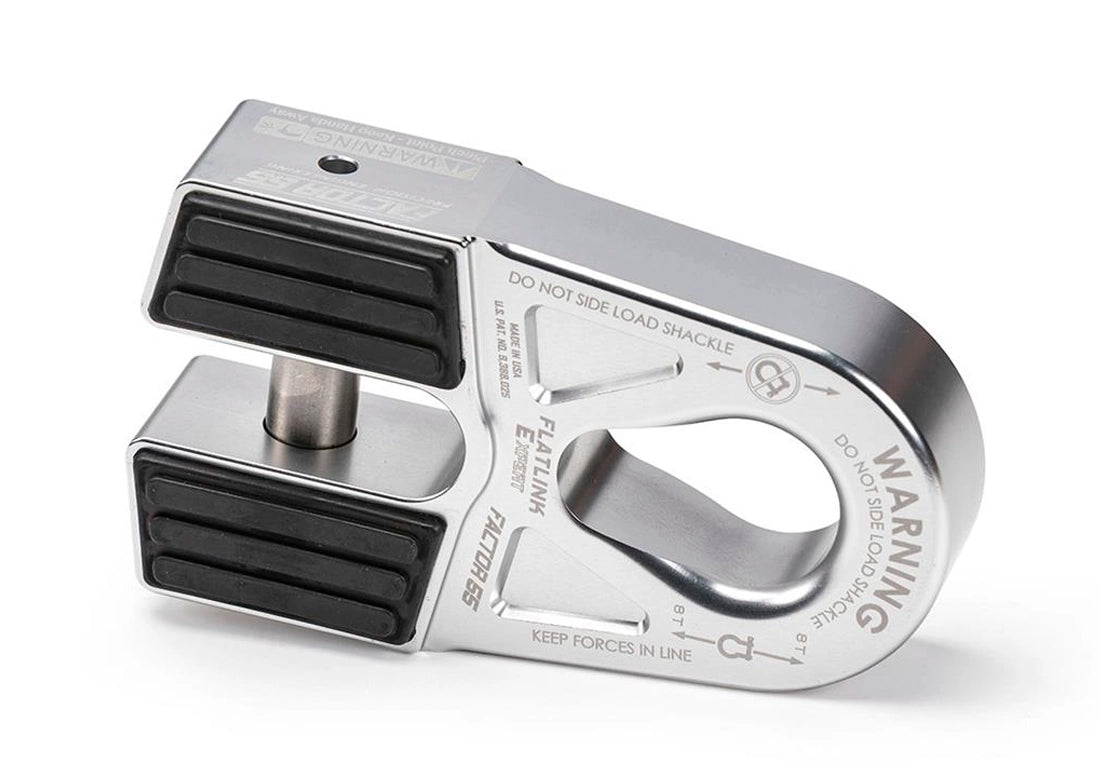

Factor 55 FlatLink E Expert 00080-05 is the silver folding winch line shackle mount, machined from 6000-series aluminum with protective EPDM rubber guards.

Compatibility and rating

• For steel cable or synthetic winch rope up to 3/8 inch in diameter. The rope eye is retained by a 5/8-inch titanium double-shear pin and internal snap ring; no splicing is required.
• The large pear-shaped opening accepts the pin or bow end of common 3/4-inch screw-pin shackles and compatible soft shackles up to 3/4 inch. Confirm dimensions, orientation and ratings before use.
• Manufacturer stated maximum load rating: 16,000 lb. This is distinct from the manufacturer's ultimate failure test value; the complete setup must remain within every component's rating.
• Folds to less than 1.75 inches thick. Check clearance with the actual fairlead, bumper and mounting equipment.

Package contents

One silver FlatLink E Expert assembly with titanium retaining pin, internal snap ring and EPDM rubber guards. Shackle, rope, fairlead, winch and vehicle are not included. No vehicle year, make or model fitment is claimed.

California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
