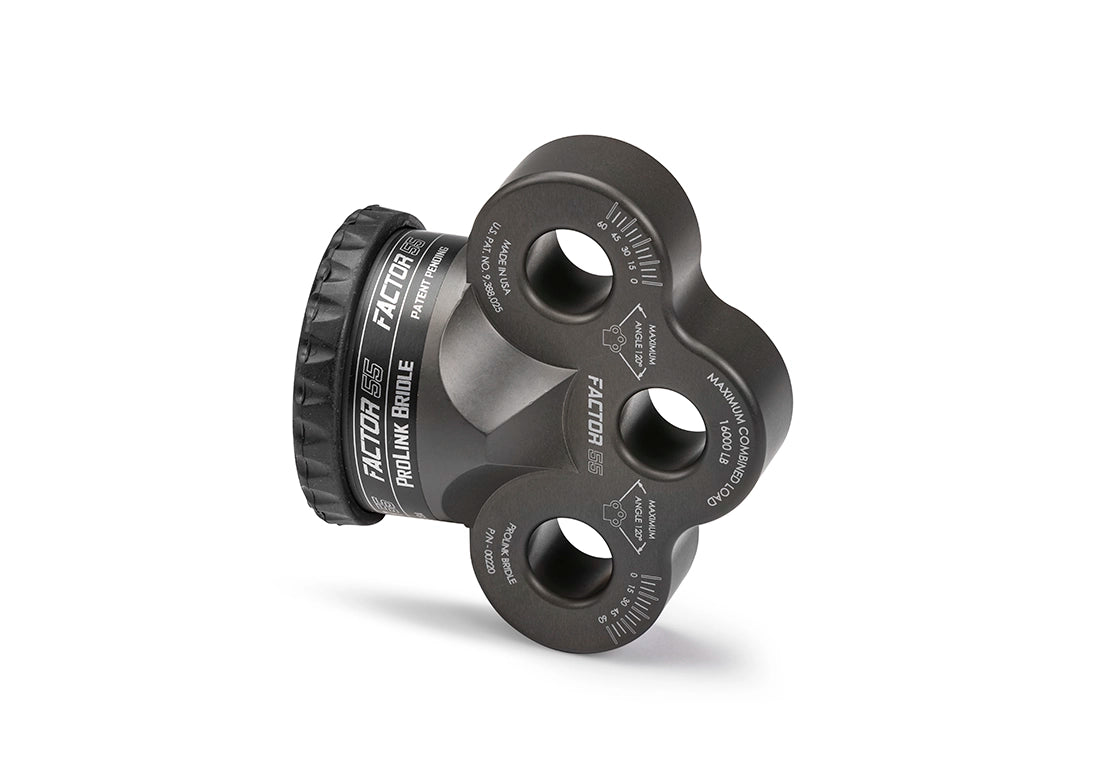

Factor 55 ProLink Bridle 00220-06 Three-Point Winch Shackle Mount, Gray

Factor 55 ProLink Bridle 00220-06 is a gray commercial shackle mount designed primarily for towing applications. Its three dedicated mounting holes support correctly configured fixed-length bridle links at the outside holes or a conventional single shackle at the center hole.

Compatibility and load limits

• For steel cable or synthetic winch rope up to 3/8 inch in diameter. The rope eye is retained by a 5/8-inch titanium double-shear pin and internal snap ring.
• Maximum combined working load: 16,000 lb, across the mount. This is not a separate 16,000 lb allowance for each hole.
• Follow the load directions, angle scale and maximum 120-degree angle markings engraved on the mount. Use compatible rated shackles and rigging, monitor orientation and avoid shackle side loading.
• The EPDM rubber guard cushions stowage against a compatible hawse or roller fairlead. Confirm dimensions and clearances of the complete setup.

Package contents

One gray ProLink Bridle assembly with titanium retaining pin, internal snap ring and EPDM rubber guard. Shackles, bridle links, ropes, winch, fairlead and vehicle are not included. No vehicle year, make or model fitment is claimed.

California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
