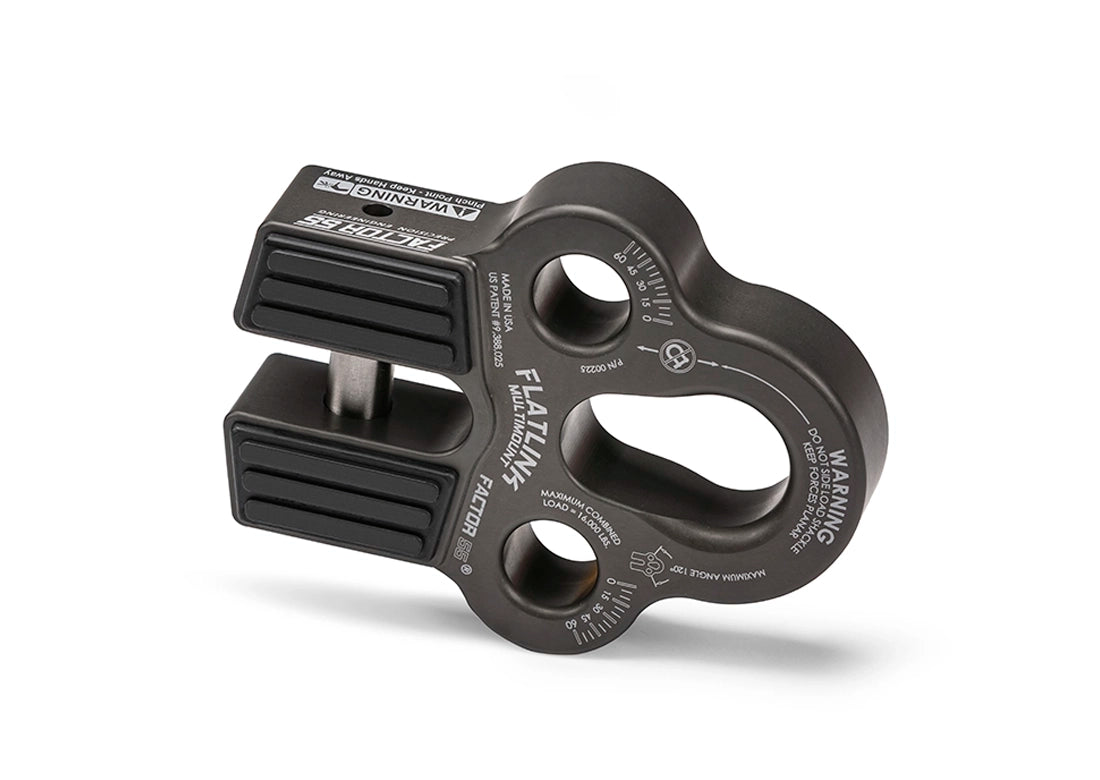

Factor 55 FlatLink MultiMount 00225-06 Winch Shackle Mount, Gray

Factor 55 FlatLink MultiMount 00225-06 is the gray folding mount for advanced bridle and off-camber winching. Two outer shackle attachment holes support appropriately configured multiple pull directions; the center opening supports a conventional center pull.

Compatibility and load limits

• For steel cable or synthetic winch rope up to 3/8 inch in diameter, with a 5/8-inch titanium double-shear retaining pin. Confirm rope-eye and mount clearances.
• The oval center opening accepts the pin or bow end of common 3/4-inch screw-pin shackles and the pin end of common 7/8-inch and 1-inch screw-pin shackles. Confirm dimensions and ratings before use.
• Maximum combined load across the mount: 16,000 lb. Do not apply this as a separate allowance for each hole.
• Follow the engraved load directions, angle scales and maximum 120-degree angle markings. Keep forces in line and do not side-load a shackle.
• Folds to approximately 1.75 inches thick. EPDM rubber pads cushion stowage; check the actual fairlead, bumper and bracket clearances.

Package contents

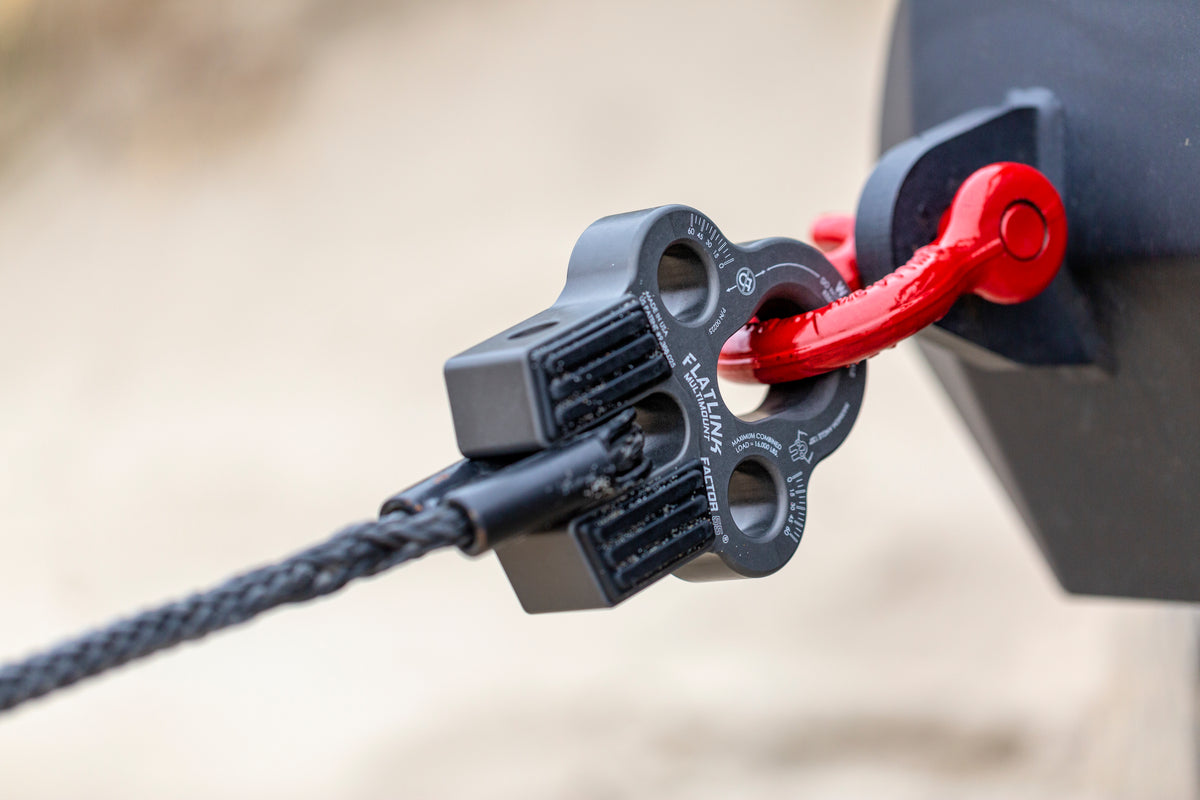

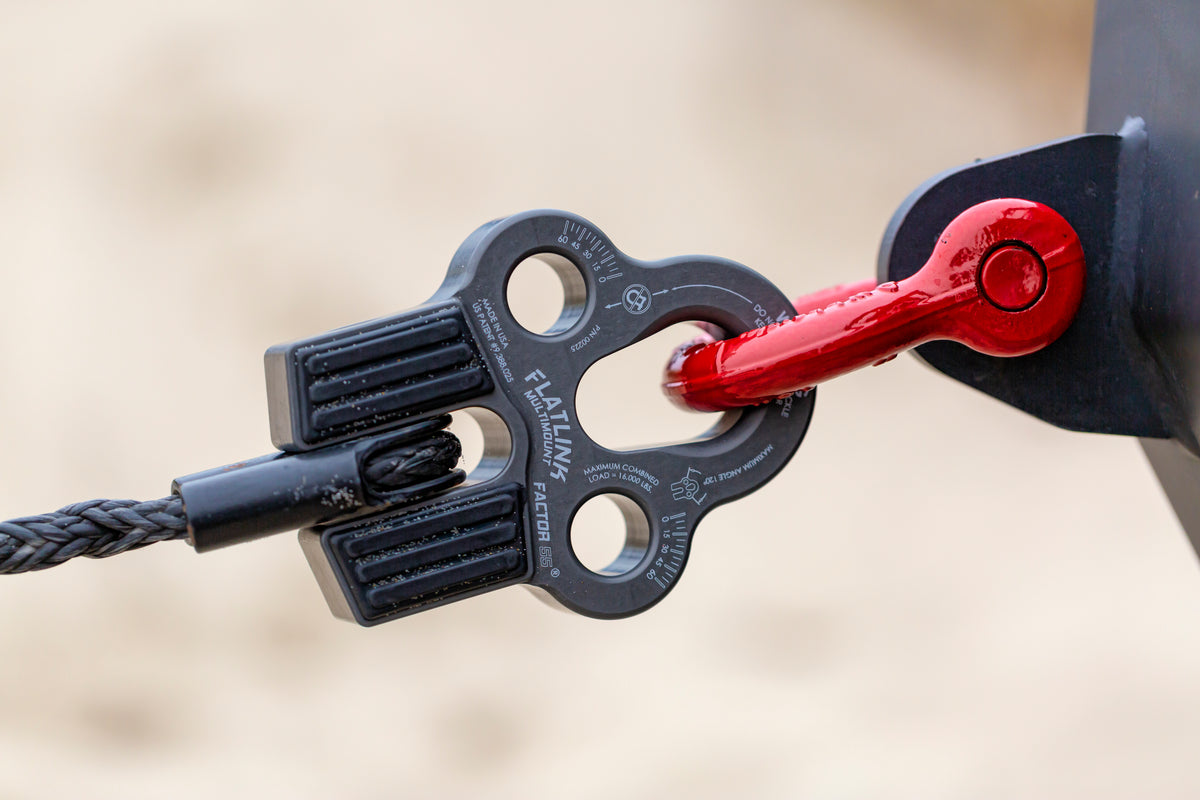

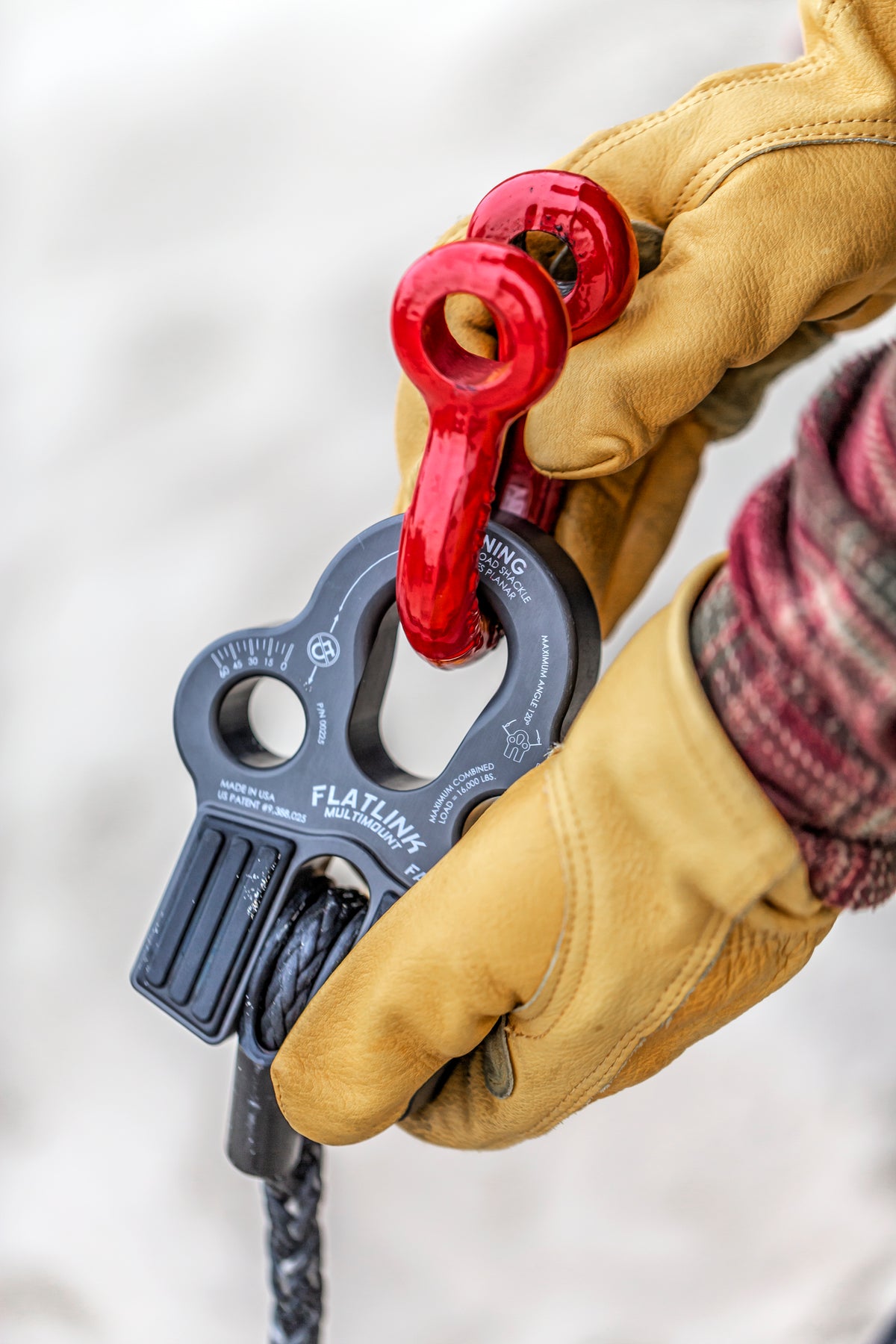

One gray FlatLink MultiMount assembly with titanium retaining pin and EPDM rubber pads. Shackles, bridle links, rope, winch and fairlead are not included. Additional photos show a gray mount as a rigging demonstration; the supplied mount is gray. No vehicle year, make or model fitment is claimed.
