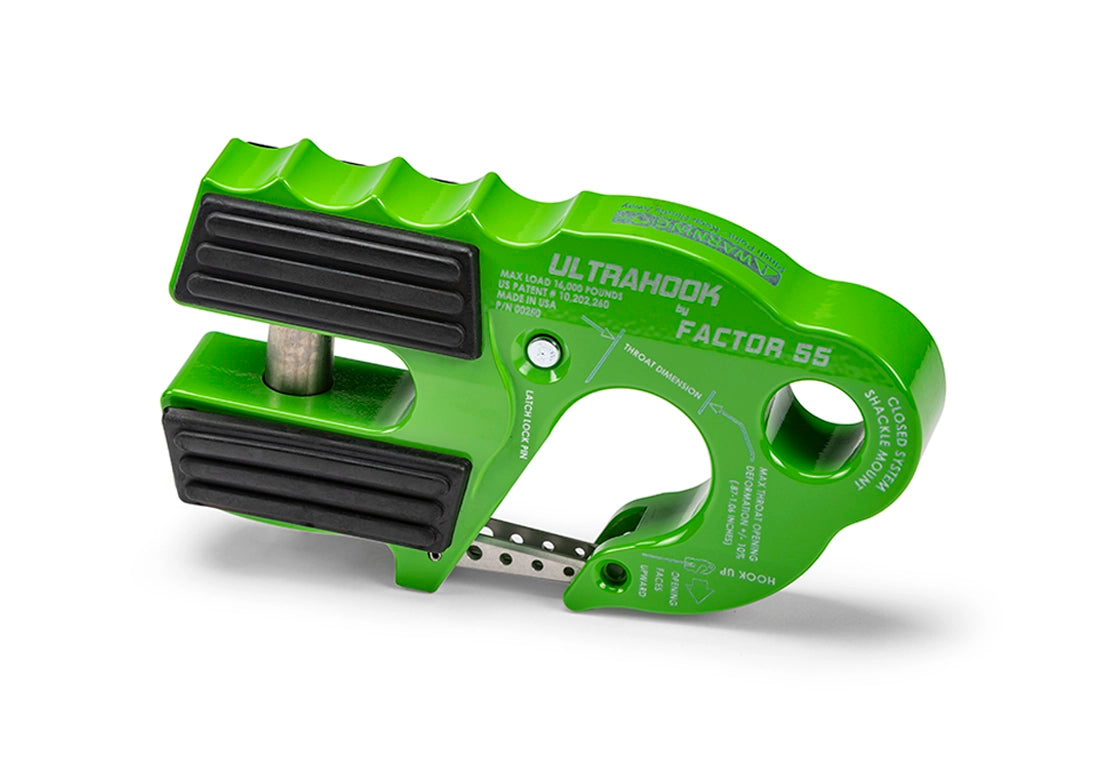

Factor 55 UltraHook 00250-08 Winch Hook with Shackle Mount, Green

Factor 55 UltraHook 00250-08 is the green winch hook with an integrated shackle-pin mounting hole, safety latch and secondary latch-lock pin. The lock pin stores in the hook body and can be inserted at the hook tip to secure the latch.

Compatibility and use

• For steel cable or synthetic winch rope up to 3/8 inch in diameter. A 5/8-inch titanium double-shear retaining pin accepts a suitable existing rope/cable eye without splicing.
• The shackle mounting hole accepts the pin of a common 3/4-inch screw-pin shackle or a compatible soft shackle up to 1/2 inch. Confirm dimensions and ratings of the complete setup.
• Manufacturer stated maximum load: 16,000 lb. Ultimate test strengths for the hook opening and shackle hole are not working load limits.
• Follow the engraved Hook Up orientation and load directions. Inspect the hook throat against its engraved maximum-opening/deformation limit and follow the manufacturer instructions.
• Machined from 7000-series aluminum with EPDM rubber pads to protect the fairlead during stowage. Check actual mounting and fairlead clearances.

Package contents

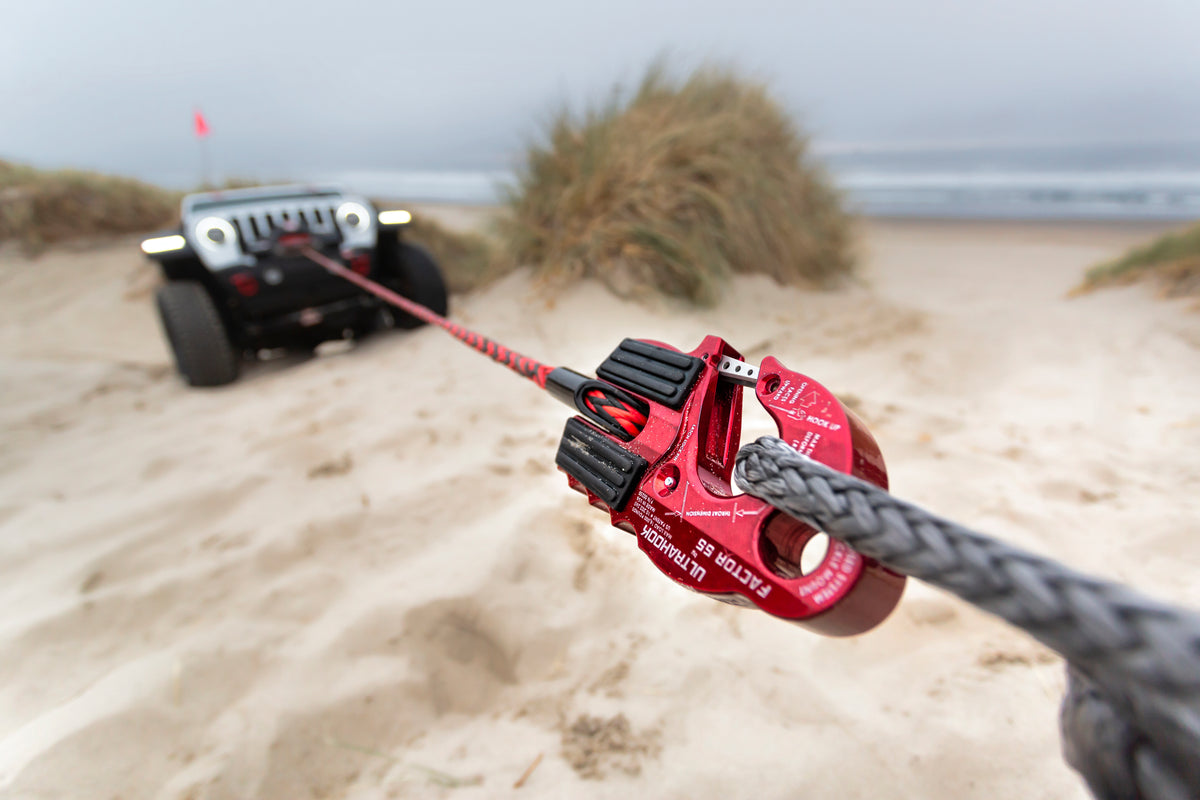

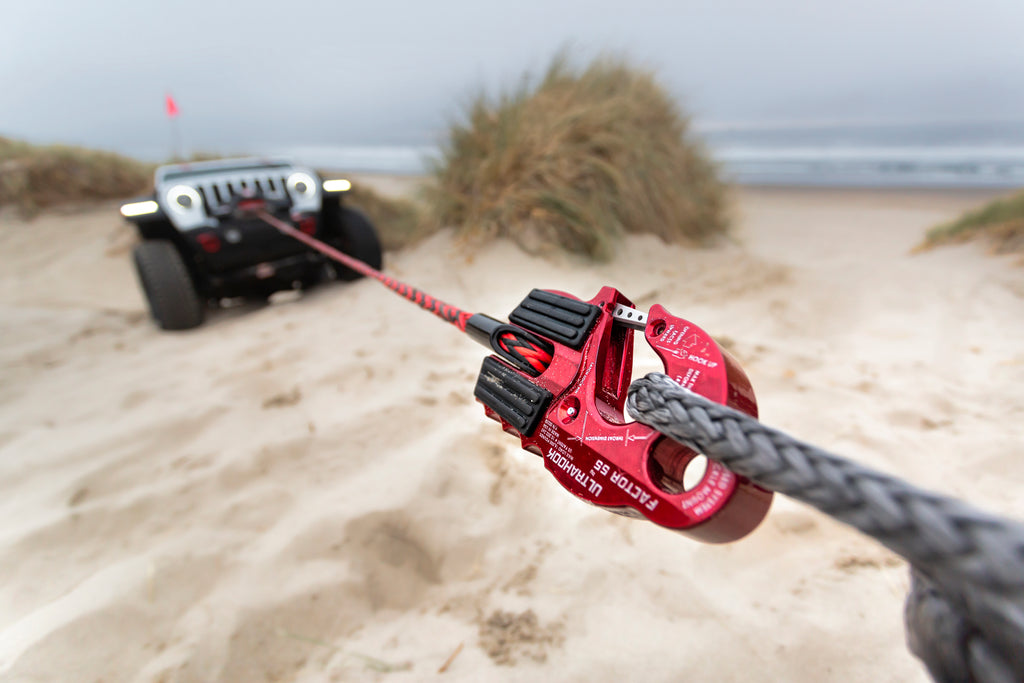

One green UltraHook assembly with safety latch, latch-lock pin, titanium line-retaining pin and EPDM rubber pads. Shackles, rope, winch, fairlead and vehicle are not included. The additional red installation photo is illustrative; the supplied hook is green. No vehicle year, make or model fitment is claimed.

California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
