Factor 55 00375-05 Flat Splicer Folding Synthetic Rope Shackle Mount — Silver

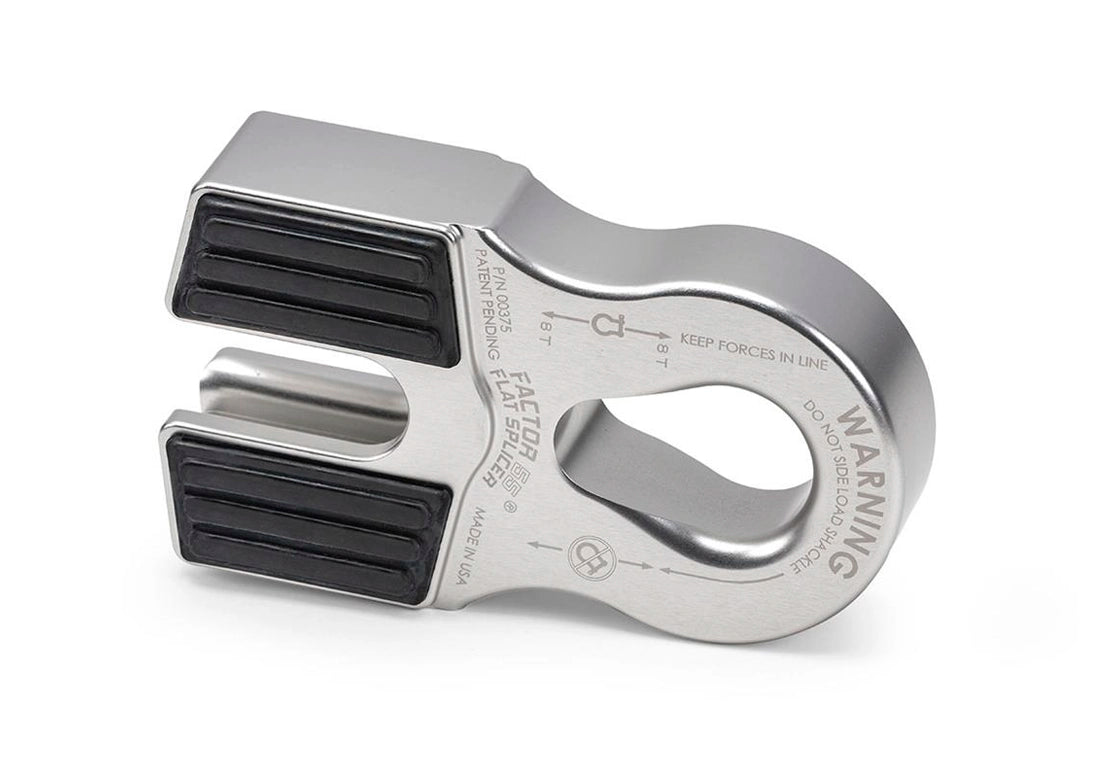

One Silver Factor 55 Flat Splicer folding shackle mount with integrated EPDM rubber pads. It is spliced onto a compatible synthetic winch rope and can fold against a suitable fairlead for compact stowage. Supplied color: Silver.

• For synthetic winch rope only, up to 1/2 inch in diameter. Do not use steel cable.
• Requires synthetic rope splicing knowledge. Factor 55 recommends a locking Brummel or long bury splice; follow the rope manufacturer's construction, splice and installation requirements.
• The completed assembly's working load limit depends on the rope, its diameter, the splice and rigging. Observe the mount's engraved 8T load markings and every connected component's lower limit.
• Connects to the pin or bow end of common 3/4-inch screw-pin shackles, and the pin ends of 7/8-inch and 1-inch screw-pin shackles. Confirm actual connector dimensions and ratings.
• Machined aluminum rope passage helps shield the captured rope from impact, abrasion and UV exposure when stowed with the groove toward the winch.
• Approximately 1.75 inches thick when folded. Verify actual fairlead and vehicle clearance; keep fingers clear of folding pinch points.
• Keep forces in line and do not side load the shackle. Follow the engraved warnings and inspect the rope, splice and mount before use.

Includes one mount assembly with rubber pads. Rope, shackles, winch, fairlead and vehicle are separate. Confirm rope construction, splice suitability and installation instructions. No specific vehicle year or trim fitment is verified.
